BLISSVILLE
- LONG ISLAND CITY |

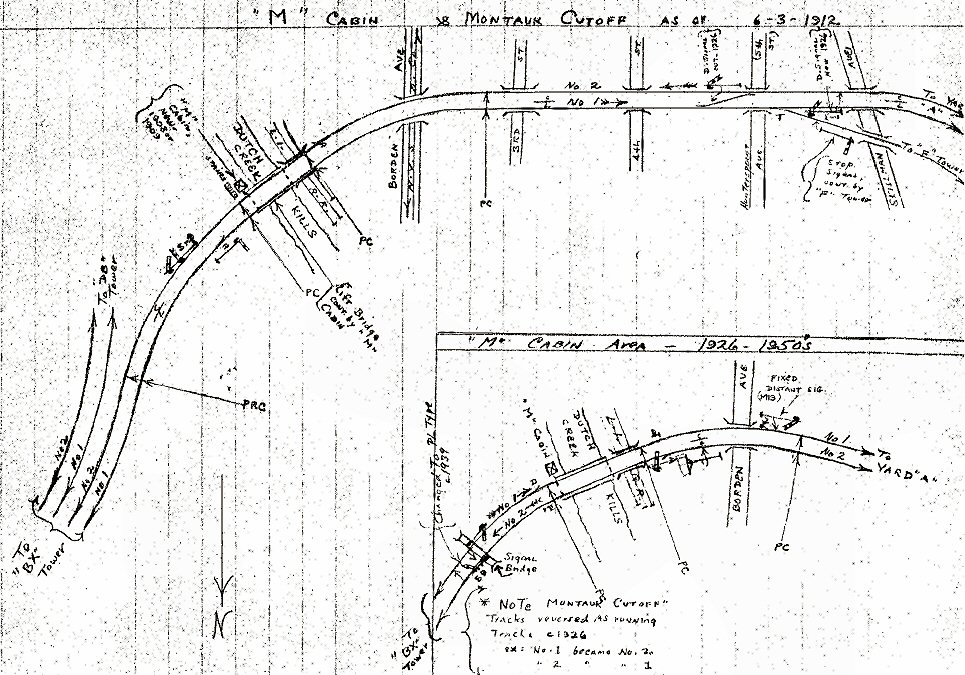

Emery map "M" Cabin 6/03/1912 at the Montauk
cutoff over the Dutch Kills Archive: Dave Keller |
Emery map "BX" Interlocking Greenpoint Yard
appeared to be the forerunner of Blissville yard, only a whole lot
smaller - Archive: Dave Keller |
"

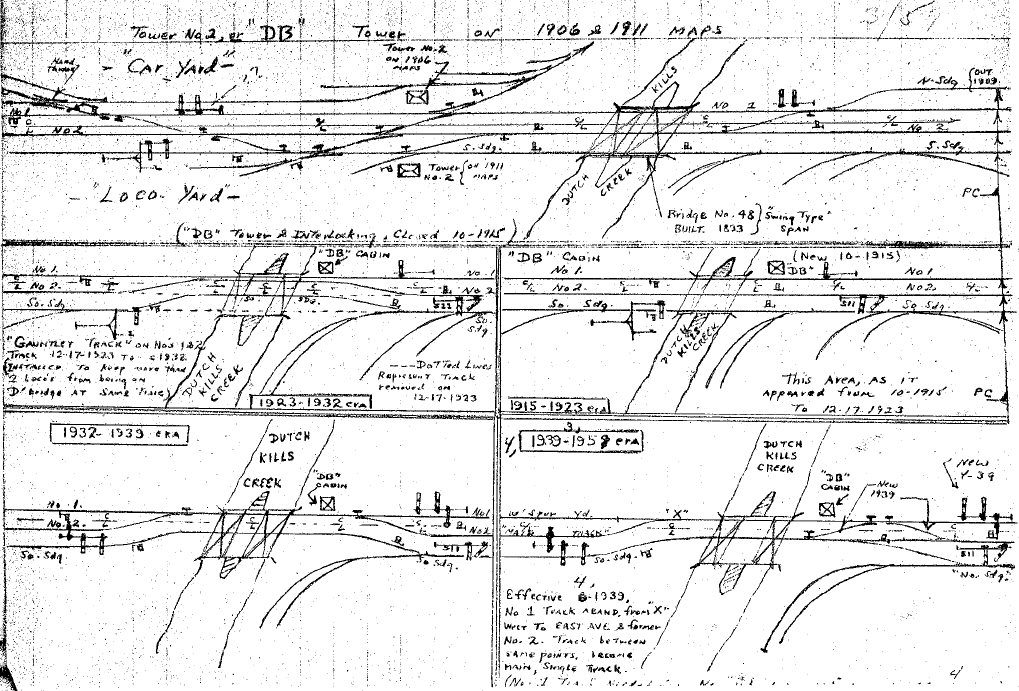

"DB" Tower/Cabin controlled the drawbridge
(swing bridge)
over the Dutch Kills.
Emery map Archive: Dave Keller |

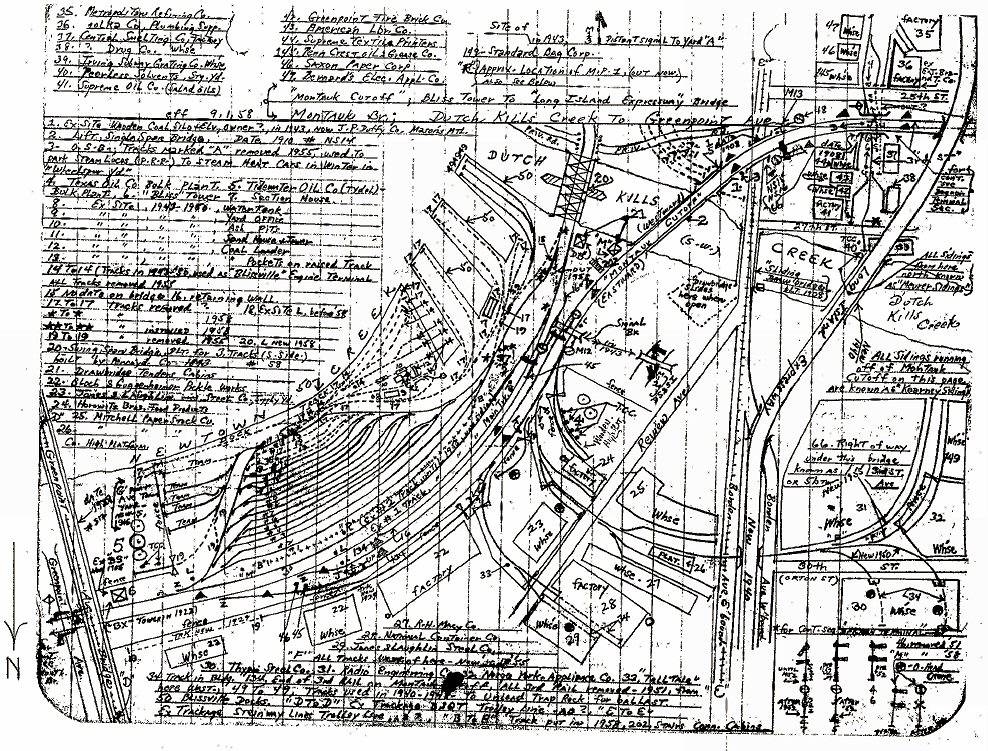

Emery map - Dutch Kills to Greenpoint Ave
9/1958
Archive: Dave Keller |

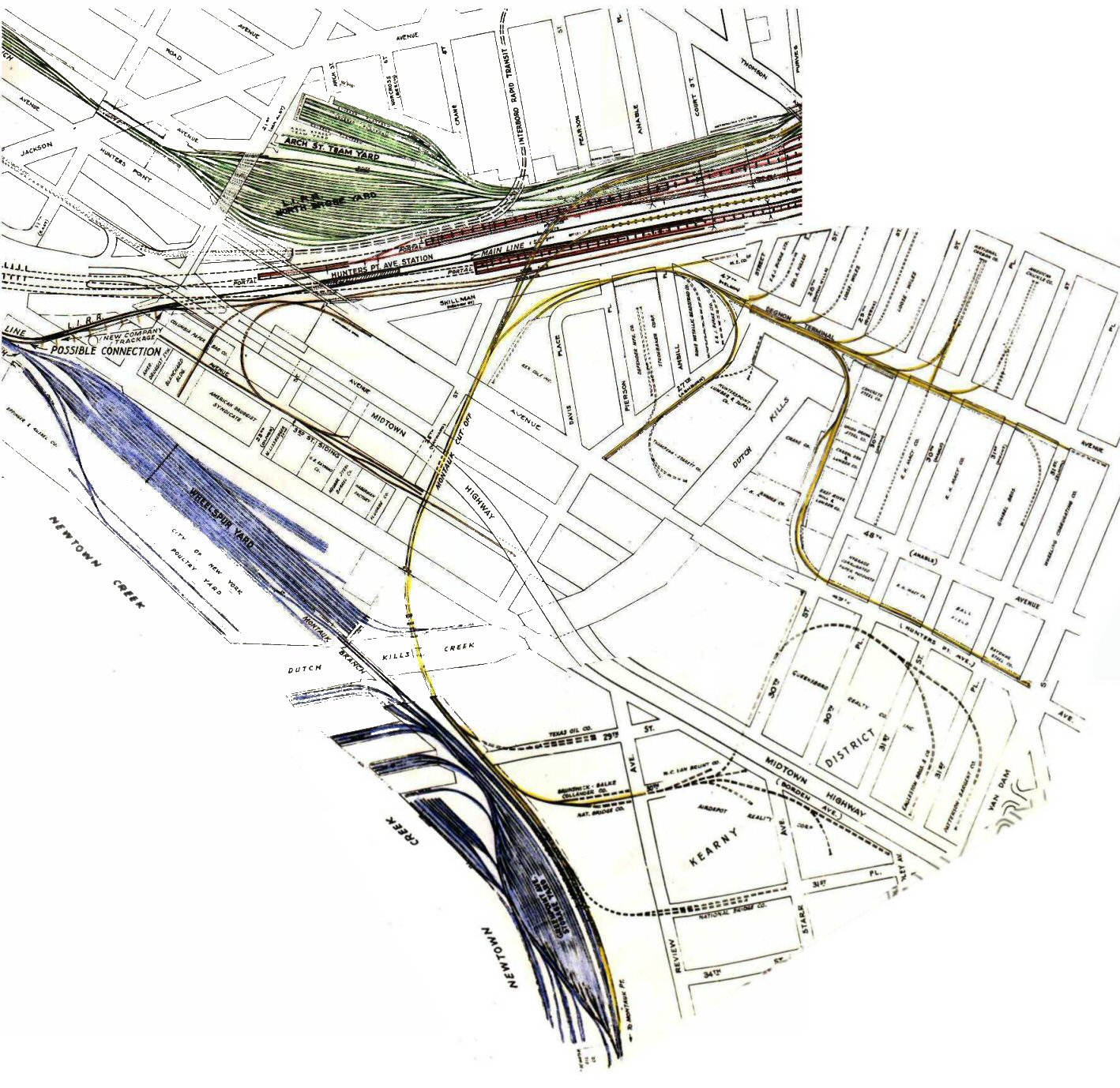

Arch St. Team Yard
Degnon Terminal
Montauk Branch Cut-off
Wheelspur Yard
Dutch Kills Creek
Newtown Creek - 1946 |
Kearney Siding and
Blissville yard with pickle cars on the Block and Guggenheimer siding
Source: New York State Archives Creator: Fairchild Aerial Surveys, Inc. New York office.
Jones and Laughlin Steel, N.Y. Aerial view of part of Long Island City 6/29/1947
|

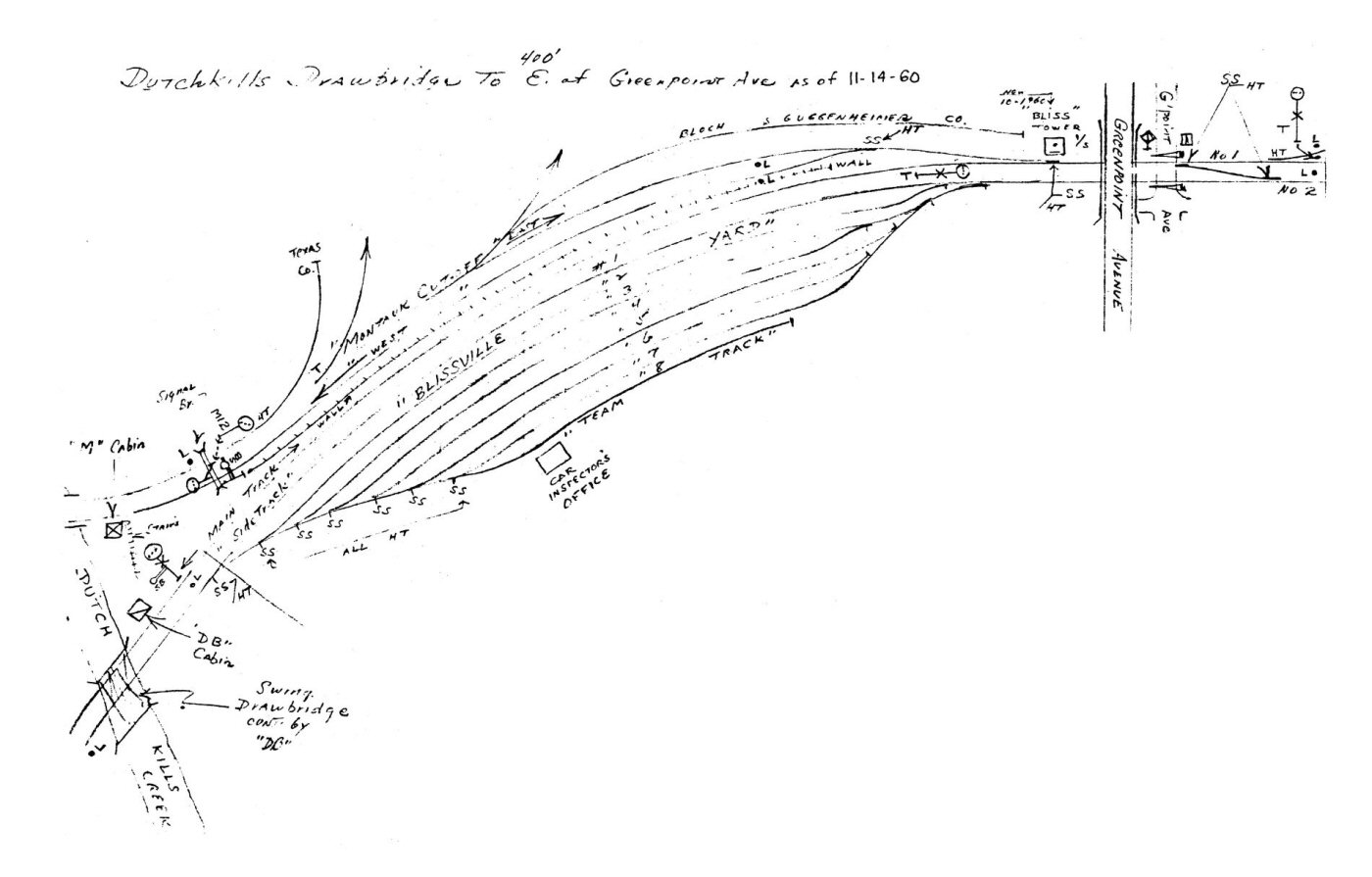

Emery map Dutch Kills to Greenpoint Ave
11/14/1960 Archive: Dave KellerNote:
Emery indicates later Blissville Freight station
as Car Inspector's Office on this map |

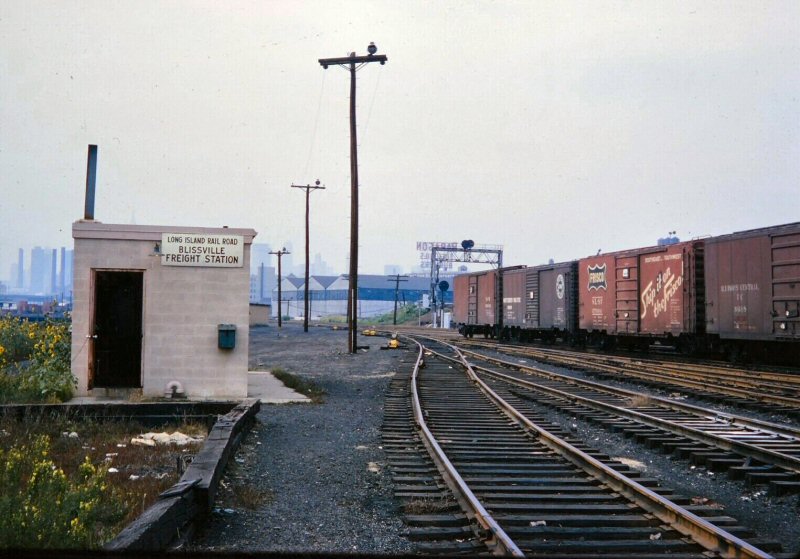

Blissville Freight Station View NW 1963
|

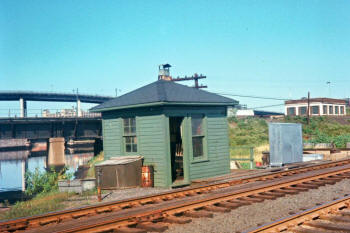

DB Cabin- View E Freight Station at far right
5/1963 Photo/Archive: Richard Makse |
BLISS Yard 5/1963 zoom
Photo/Archive: Richard Makse |
Blissville Freight Station 1965
Archive: John Scala |
|

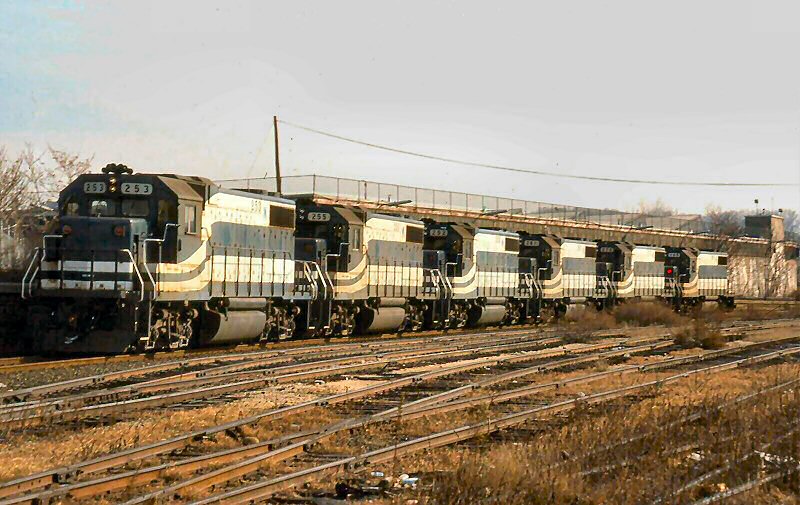

Blissville Yard - GP38-2 lashup #253, 255, 252, 261, 270, 265 WB -
12/30/1988 Archive: Dave Keller
|
Blissville Yard - Google Earth 2023 |

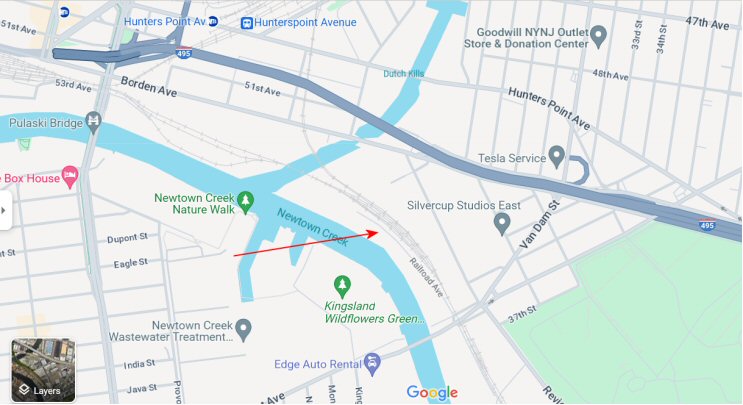

Blissville Yard - Google map 2023 |
Tracks between Bliss and Dutch Kills
drawbridge originally known as the Montauk branch, were classed as
"Secondary Track C" per G.O. #503 dated 8/12/1958 Research:
Jeff Erlitz |
C
Secondary was the track that went from Bliss to LI City on the Lower
Montauk. Just west of where Bliss stands is where the Montauk Cut-off
secondary (MCS) trails into Bliss, and farther down is the Dutch Kills
drawbridge. From Bliss you could use the C Secondary to get to LI City or
HAROLD and/or old Yard A via the Montauk Cut-off secondary. After Bliss
closed, JAY would block with the Section B dispatcher use of the
secondary's and they would give authority to a train by use of a "S Card".
After the decision to give the Lower Montauk to the NYAR, the use of the S
Card was discontinued, the MCS was abandoned after Cabin M Drawbridge and
it became NYAR Secondary track 1 and 2 east of Bliss. Not sure what they
call C Secondary (just NYAR Secondary?) now but it does get used for the
NYA to access their new Wheelspur yard. Info: Krispy 12/2023
|

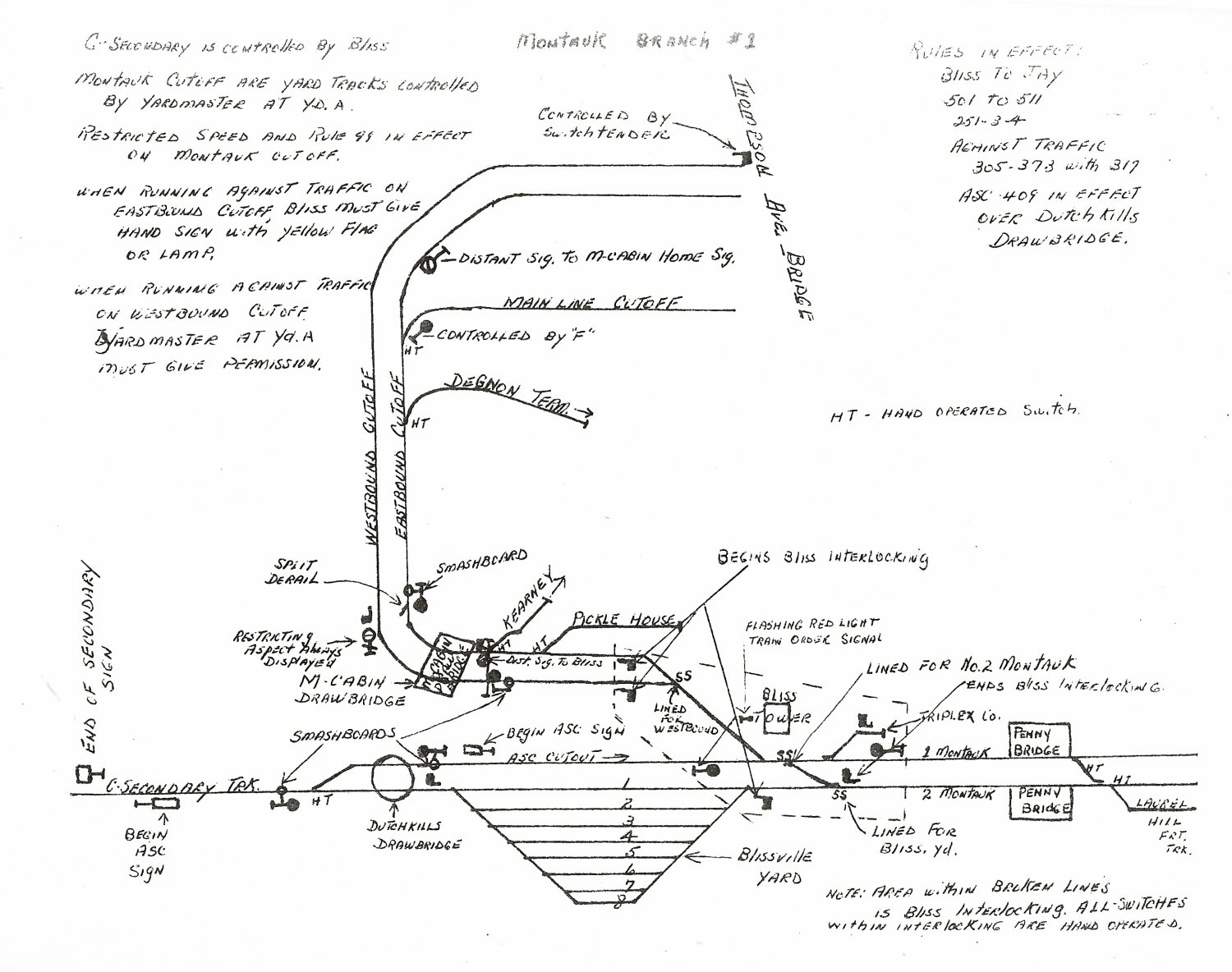

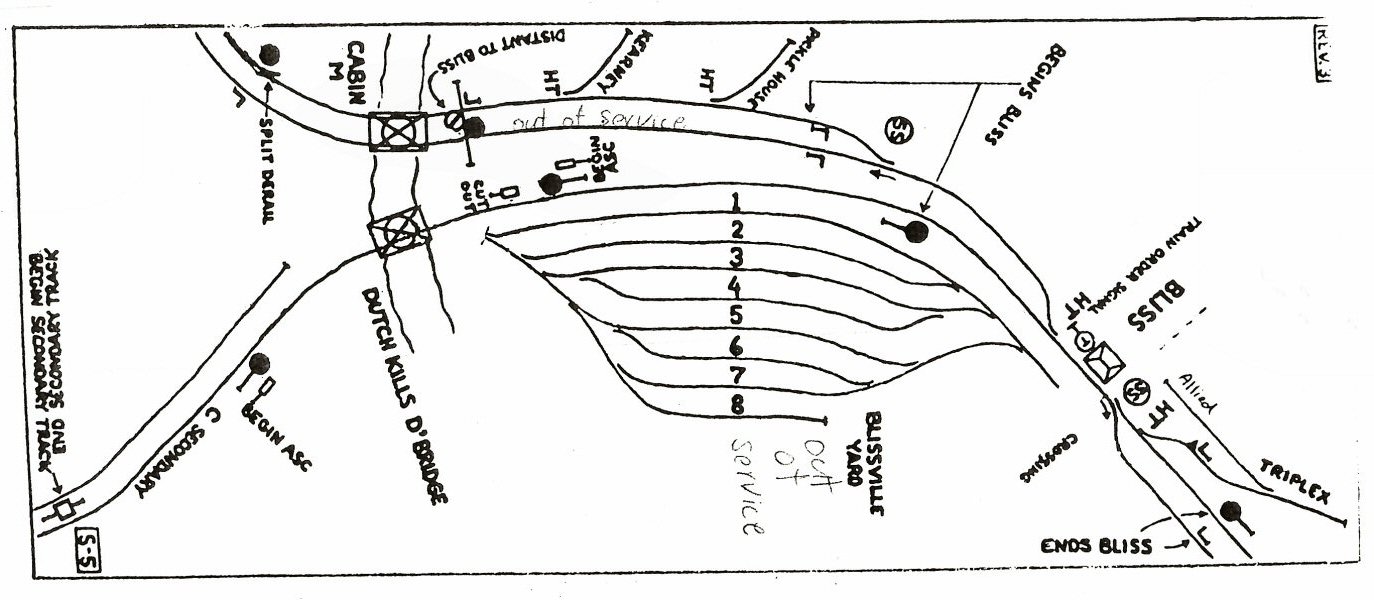

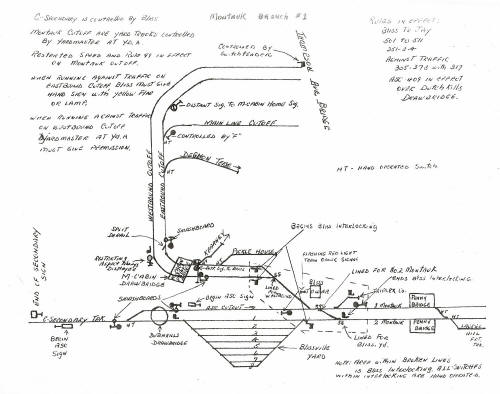

Blissville Yard 1978 - Physical Characteristic Map R. M. Todaro Archive:
Joe Vila |
|
|
Form S used for clearance to either C
secondary track between the former Bliss Interlocking, and LI City, or
using the Montauk Cutoff Secondary track which connects to the back end of
Sunnyside Yard from the Lower Montauk Branch. Archive: Paul Strubeck

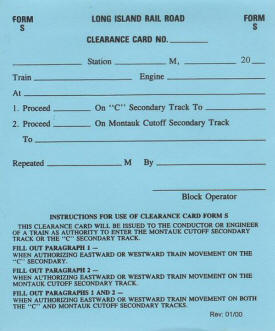

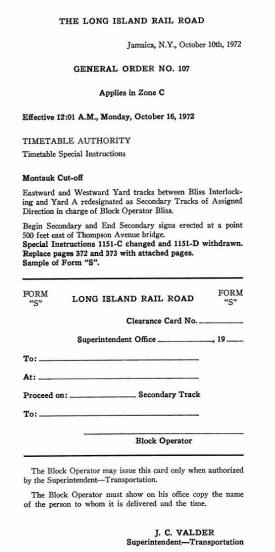

Left: G.O. no.107 - Montauk Cut-off
Form S Clearance Card Archive: Jeff Erlitz
|

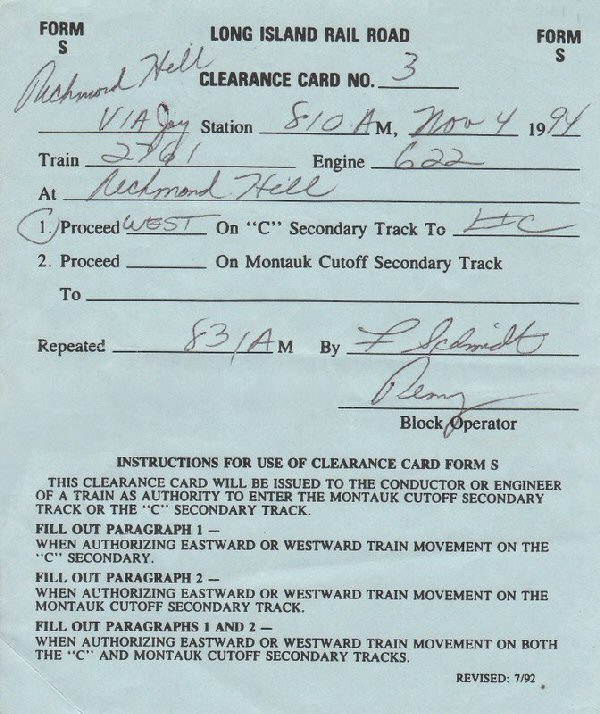

Form S usage 11/04/1994
Archive: Neil Feldman |
|

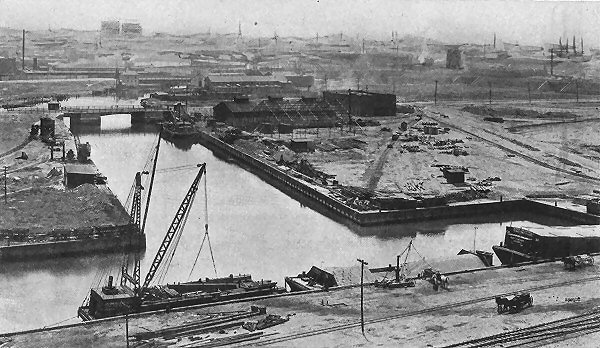

Dutch Kills during construction |

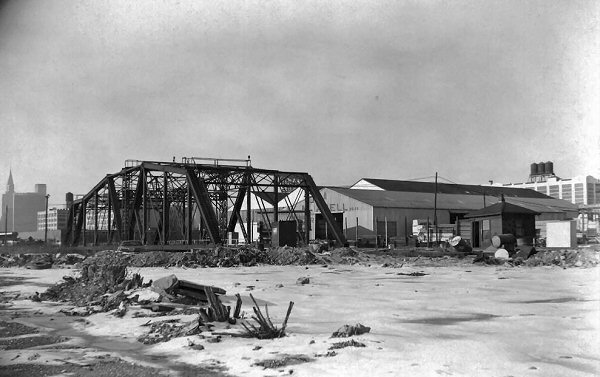

"DB" cabin and Dutch Kills draw (swing) bridge
(View NW) - 12/25/70 (Dave Keller photo
and archive) |

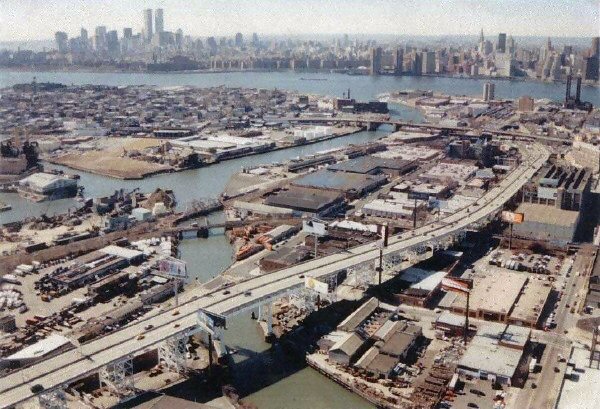

Dutch Kills leading into Newtown Creek
View SW 2001 |

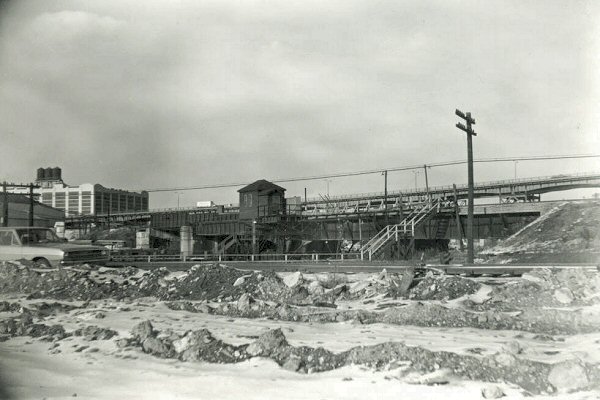

M Cabin, Newtown Creek 12/1970
Archive: Dave Keller |

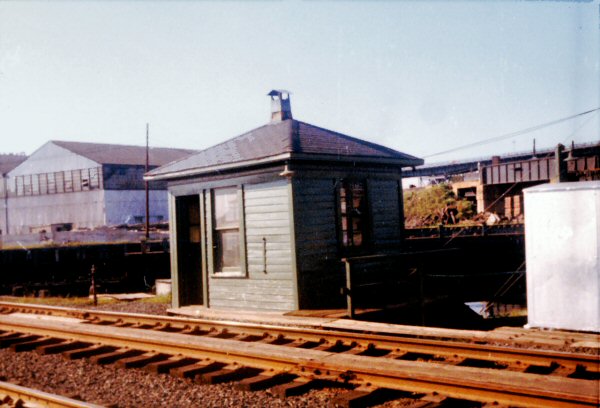

DB Cabin 08/10/1963 was just painted. There was a wooden walkway to Cabin M. The bridge tender (a B&B employee) stayed at Cabin M when the bridges were opened since Cabin M had creature comforts. Depending on the trick, the bridge tender usually drove down to BLISS and played cards with the operator until there was an imminent movement or a boat whistled for the bridge. Cabin M had 24 hour coverage.
Photo: Richard F. Makse |

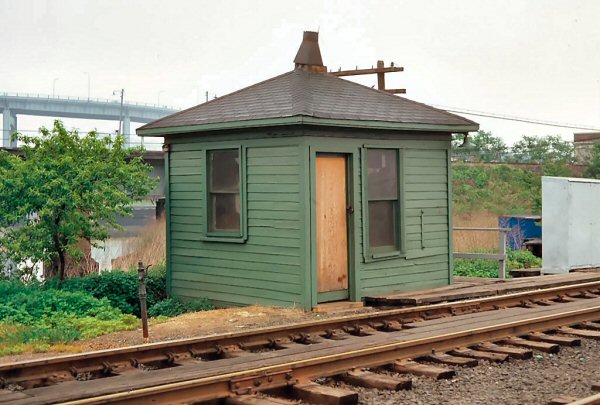

DB Cabin 5/16/1976
Archive: Henry Wagner |

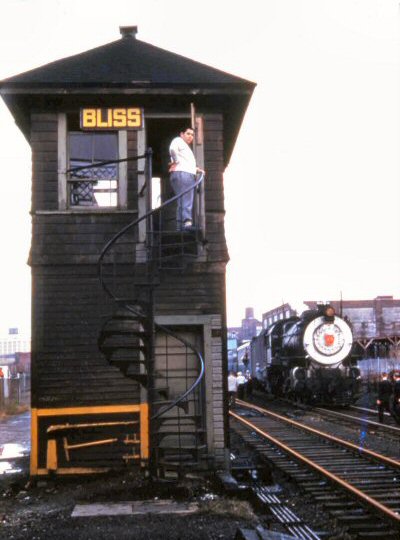

LIRR Block operator Rosario Zambuto stands on the landing outside
the old BLISS tower at Blissville, L. I. City, NY as G5s #35, seen
at the right, makes it last run as a railfan extra on October 16, 1955.
Note the spiral staircase to access the upper portion of the tower!
View is looking east. Art Huneke photo, Dave Keller archive
|

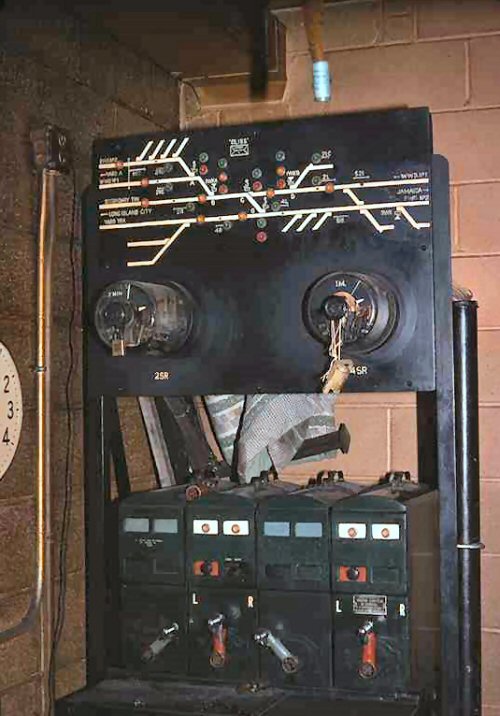

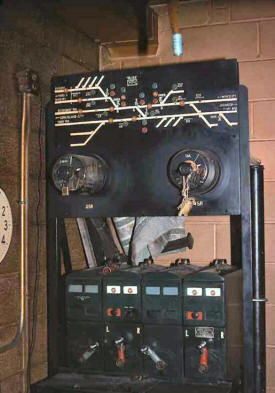

Union Switch & Signal model TC
interlocking machine and model board at "Bliss" tower, LI City
12/29/1977 |

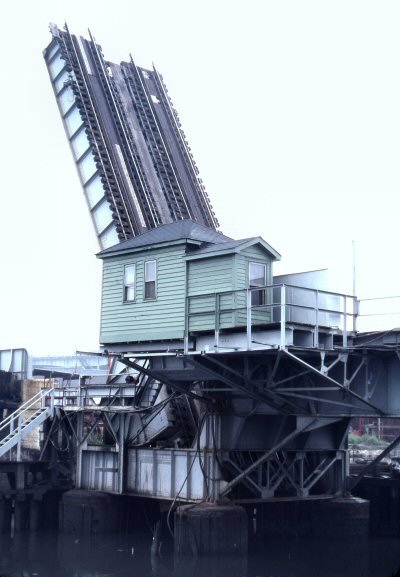

M Cabin with lift bridge
in open position over Dutch Kills along Montauk cut-off west
of Blissville yard
Long Island City
,
NY
5/16/1976
Photo: Jeff Erlitz Archive: Dave Keller
|

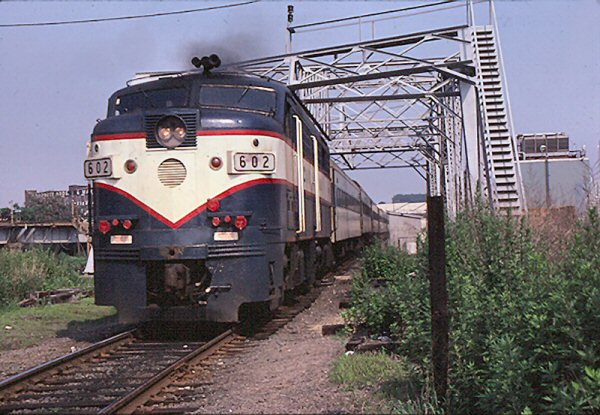

LIRR FA #602 Newtown Creek
west 6/1981
Phil Goldstein photo, Dave Keller archive |

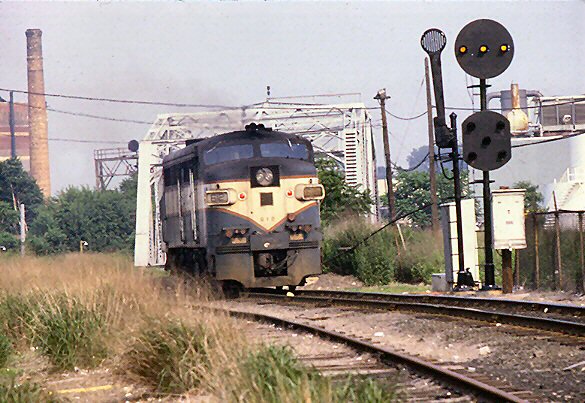

LIRR FA #612 Newtown Creek
east 6/1981
Phil Goldstein photo, Dave Keller archive |

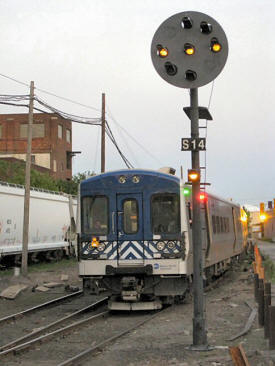

Signal S14 end of secondary on Track 2 just east of Greenpoint Ave.,
Bliss. Metro North RR has an agreement with LIRR to service MNRR
M7's at Arch Street. LIRR MP15's pick up the train at New Rochelle, NY
7/02/2008 Photo/Info: Bernard Ente |
BLISS TOWER: BLISSVILLE,
L.I. CITY - JCT. OF MONTAUK BRANCH AND MONTAUK CUT-FF. OUT OF
SVC: 10/12/60. RAZED 11/17/60.)
BLISS
CABIN: BLISSVILLE,
L.I. CITY JCT. OF MONTAUK BRANCH AND MONTAUK CUT-OFF. (IN SVC:
10/12/60 ON N. SIDE OF TRACKS, W. OF GREENPOINT AVE.,
112 WEST OF PREVIOUS LOCATION. US&S 4 LEVER STYLE TC
TABLE MACHINE. YEAR ROUND OFFICE CLOSED 1990s. RE-OPENED DURING
SUMMER MONTHS) |
|

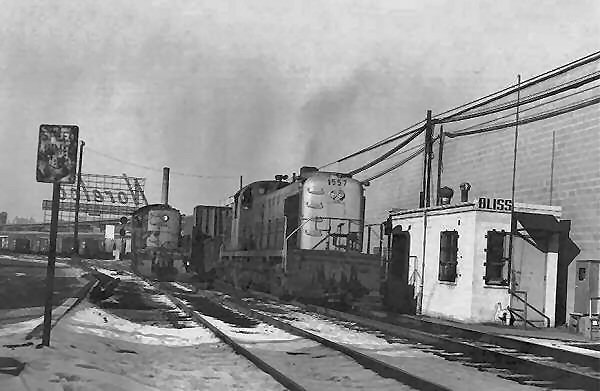

LIRR RS3
#1557 & S-2 #444 at BLISS Tower 12/1970 Photo/Archive: Dave
Keller
Reading RS3 #469-470 Greenpoint Ave., Blissville 5/01/1968 Archive: Henry
Wagner |
Crossing Shanty,
Greenpoint Ave, Blissville
View NW 12/25/1970 Dave Keller photo and archive |

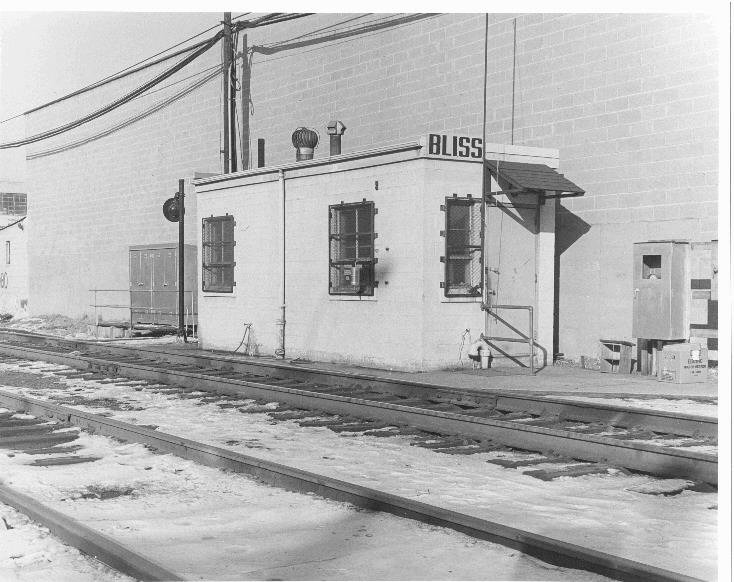

BLISS Cabin - Blissville, LI City View NW 12/25/1970
Dave Keller photo and archive |
BLISS Safety sign
9/1991 Photo: Joe Gregory |

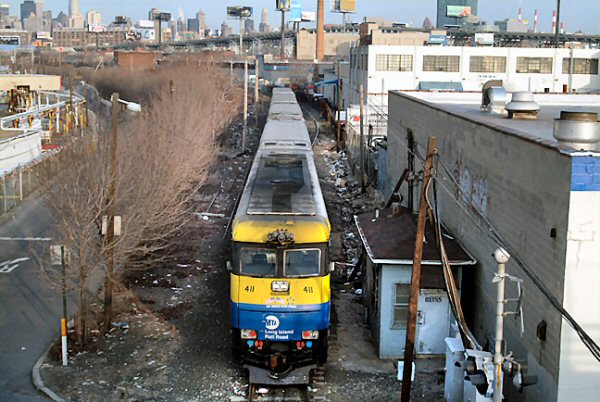

LIRR D5060 at BLISS 01/24/2008
Photo: Bernard Ente |
BLISS Cabin 11/24/2008
View W |

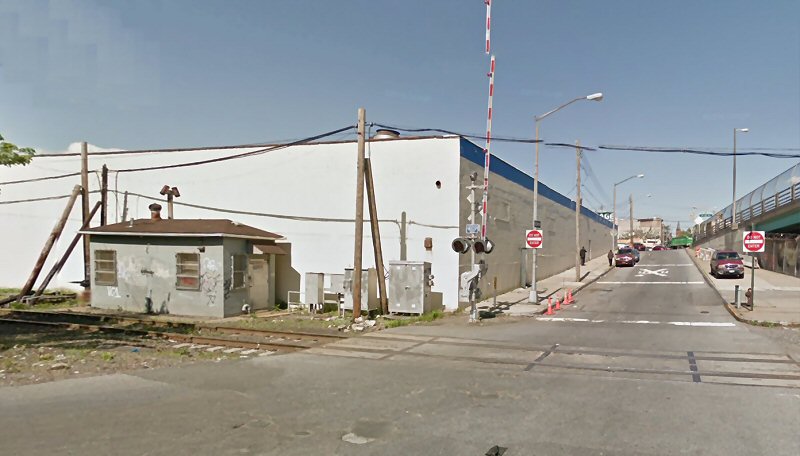

BLISS Cabin Railroad
Ave. and
Greenpoint Ave. 4/2012 View N |
|
Brakeman throwing the switch west of BLISS
Photo: Bernard Ente |

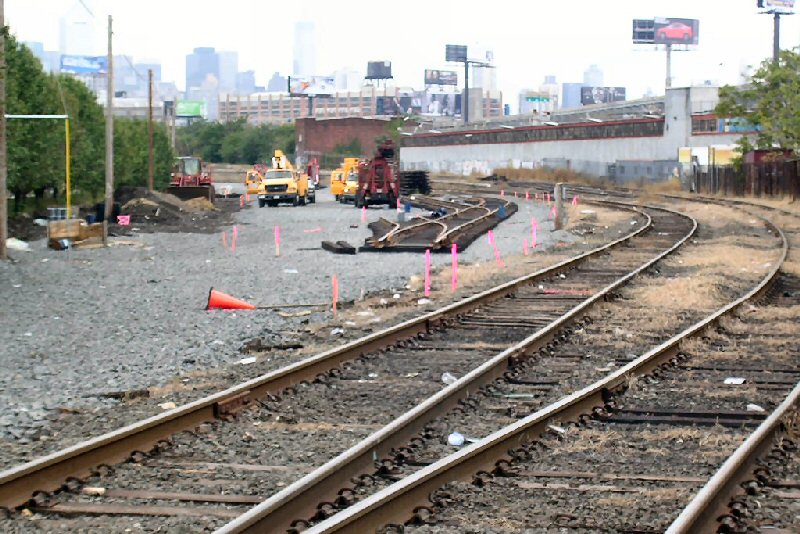

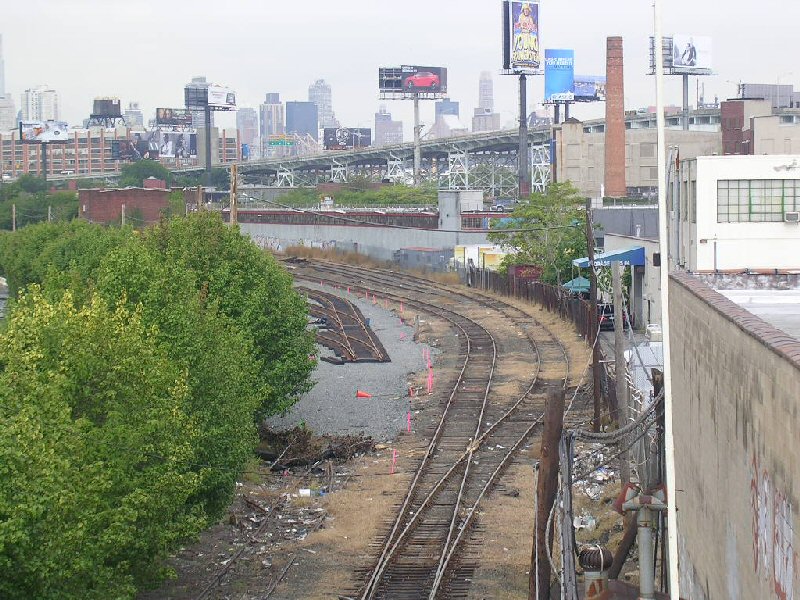

BLISS Yard construction
9/13/2008
Photo: Bernard Ente |
BLISS Yard construction 9/13/2008
Photo: Bernard Ente |
|
LIRR map 1966 east of Greenpoint Ave. Blissville-Laurel Hill
|
Three engine freight at Van Iderstine 1/30/1971 |
Van Iderstine Co. Tallow tank car |
Van Iderstine Co. Tallow tank car |
