History
The company was founded in 1822 to manufacture stagecoaches and
sleighs. The company's first railway passenger cars were built for
the Boston and Worcester Railroad in 1835. During the American Civil
War, the company produced gun carriages for the Union Army. Osgood
Bradley was purchased by the Pullman Company in 1930.
American Flyer Cars
The Worcester factory is popularly remembered as the manufacturer of
the American Flyer streamlined passenger car during the 1930s.
Walter Dorwin Teague designed a rounded aircraft-style body for
railway cars manufactured of Cor-Ten steel. These cars weighed 15
tons less than conventional heavyweight steel cars. It was hoped
these attractive lightweight cars might encourage public use of rail
transportation while offering improved economy to the railway
companies. New York, New Haven and Hartford Railroad purchased the
first of these cars in 1934. Other purchasers included Boston and
Maine Railroad (B&M), Bangor and Aroostook Railroad (BAR), Kansas City Southern
Railway, Seaboard Air Line Railroad, Saint Louis Southwestern
Railroad, and Lehigh Valley Railroad. A. C. Gilbert Company, with
New Haven trains running past their factory, decided to produce
models of this car for their American Flyer toy train sets.
Thousands of these toys were produced from 1946 to 1958; and
railfans used the name American Flyer to describe the streamlined
cars made by Osgood Bradley. Source: Wiki |
Osgood Bradley Lightweight Passenger Cars - Rapido Trains Inc. |
|
LIRR
ex-B&M Osgood Bradley
PASSENGER CAR ROSTER - P74B |
Exterior:
Lightweight, arch-roof locomotive-hauled coach; large, square paired
windows; diaphragms; four-wheel trucks.Interior84-seat coach; 2/2
reclining seats; mechanical air conditioning; recessed incandescent
lighting; full length baggage racks; four toilets.
Modernization: 2/2 reclining seats replaced with 3/2 vinyl
reversible seating for 117; three toilets removed; safety chains
replaced diaphragms; mechanical air conditioning replaced with
undercar
diesel generator; electric marker lights.
General: Built for the Boston & Maine for general long-distance
service. Cars #7521-7530 received: 9-10/1958
Cars #7531-7550 received: 1-8/1959 Research: Jeff Erlitz |
LIRR P74B #7526 (Collora-Boland) |
LIRR P74B #7530 (Votava-Boland) |

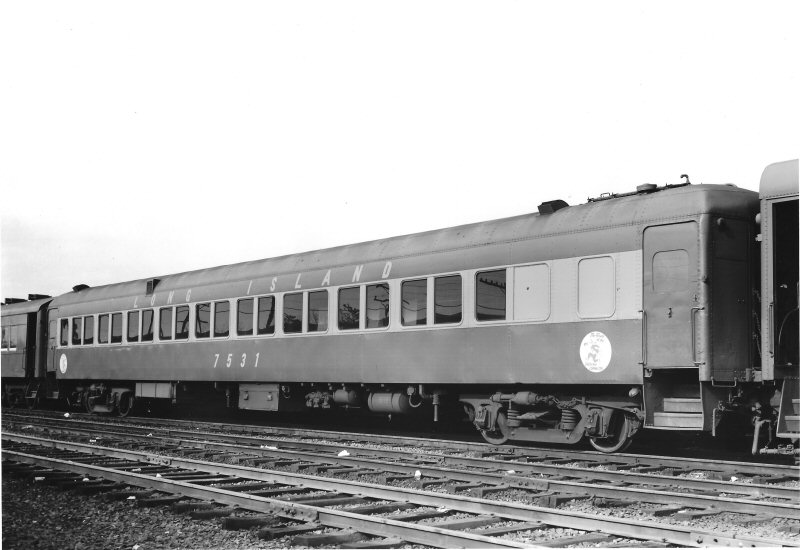

LIRR P74B #7531 (Votava-Boland) |
LIRR P74B #7532 (Votava-Boland) |
LIRR #7533 P74B ex-B&M - Osgood Bradley "American Flyer" at
Montauk 4/26/1974 Photo/Archive: Tim Darnell |
LIRR P74B #7547 (Votava-Boland) |
LIRR P74B #7546 MTA colors (Votava-Boland) |
|
|
LIRR ex-BAR
Osgood Bradley
PASSENGER CAR ROSTER - P74B1 |
|
Exterior: Lightweight, arch-roof locomotive-hauled buffet-coach;
large, square paired windows; diaphragms; four-wheel
trucks.Interior58-seat buffet-coach; 2/2 reclining seats; buffet on
one end; ice air conditioning.
Modifications: Converted to 49-seat bar-coaches by removing buffet
and reclining seats and installing a bar on one end and 3/2 vinyl
seating in the rest of the car. Diaphragms replaced with safety
chains. Undercar diesel generators were not installed, unlike the
similar B&M cars, 32 volt system for lighting left intact. Research:
Jeff Erlitz |
BAR#152 Osgood Bradley style 8/16/1937 Pullman Standard Builder
photo |
LIRR P74B1 #8551 ex-BAR #150
(Votava-Boland) |
LIRR #8552 ex-BAR #151 (Collora-Boland) |
Cars: #8551-8553 Built: 10/1937
Purchased 6/1962.
Modernized: 1/1963 Scrapped: 5/1973 8552:
9/13/1972 8551 ex-Bangor & Aroostook 150
8552 ex-Bangor & Aroostook 151
8553 ex-Bangor & Aroostook 152
|
LIRR #8553 ex-BAR #152 (Collora-Boland) |
|
LIRR ex-MEC
Osgood Bradley
PASSENGER CAR ROSTER - P71,
P71A |
Exterior: Heavyweight, clerestory-roof
locomotive-hauled coach; diaphragms; four-wheel trucks.
Interior: 84-seat (P71) or 68-seat (P71A) coach; 2/2 plush seating;
ice air conditioning; two toilets.
General: Diaphragms removed and safety chains and electric
markers installed shortly after arrival. Plush seats covered with
vinyl. Purchased LIRR: 6/1962. Cars #8506-8509 (P71) Built:
1924 ex-MEC #218-221 Cars #8510-8513 (P71A ) Built: 1931
ex-MEC #262-265 Research: Jeff Erlitz |

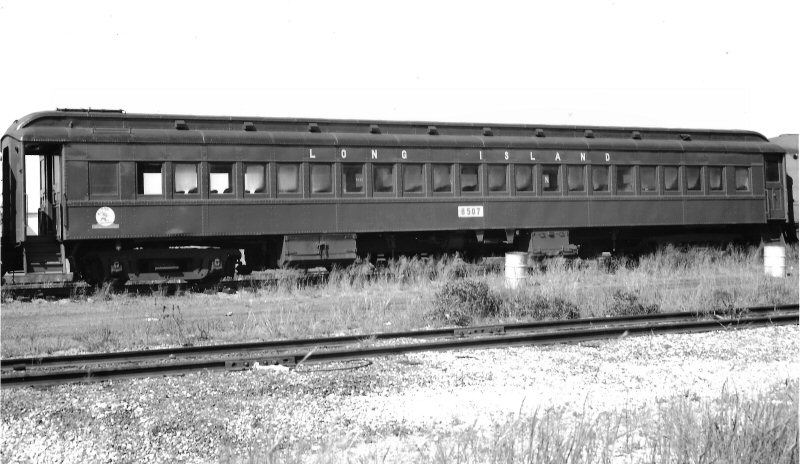

LIRR P71 #8507 9/30/1962 Archive: Mike Boland |
LIRR P71 #8506 Archive: Mike Boland |
LIRR P71 #8509 - Morris Park (Collora-Boland) |
|
LIRR P71A #8510 - Ronkonkoma 11/1962
Archive: Mike Boland
|
LIRR P71A #8512 - Bay Shore 9/1963
Archive: Mike Boland |
LIRR P71A #8513 - Bay Shore 9/1963
Archive: Mike Boland |
LIRR P71A #8513 - Receiving Yard 1/10/1969
Archive: Mike Boland
|
|
LIRR ex-D&H
Osgood Bradley
PASSENGER CAR ROSTER - P69 |
Exterior: Heavyweight, arch-roof locomotive-hauled
coach; diaphragms; four-wheel trucks.
Interior: 87-seat or 95-seat coach; 2/2 plush seating; one toilet.
Modifications: 8520 converted into a 115-seat coach, 7/1964, by
replacing the 2/2 seating with 3/2 vinyl seats. All others except
8518 had their plush seating covered with vinyl.
General: Originally built for the Boston & Albany and were numbered
in the 300 series. Built 1925. Sold to the Delaware & Hudson about
8/1955. 348 renumbered 211 and 327 renumbered 219, others unknown.
Purchased: 8/1962. Diaphragms were removed and safety chains and
electric markers were installed shortly after arrival. Research:
Jeff Erlitz |
LIRR #8518 ex-D&H #209 arrival 8/1962
Photo: Gene Collora Archive: Mike Boland |

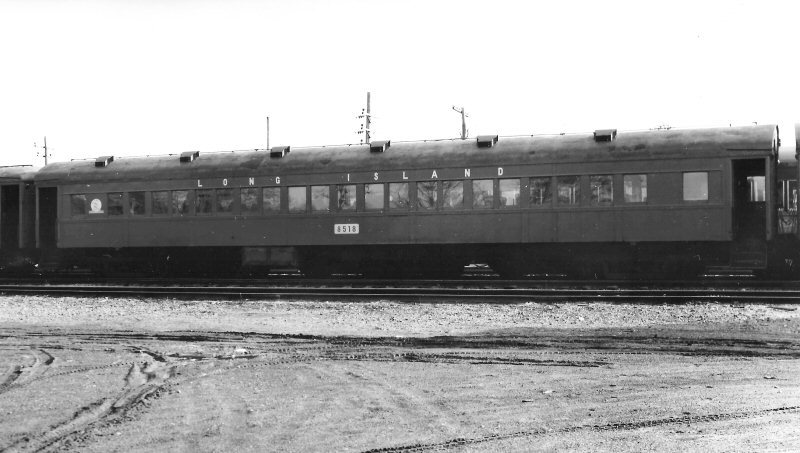

LIRR #8518 ex-D&H #209 Ronkonkoma
2/05/1967 Archive: Mike Boland |
LIRR 8517-8520
ex-D&H 208-211
8521 ex-D&H 219
8522 ex-D&H 221
Note: 8518 built 1926
LIRR #8520 ex-D&H #211 Ronkonkoma
2/05/1967 Archive: Mike Boland |
LIRR #8520 ex-D&H #211 (Lichenstern-Boland)
|
|
|
|
