The Long  Island Rail Road
Caboose #12

June 4th, 1956 Photo/Collection: Art Huneke

Drawing LIRR Class N52A
Builders Photo June 24, 1922 LIRR Class N52A
Source: Cabin Cars of the Pennsylvania and Long Island Railroads - Caboose Data Book No. 2  N.J. International, Inc.

Hack Restored Interior View

Thanks to Gary Frakash input on the diagram - "B" end to the right
Bench on "A" end

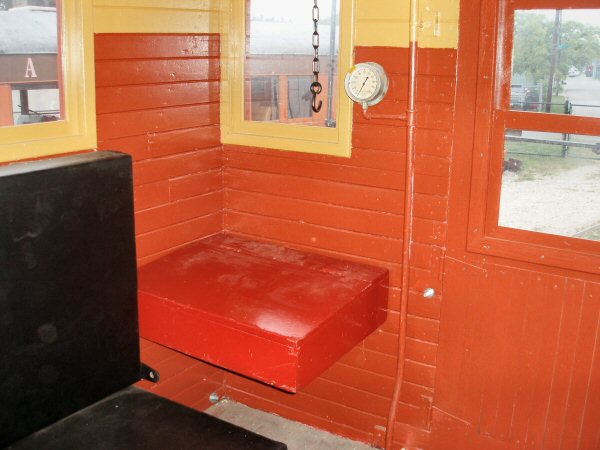

Writing Table "A" end
Coal stove sans flue
Water cistern. The sink has no faucet provisions and drains straight through to the tracks. "A" end.
View to  "B" end

Center area

Inside the east locker
Toilet facilities
Upper icebox interior view

Lower icebox interior view

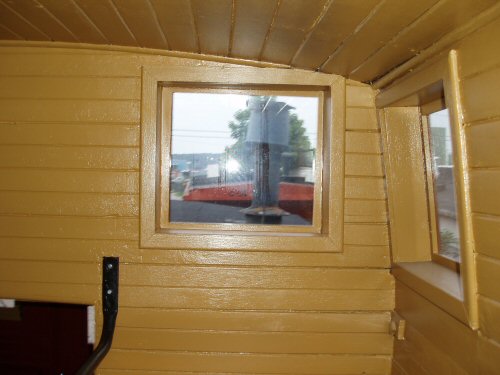

Interior View cupola "A" end
Interior cupola "A" to right
Bunk view towards "B" end
table side
Bunk View towards "B" end
coal stove side
Hack #12 Photos
Freight job at Mitchel Field 1952
Archive: Dave Keller
Shoreline Trolley Museum in Branford, CT 03/04/1998 (1)
Photo: Friends of Locomotive #35
OBRM 09/17/2009 (2)
Photo: Al Castelli
OBRM 6/06/2010
Photo: Rich Glueck
LIRR  N52A Wooden Cabooses were the last order of  wooden cabin cars the LIRR would order.  While records indicate that other companies like the Pressed Steel Car Co built some as early as 1916, most of the N-52A’s were built by the American Car & Foundry during the second half of the 1920s. While they were wooden sheathed, they did indeed feature steel framing. They were assigned relatively low roster numbers. The class served well for decades with most seeing retirement in the late 1950’s with No. 14 remaining on the active roster until the early 60's. During 1962, Numbers 12, 14, and 29 were photographed leaving the LIRR. Number 29 had been sold to the Seashore Electric Railway located in Maine.
(1) Roster Numbers 12 and 14 had been sold to the Branford Electric Railway in Connecticut
(2) Number 12 has returned to the Oyster Bay Railroad Museum, Oyster Bay, NY

Special Note: The cupola in #12 has full beds while #14 has seats. Gary Farkash

The Word "Caboose" History
The word "caboose" from Wikipedia 10/20/2009

The first written evidence of the usage of caboose in a railroad context appeared in 1859 (not 1861, as cited by the Online Etymology Dictionary), as part of court records in conjunction with a lawsuit filed against the New York and Harlem Railway.[2] This suggests that caboose was probably in circulation among North American railroaders well before the mid-nineteenth century.

The railroad historian David L. Joslyn (a retired Southern Pacific Railroad draftsman), has connected caboose to kabhuis, a Middle Dutch word referring to the compartment on a sailing ship's main deck in which meals were prepared. Kabhuis is believed to have entered the Dutch language circa 1747 as a derivation of the obsolete Low German word kabhuse, which also described a cabin erected on a ship's main deck. However, further research indicates that this relationship was more indirect than that described by Joslyn.

Eighteenth century French naval records make reference to a cambose or camboose, which term described the food preparation cabin on a ship's main deck, as well as the range within. The latter sense apparently entered American naval terminology around time of the construction of the USS Constitution, whose wood-burning food preparation stove is officially referred to as the camboose. [3] These nautical usages are now obsolete: camboose and kabhuis became the galley when meal preparation was moved below deck, camboose the stove became the galley range, and kabhuis the cookshack morphed into kombuis, which means kitchen in Afrikaans.

It is likely that camboose was borrowed by American sailors who had come into contact with their French counterparts during the American Revolution (recall that France was an ally and provided crucial naval support during the conflict). A New English Dictionary citation from the 1940s indicates that camboose entered English language literature in a New York Chronicle article from 1805 describing a New England shipwreck, in which it was reported that "[Survivor] William Duncan drifted aboard the canboose [sic]."[2] From this it could be concluded that camboose was part of American English by the time the first railroads were constructed. As the first cabooses were wooden shanties erected on flat cars (as early as the 1830s[4]) they would have resembled the cook shack on the (relatively flat) deck of a ship, explaining the adoption and subsequent corruption of the nautical term.

There is some disagreement on what constitutes the proper plural form of the word "caboose." Similar words, like goose (pluralized as "geese"), and moose (pluralized as "moose," no change) point to the reason for the difficulty in coming to a consensus. The most common pluralization of caboose is "cabooses," with some arguing that this is incorrect, and, as with the word moose, it should stay the same in plural form—that is, "caboose" should represent one or many. A less-seriously used pluralization of the word is "cabeese," following the pluralization rule for the word goose, which is "geese." This particular form is almost universally used in an attempt at humor (as, presumably, are "cabice" and "caboosii").


Slang terms
Among rail crews the caboose was sometimes called a "crummy" (as in a crummy place to live), not elegant, often too hot or too cold, and perhaps not especially clean. Other nicknames used were "clown wagon," "hack," "waycar," "brainbox," "palace," and "cabin".

FRED, the end of an era

Until the 1980s, laws in the United States and Canada required that all freight trains have a caboose. Technology eventually advanced such that a caboose was unnecessary; improved bearings and lineside detectors to detect hot boxes, better designed cars to avoid problems with the load. The final nail for the caboose's coffin came with an electronic box with the innocent name of "FRED," an acronym for flashing rear-end device, or "EOT," End-of-Train device. A FRED/EOT could be attached to the rear of the train to detect the train's air brake pressure and report any problems back to the locomotive. The FRED/EOT also detects movement of the train upon start-up and radios this information to the engineer so that he/she will know that all of the slack is out of the couplings and additional power can now be applied. With the FRED/EOT on the job the conductor moved up to the front of the train with the engineer and year by year, cabooses started to fade away. Very few cabooses remain in operation today.

A while back there was mention in a thread about where the term 'hack' came from in reference to a caboose. I don't think anyone knew where it came from, and after asking JJ Earl about it, he didn't know either, saying that's just what it was called. Yesterday I was at the LI Museum in Stony Brook and they have a stage coach from 1860 that was a smaller version of the more common, larger one. This smaller one was called a Hack Passenger Wagon. I figured that freight crews back in the late 1800s must have used the term hack to refer to the caboose since it's the 'passenger' carrying car of a freight train.

I found a couple references on the Internet that would back up this assumption. I just figured this might answer the question of a kay-boose being called a hack.

From http://www.reference.com/browse/wiki/Station_wagon:
The first station wagons were a product of the age of train travel. They were originally called 'depot hacks' because they worked around train depots as hacks (short for hackney carriage, an old name for taxis). They also came to be known as 'carryalls' and 'suburbans'. The name 'station wagon' is a derivative of 'depot hack'; it was a wagon that carried people and luggage from the train station to various local destinations.

From http://www.oldwoodies.com/resource-woodies-terms.htm:
Depot Hack - A passenger carrying wagon for hire commonly found at American train depots in the first half of the 20th century.

From http://www.mcq.org/presse/aacb_obj.html:
Hack Passenger Wagon - Up until 1893, the Concord stagecoach was the principal means of transportation in the West. First built in 1820 in the workshops of the J. S. Abbot & Son Company in Concord, New Hampshire, it seated 16 passengers inside and on the roof. After 1893, its
successor was a lighter and therefore faster stagecoach, but not as sturdy. The new model was for short distances on fairly level terrain.

The first reference could also explain the term 'hack' for a cabbie.

BTW, when I was working at the Friends of 35 display of #50 at the Mineola Centennial fair in the Spring, I found it quite amusing what the public thought this car was. Many thought it was where the train was driven from and wondered where the engine in it was, others thought it was a passenger car and wondered where all the seats were, and others thought the brake wheel was how you steered it. Very amusing.

It was common for railroads to officially refer to cabooses as "cabin cars."
A four-wheeled "bobber" cupola caboose at the Colorado Railroad Museum, Golden, Colorado.

Slang terms

Of all the implements of railroading, none has had more nicknames than the caboose. Many are of American or Canadian origin and seek to describe the vehicle or its occupants in derisive ways. Often heard amongst crews was "crummy" (as in a crummy place to live, not elegant, often too hot or too cold, and perhaps not especially clean), "clown wagon," "hack," "waycar," "dog house," "go cart," "glory wagon," "monkey wagon" (a term that indirectly insulted the principal functionary who rode therein, no doubt coined by an engineer), "brain box" (the conductor was supposedly the brains of the train, as opposed to the "hogger" or engineer, who was presumed to be pigheaded), "palace," "buggy" (Boston & Maine/Maine Central), "van" (Eastern and Central Canada, usage possibly derived from the UK term for the caboose), and "cabin", or a variation heard at least on the Southern Railway, "cab". There were others as well, some too profane to appear in print.

The small, two-axle cabooses that were widely used during the latter part of the nineteenth century were called "bobbers," which term described their riding characteristics on the relatively uneven track of the time. Bobbers tended to produce an unpleasant pitching motion that was usually not present in more modern, two truck models.
