                                      "Change at Jamaica"  c.1950

Jamaica Area DOD Aerial 2/23/1966


Emery map Main Line Metropolitan Ave. to MP9

Station-Westbridge-Construction of BRT Trestle-View W-12-11-16 (Keller).jpg (93447 bytes)
Westbridge Station - Construction of BRT trestle. View W showing the girder trestle of the Jamaica Ave. BRT EL under construction on 12/11/1916.

The station platforms and covered stairways of the Westbridge station are visible at the far left and far right.  The station opened less than 6 months earlier on 6/28/16.  You can see how fresh white the high-level concrete platforms appear.
Info/Archive: Dave Keller

Westbridge LIRR valuation street-level view of the substantial brick ticket office with the
shelter shed on the embankment above. View SE 5/24/1918
LIRR Valuation Photo / Art Huneke archive

Westbridge Station Jamaica Ave View NW c.1925
(James V. Osborne-Dave Keller Archive)
Station-Westbridge-130th St.-Jamaica Ave.-Jamaica - 05-07-34 (Sperr-Keller).jpg (89965 bytes)
Westbridge Station at 130th St. and Jamaica Ave., Jamaica
View NE 5/07/1934 (Percy Loomis Sperr-Dave Keller Archive)

Main Line view east of Westbridge towards Jamaica with JA Tower in the background.  Jamaica elimination project beginning.  10/12/1910
Archive: Dave Keller

Westbridge curve view W - 7/12/1968  A Jamaica EL train on the Jamaica Ave. EL trestle crossing the LIRR tracks at the former Westbridge station location. (background right) Photo/Archive: Richard Makse

Westbridge curve view E - 7/12/1968  Photo/Archive: Richard Makse

Jamaica Terminal facilities -Elevated view W from near 150th St. 1945 Archive: Dave Keller

Jamaica Station c.1925

Jamaica Station 7/2007

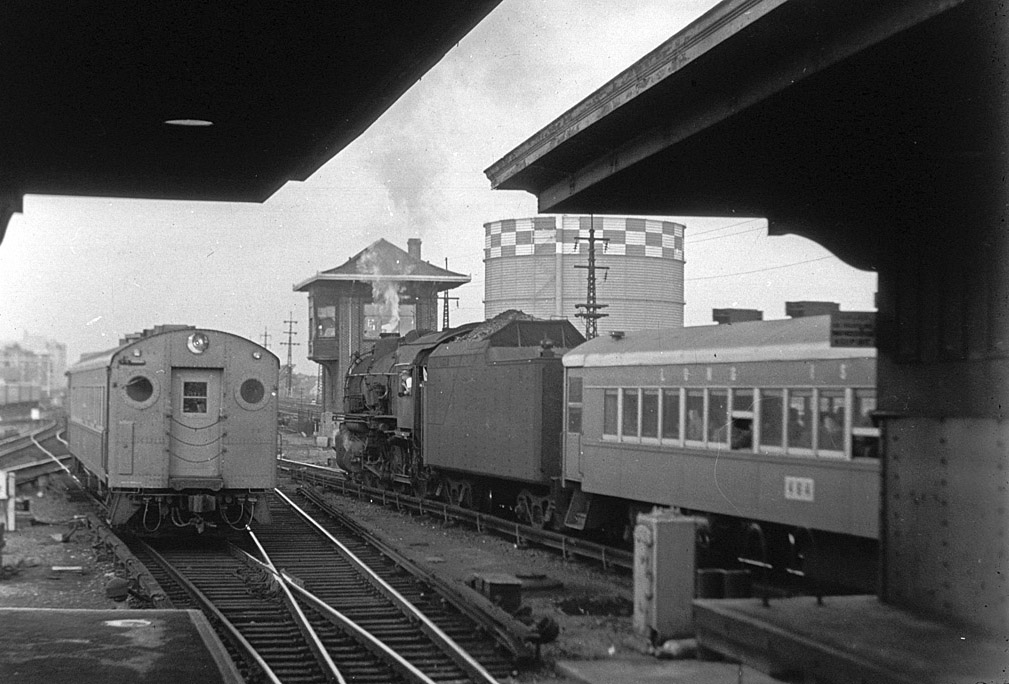

Jamaica Station-Track 8 View E 1952+ Archive: Bill Mangahas

The G5's 39-50, delivered in 1929-30, came with these Lines West tenders. The rear truck front axle has roller bearings for ASC. The passenger car and  MU car at the left is in the Tichy scheme (11/01/1949) with ASC installed below engineer cab window.

Jamaica-station-interior_ticket kiosk_Morrison.jpg (149572 bytes)
Jamaica Station interior When the station was first constructed in 1913, the ticket office was an island kiosk in the middle of the waiting room. Archive: Dave Morrison
Jamaica Station waiting room - LI Railroader 8/18/1960
Archive: Dave Morrison
Rare 1913
floor plan of Jamaica Station. The north side of the station is facing up, with the Sutphin Blvd. entrance at the right. Archive: Dave Morrison

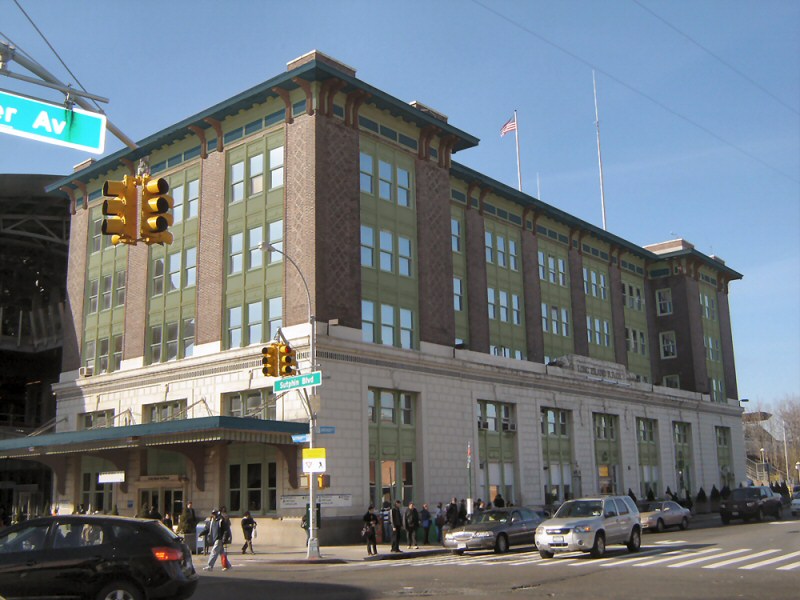

Jamaica Station restoration View SW 8/8/2013
Archive: Dave Morrison

Centennial Jamaica Station 100 years 3/09/2013
Archive: Dave Morrison

Newsday_Jamaica 100th_10-23-2013.jpg (439433 bytes)
Newsday Jamaica 100th 10/23/2013

Jamaica Grade Crossing Elimination - Railway Age Magazine: May 5, 1931
Jamaica-Elimination_Railway-Age-Magazine-page-865_5-02-1931.jpg (466524 bytes)        Jamaica-Elimination_Railway-Age-Magazine-page-866_5-02-1931.jpg (619245 bytes)       Jamaica-Elimination_Railway-Age-Magazine-page-867_5-02-1931.jpg (640449 bytes)


JAY Interlocking 8/01/1996 Archive: Jeff Erlitz
20-Jamaica-Grade Elimination view E from W of Van Wyck Ave.-3-10-13.jpg (133862 bytes)
View east from the west side of Van Wyck Avenue 3/10/13 towards “J” Tower: 2  brick tower north side of tracks and west of new station location at Sutphin Blvd., after grade elimination 1913.  Renamed “JAY”: 4/16/37 LIRR valuation photo - Dave Keller archive
Jamaica - Jay Tower Interlocking view E  c.1964
Photo: Steve Hoskins
Jamaica Station NY 1976.jpg (57777 bytes)
Jamaica - Jay Tower Interlocking view E  1976

 5:30pm on September 5, 1950 finds Main Line train No. 242, from Hunterspoint Avenue, already on the model board in Jay Tower as it enters the matrix of switches on the west end of Jamaica Station. F. Rodney Dirkes photographed a westbound MU from the window of his train while it eased over the top of the flyover to both the Atlantic Branch line to Brooklyn and the leads to the receiving yard in Richmond Hill. No. 20, the Long Island R.R.'s class G5s, does the honors on the eastbound. Ron Ziel collection. View SE Archive: LIST Calendar May 2015

Penn-Station bound new MU cars (left) - CPA-20-5 #2005 LI City bound View E at  JAY Tower  8/1956  Photo: William D.  Middleton

Hall Tower Jamaica view E  c.1970
Photo: Richard Glueck

JAY Tower, Jamaica View S 1979

View east at Hall Tower 03/27/1954 of a string of Tichy-schemed cars with orange end doors for better visibility at grade-crossings.
Archive: Jim Gillin

Hall Tower view E after renovation

The "tank" in the photo (above center) was more properly termed a "holder" by its owner, the Brooklyn Union Gas Co.  Built around 1947, its purpose was to serve as a reservoir/pressure regulator for the burgeoning market for natural gas in southeastern Queens.  In keeping with the times, pressure in the holder was only 6" water gauge.  After Brooklyn Union Gas began to switch over to a higher pressure in the street mains, the holder became somewhat redundant and no longer served its original purpose. The tank was razed in July 1976. Info: Robert Strum

JAY-Tower_Jamaica_viewW_1969.jpg (101869 bytes)JAY Tower view W in 1969. A brand-new C420 at the far left in original yellow and pale blue MTA colors (delivered the summer of 1968)!

I walked along that elevated structure you see in the background behind the tower numerous times on my jaunts from Jamaica to the Richmond Hill storage yard to pick up my parlor or bar car.  It was safer to walk from the end of track 8 and up over that viaduct than up Archer Ave. to Jamaica Ave. and west to the yard. At the rear of that train on the overpass, you can make out the roof of the old Mail dock. Info: Dave Keller

Notes: The black canisters with the yellow numbers are for the switch machines. The yellow numbers are to identify the various switch numbers. The canisters themselves are the exterior covers for the electropneumatic components that operate the switch.

The white 'pothead' covers, made of cast cement adjacent to the third rails, cover the terminals for the third rail cable connections. The ones semi center, not near the third rail, are for a sectionalizing switch.

M1-9754_Jay-Tower_viewW_1998.jpg (111113 bytes)JAY Tower view W in 1998. LIRR M1 #9754 westbound on its journey to LI City.

Jamaica Station Area Map - circa 1950

Schematic Jamaica - 1970
LIRR Jamaica map c. 1982 Collection: John Fusto

Johnson Ave. Freight Yard - Jamaica, NY (view NE towards HALL Tower - 12/30/1944 (Weber-Morrison)

Johnson Ave. Freight Yard - Jamaica, NY (View of Brake Wheel) - 12/30/19-44 (Weber-Morrison)

A brakeman's perspective of boxcar views!

Johnson Ave. Freight Yard - Jamaica, NY (View W towards Dunton Car Shop - 12/30/1944 (Weber-Morrison)
All images following are courtesy of the Dave Keller Archive unless noted otherwise. All captions are by Dave Keller.
Emery-Map-Jamaica-Rockaway Rd to Union Hall St-1870s.jpg (165305 bytes)
Emery Jamaica-Rockaway Rd to Union Hall St-1870
Emery-Map-Jamaica-Rockaway Rd to Union Hall St-1890s.jpg (213761 bytes)
Emery Jamaica-Rockaway Rd to Union Hall St-1890
Emery-Map-Jamaica-Rockaway Rd to Union Hall St-1903-08.jpg (268881 bytes)
Emery Jamaica-Rockaway Rd to Union Hall St-1903-08
Emery-Map-Jamaica-Van Wyck Ave to Rockaway Rd-1904-07.jpg (295647 bytes)
Emery Jamaica-Van Wyck Ave to Rockaway Rd-1904-07
Old Jamaica - East 8/1912  - 3/1913
ERA Bulletin April, 2019 Map: George Chiasson
Jamaica Station 11/1912 - 3/1913
ERA Bulletin April, 2019 Map: George Chiasson

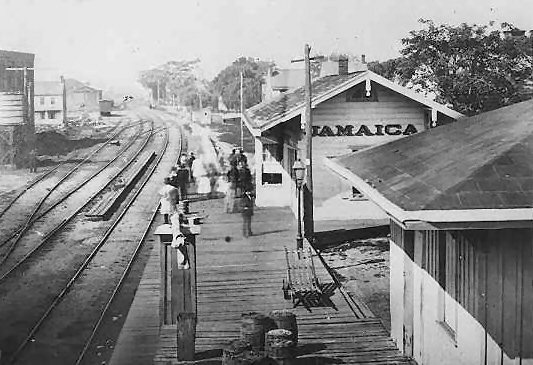

Oldest known photo of the LIRR’s original depot at Jamaica- view looking west from the Beaver St. overpass - 1874.  In 1877, the SSRR’s 1871-era depot in place south of this location at Beaver Street was  moved to a spot adjacent to the west side of this structure and both were utilized by the LIRR. Archive: Dave Keller

Jamaica ex-SSRR Depot on the LIRR Main Line - Dutch Reformed Church -View NE 10/1878 Archive: Dave Keller
2-Jamaica-SSRR depot relocated adj to LIRR depot-view east-1875.jpg (73207 bytes)
The SSRR’s larger depot in place on the west side of the LIRR’s depot at Jamaica .  View looking east towards the Beaver St. overpass – 1878.  The eastern portion of this structure, at this time, was utilized as the ticket office /waiting room and the western portion used as a lunch counter and bar.  It remained in use as the LIRR’s main depot building until the grade elimination of 1913.  It is not evident whether the original depot survived and was enlarged or it was demolished and replaced.   The c. 1905 image (posted below) looking west from the street overpass shows a much larger building on the east side of the former SSRR depot.  Al so evident in that shot is that the Beaver Street overpass was removed altogether in 1903 (per Emery’s map notes).  The 1874 image was shot FROM that bridge and this 1878 image shows the little A-frame bridge very close to the station area. (Original photo by George Brainerd, Dave Keller archive)
3-Jamaica-SSRR depot relocated to LIRR site-view NE-c. 1880.jpg (90248 bytes)
The SSRR’s larger Jamaica depot in use on LIRR property.  View looking northeast c. 1880.  This shows better the demarcation between ticket office/waiting room and lunch counter/bar.  There are a number of LIRR crewmen relaxing in front of the building, noticeably the bar portion!
4-Jamaica - 4-4-0 No. 86 and trains W. at old station -c. 1890.jpg (93400 bytes)
4-4-0 #86, 4-4-0 #? and trains laying up westbound at old station – Jamaica, NY – c. 1890

6-Jamaica-Water tanks and tracks-E from platform roof-1903.jpg (86261 bytes)
Water tanks, water spout and trains and equipment looking east from Jamaica station platform roof – 1903

5-Twin Water Towers and Camelback -  Jamaica - 3-1903.jpg (82475 bytes)
4-6-0 camelback and train westbound past twin water tanks – east of old Jamaica station – 3/1903

Sub Station #4 valuation photo 6/10/1902 Archive: Dave Morrison

Jamaica Station facilities post card view W c.1903-1906

Both photos ()left and below) were taken from the Prospect St. overpass (old street name), looking west. The tracks were in a cut from here eastward. The ROW was crossed by a number of iron bridges.

The Beaver Street crossing is not evident between the overpass and the station. Emery's map indicates that the Beaver St. crossing was taken out after 1903. So . . we know both images were photographed AFTER 1903.

This was photographed sometime between 1903 and the "in-service" date of 1906 of Tower 41 (2nd).
Research: Dave Keller



The colorized post card showing a night view produced in 1908. Info: Dave Keller

Jamaica-Station facilities_viewW_c.1906-1913.jpg (110139 bytes)
Jamaica Station facilities post card view W c.1906-1913
Archive: Dave Keller

The interlocking tower in this photo is "JE" tower which was originally numbered Tower 41 (2nd), placed in service 06/29/1906 and renamed with call letters in 1907. The tower remained in service until it was demolished in the 1913 grade elimination/Jamaica Station elevation project.
Research: Dave Keller

7-4-4-0 No. 524 being turned on turntable-Washington St., Jamaica- View W-1904.jpg (97096 bytes)
4-4-0 #524 being turned on turntable -  Washington St., Jamaica – View looking west – 1904
9-Jamaica-JS tower, station platforms looking east-12-19-08.jpg (101951 bytes)
“JS” tower looking east from west end of old Jamaica station platform towards station area – 12/19/08
10-Jamaica-JS tower-Division Ave. xing-W end of sta. platform-12-29-08.jpg (96627 bytes)
“JS” tower at west end of old Jamaica station platform now controlling the Division Avenue crossing.  View looking north – 12/29/08
11-Tower-JA-(Jamaica Block)-Van Wyck Ave-Dunton-3-1909.jpg (79414 bytes)
“JA” tower (“Jamaica Block” on ETTs) looking east at Van Wyck Ave., Dunton, NY – 3-1909
12-Jamaica-Steam-Elec- trains E at old station - c. 1910.jpg (85329 bytes)
Steam and early MP54 electric trains eastbound at old station – Jamaica, NY – c. 1910
13-Jamaica-JS tower, station,Twombly Pl-Division Ave.-East-10-4-10.jpg (106978 bytes)
“JS” tower looking east from  Division Avenue along Twombly Place towards old Jamaica station – 10/4/10
14-Jamaica-Platform mock-up-E towards Dunton Car Shop-2-1-11.jpg (76818 bytes)
New Jamaica station platform mock-up to test clearances of equipment and rolling stock.  View looking east towards the Dunton Electric Car Shop – 2/1/11
15-Jamaica-W approach to station-Van Wyck Ave. superstructure at R-4-23-11.jpg (123608 bytes)
West approach to new station construction looking east towards Van Wyck Ave. , Jamaica, NY.  Steel superstructure for new tracks over avenue at far right – 4/23/11
16-Jamaica-G53-135 with frt east past new tunnels for Old Southern Rd-1913.jpg (138124 bytes)
G53 (4-6-0) #135 pulling freight east through the grade elimination construction near the site of the old station facilities.  View looking northwest – 1913.  The tunnels are for the Old Southern Road tracks to head southeast.  Note the brakeman riding the top of the lead car.  Track gauge spacer is in place in the foreground.  The 3rd, inner rail on the curve was to keep derailments at a minimum.  At the left foreground are the old hand-drawn concrete wagons.  The laborers on this project didn’t have it easy by any means!
17-Jamaica - New station under constr-View NE from platform roof - 1913.jpg (113399 bytes)
New Jamaica station general offices nearing completion.  View NE from platform roof – 1913.  Note the barren-ness of Jamaica in the background.  Also note the folding fabric awnings over many of the office windows.
18-Jamaica-New station-View NW from tracks-1913.jpg (112116 bytes)
New Jamaica station general offices nearing completion.  View NW from tracks – 1913.  Note the folding fabric awnings over many of the office windows in this view as well.
19-Jamaica-New station and platforms-Signal bridge at tracks 6-7-View NW from JE tower-1913.jpg (93542 bytes)
New Jamaica station and platforms at track level as viewed from the new “JE” (later “HALL”) tower.  Note the signal bridge over tracks 6 and 7, which was removed some years later.  View is NW – 1913.  This MAY be a photo on or in preparation of opening day, judging by the U.S. Flag flying from the roof of the general offices.  Note the tell-tales in the center of the image on the westbound tracks, to protect men riding on top of cars/equipment making reverse moves eastbound with the new tunnels in such close proximity.

MP41 train 1912 rebuild near JAY Tower Archive: Rob Gales

20-Jamaica-Grade Elimination view E from W of Van Wyck Ave.-3-10-13.jpg (133862 bytes)
Grade elimination west of the new depot, looking east from the west side of Van Wyck Avenue – 3-10-13.  The superstructure over the avenue is in place in the right background and in the right background can be seen the Dunton Electric Car Shop, which 1906 building was located on the east side of Van Wyck Ave., south of the LIRR’s tracks.  It’s quite evident this was a very LONG structure.

21-Jamaica-View E from new sta to old sta-3-12-13.jpg (153557 bytes)
Grade elimination in progress at Jamaica, NY.  View looking east from upper level of the new Jamaica station general offices towards old Jamaica station across from gas tanks – 3/12/13

Six months later;  the Grade elimination in progress at Jamaica, NY.  View E from upper level of the new Jamaica station general offices towards old Jamaica station.  9/1913 Archive: Dave Morrison

View E from upper level of Jamaica Station. 3/30/2017
Photo/Archive: Dave Morrison

22-Jamaica-New station during constr-View W-Archer Ave-9-11-13.jpg (104672 bytes)
New Jamaica station, general offices and platforms nearing completion.  View west along Archer Ave.  Temporary supply spur still in place. – 9/11/13
23-MP41 1006 and train past J tower-Jamaica-c.1913.jpg (96141 bytes)
MP41 1006 and train westbound past “J” tower-Jamaica-c.1913
24-Jamaica-Post-grade elimination work at site of old statioin-View W-7-14-14.jpg (123772 bytes)
Post grade elimination work at site of old Jamaica station. Completing Breaker House. Old meat market structure at right.  New station visible in distance.  Tracks to Old Southern Road in foreground and at left in tunnel.  View looking west:  7/14/14.
25-Jamaica-New sta-platforms-W - 9-6-16.jpg (120641 bytes)
New station general offices and covered platforms – Jamaica, NY – view looking west – 9/6/16
26-Jamaica-New station and platforms-M&Q trolley 117-View W along Archer Ave-9-6-16.jpg (84133 bytes)
New station, general offices and platforms with Manhattan & Queens trolley car #117 in front of waiting room.  View looking west along Archer Ave. – Supply spur still in place in foreground. - 9/6/16.
27-Jamaica-View W from site of old sta to new sta - 11-27-16.jpg (122405 bytes)
View looking west from site of old Jamaica station towards new station facilities – 11/27/16
28-J Tower-Jamaica-Valuation Photo - 4-2-1921.jpg (117406 bytes)
“J” (later “JAY”) tower west of new Jamaica station.  View looking west.  Appears windows are being washed . . . perhaps for the first and last time!  4/2/21
29-Jamaica-Terminal facilities-Elev view W from near 150th St-c.1938.jpg (99915 bytes)
Elevated view of Jamaica terminal facilities as viewed westward along Archer Ave. from near 150th St. – c. 1938.  Note the signal bridge over tracks 6 and 7 as viewed in the 1913 image from “JE” tower is no longer in place at this time.
G5s #43 on lay-up track east of “JE” tower (renamed “HALL” the following month) waiting to back down and couple onto a train brought from Penn Station behind a DD1 electric.  G5s #50 is visible in the right background – Jamaica , NY – 3/6/37  Dave Keller archive
Central Islip State Hospital A3 (0-4-0) #03 eastbound passing “JE” tower on its way back from Morris Park Shops after having its annual inspection – 10/12/33.  The little engine switched freight and express between the Central Islip station, the CI team tracks and the State Hospital grounds, connection and spur of which was located east of the station.  (Richie Harrison photo, Dave Keller archive)
30-H6sb-Frt-East Past JE-Tower-Jamaica-c.1932.jpg (56990 bytes)
H6sb (2-8-0) pulling freight eastbound through the station past “JE” (later “HALL”) tower – Jamaica – c. 1932
32-G5s-37-Train-E past JE Tower-Jamaica-1935.jpg (87751 bytes)
G5s (4-6-0) #37 and train eastbound at speed leaving station and “JE” tower Jamaica, NY 1935
Note: Photo from the rear of a moving train eastbound on the Atlantic branch

DD1 #354 with eastbound passenger train at track 8, Jamaica, NY - 4/17/38 Archive: Dave Keller

Jamaica Yard at Hall Tower view SE c. 1950-51 Photo: Henry Barsky

This photo was shot by Henry Barsky from one of the station office building upper floors of the Jamaica station general offices. We see a train of mixed Tuscan Red and Tichy cars in the foreground. By HALL tower is a set of DD1 electric locomotives. In the center background are two MU cars; one Tuscan Red and one Tichy. At the far left is a K4s steam locomotive heading eastbound in front of the gas tanks with a C-Liner to the left of the K4 loco.

The exact spot where the DD1s are sitting still exists a two car pocket track (MY pocket) protected both east and west by low home signals. DD1s last appeared June 22, 1951. These are in older paint. The light K4s indicates a train power switch. Info: Ron Zinn

That gas holder belonged to the Brooklyn Union Gas Company. It was built somewhere around 1945-6, on a piece of land which had been the site for a gas works back around 1910 and earlier. Some LIRR pictures from that era show a much smaller holder on that site, but that disappeared by the 1920’s.

Interesting shot – in the period of change from PRR Tuscan Red to the Tichy light gray scheme. Note the DD-1. It has probably brought a train bound for the East End from Penn Station and cut off in the station. The steam engine is probably on the little engine pocket just east of Hall tower, and will back on to the train, make the brake test and head east. The DD-1 will go east almost to Union Hall St. and reverse back over the Montauk Freight tracks to Morris Park. Info: Henry Raudenbush

Map Info: Joe Tischner 2014

#219 with ex-NYC “Silver Streak” coaches (Jack Deasy info) eastbound through Union Hall  Street.  St. Monica’s church at the right background. Photo: Joe Saullo
lirr211Union HallStreet o KO as he pass by new set of M1s going West.jpg (64512 bytes)
 LIRR #211 eastbound through Union Hall  Street on to KO. The pass by is a new set of M1s going west. Photo: Joe Saullo
LIRR C420 #212 Oyster Bay train westbound at Jamaica 04/1971 Photo: Kutta Archive: Dave Keller

130th St. coach yard and turntable
Jamaica Station c.1971 Photo: Richard Glueck
Jamaica Station c.1945
Hollis-Station-IS Tower_valuation-photo_11-9-1916_ArtHuneke.jpg (107542 bytes)
Hollis Station - IS Tower  11/08/1916
LIRR valuation photo  Archive: Art Huneke
Robert-Valonis_public-announcement-console_LIRR-Movement-Bureau-Jamaica_2-02-1987_(Newsday-Alan-Raia).jpg (75782 bytes)
Robert Valonis -  Public announcement console LIRR Movement Bureau, Jamaica 2/02/87 (Newsday-Alan Raia)
Jamaica Sutphin Blvd view N from LIRR overpass c.1970
Photo: Richard Glueck

Montauk Branch - Glendale to Jamaica Track profile map 1994

Montauk Branch - Jamaica to Rosedale T
rack profile map 1994
LIRR ticket office Jamaica station 7/27/07 Photo/Archive: Kevin Wong
LIRR #7139 M-7 Jamaica Station 12/27/13 Photo: Ron Yee

Jamaica Station between Tracks 7 & 8, looking down from
the walkway to the Air Train Terminal
8:40 pm  8/17/08 Photo: Mike McDermet

Jamaica Station, Sutphin Blvd view N 7/29/2020 Photo/Archive: Dave Morrison

Jamaica Station  view NE 7/29/2020 Photo/Archive: Dave Morrison

Jamaica Station view SE  7/29/2020 Photo/Archive: Dave Morrison

Jamaica Station view W 7/29/2020 Photo/Archive: Dave Morrison

Jamaica Station  view E toward HALL Tower 7/29/2020 Photo/Archive: Dave Morrison

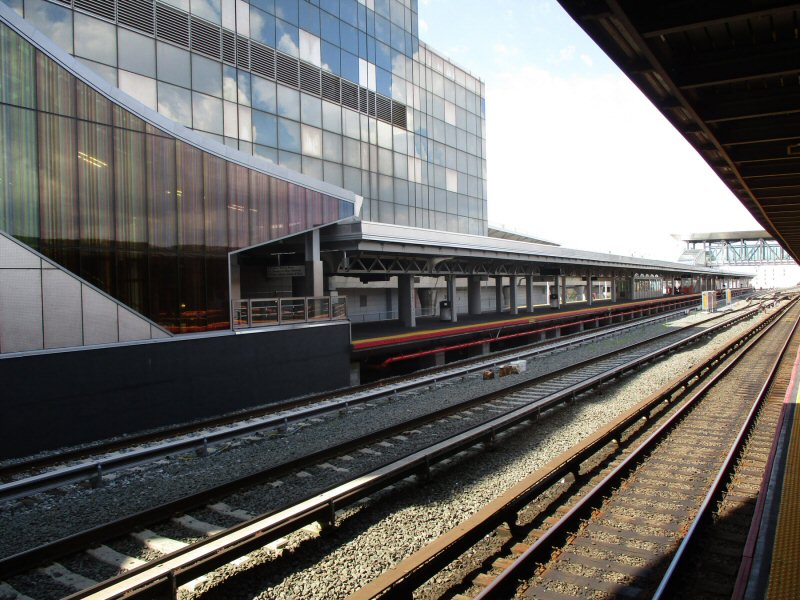

Jamaica Station - New Platform F for the Atlantic Terminal trains (not in service) View SW 7/29/2020 Photo/Archive: Dave Morrison

Jamaica Station - View E  5/13/2021
Photo/Archive: Dave Morrison

Jamaica Station - View W  6/19/2021
Photo/Archive: Scott Weinfeld

Jamaica Station - View NE  6/19/2021
Photo/Archive: Scott Weinfeld

Jamaica Johnson Ave Yard  View W 6/19/2021
Photo/Archive: Scott Weinfeld

Jamaica Station - View E Tracks #11-12  for Brooklyn bound trains when service begins to Grand Central in Dec. 2022. 6/25/2021
Photo/Archive: Tim Darnell

Jamaica Platform A view S 9/25/2021 Photo/Archive: Joe Stroppel

The photo view W from the elevated structure of the JFK Airtrain towards Atlantic Avenue which is to the left of the warehouse building. The Van Wyck Expressway is down below track level behind the Johnson Ave. Yard. The LIRR yard tracks are on the site of the old Dunton Car Repair Shop. Jay Tower and the tracks into Jamaica Station are to the far right. The yard is numbered 1-4, North to South. The M7 is on track 1, M9 on track 2.

The LIRR track car is located on what will be Atlantic No. 4 track (tracks are being re-configured). Continuing east turns into track 12 in Jamaica. Those crossover switches just east of the track car, are west of Platform F (Tracks 11-12) in Jamaica station



Built: 1913. Below grade access to platform via stairs from iron bridge. ETT no.73 effective: May 27, 1914 lists Union Hall Street Station on the Montauk Division for westbound trains. There was no platform for eastbound Montauk Division trains at that time. (Art Huneke data) Eastbound platform added: ?

High level platform out of service: 11/16/29 on account of “Jamaica Improvement East” project.
Temporary, low level platform north of track 1, between 165th St. and New York Ave. in service: 11/16/29. Out of service: 12/8/29

Temporary high level platform south of track 1 in service: 12/8/29.
Temporary eastward high level platform between tracks 2 and 3 out of service: 6/21/30.
Temporary eastward high level platform south of track 6 in service: 6/21/30. Permanent eastward high level platform between tracks 3 and 5 in service. As westward and eastward platform: 6/21/30.
Temporary eastward high level platform out of service: 2/26/31.
Permanent westward high level platform in service: 2/26/31. Agency still listed in "LIRR ticket offices open for sale of tickets" 9/12/55 as part time. Agency closed: ?
 Discontinued as station stop: 1976. Razed: c. 2001. Research: Dave Keller

Union Hall St. Bridge View N 1928  Archive: Steve Rothaug

The iron bridge at Union Hall St. had stair access to the station
in the cut below grade.   Info: Dave Keller

Union Hall St. Station View NE 1928 Archive: Steve Rothaug

The view of the Union Hall St. station platform is looking down from that same iron bridge.  The tracks were elevated in 1930-31 with the Jamaica East Elimination project. Info: Dave Keller


East of Union Hall Street station - Smith (166th) Street Signal bridge G-103
c 1928 Archive: Jeff Erlitz

Class MB45 1200 (Wason, 1905) on 10/5/1929. There were only five of these wooden bodied/steel framed MU baggage motors made. They probably spent most of their time shuttling between Brooklyn and Jamaica. They were all withdrawn from service in 6/1934. Photographer unknown. Info/Archive: Jeff Erlitz

View looking west from New York Avenue (Later N Y Blvd, then Guy R Brewer Blvd) on 12/16/1929. The Union Hall Street bridge is in the background. Further in the distance are the Washington (160th) St and Prospect (159th) St bridges. All three were built in 1903. This area, between Jamaica station and Hillside station, was put up on an embankment in 1930-31. Info/Archive: Jeff Erlitz

The new Union Hall Street station on 2/28/1931. The southernmost couple of tracks are not yet in service. Info/Archive: Jeff Erlitz

In the 1929 image above, looking east from the Washington St. iron bridge, note the half-filled-in turntable pit at the far right.  This turntable, when active, had an access track from the west and an access track from the east.  The one from the east was truncated and accessed the 2-story section shanty, seen in the image below.  As a matter of fact, the entire track layout has been reworked from the way it looks in the 1911 image below, as part of the Jamaica grade elimination project completed in 1913.  Research: Dave Keller

Jamaica turntable - Section House 1911
Archive: Art Huneke

What's unique about this structure is that the access track to the shanty was the turntable lead at one time.  The turntable track and girder support has been removed and the section house built ATOP the truncated end of the stubbed-out turntable lead, to allow the handcar to be set on tracks inside the building in the direction of travel instead of being alongside the tracks at a 90 degree angle and having to be manhandled out front onto the tracks whenever the car needed to be used.  Info: Dave Keller

4-4-0 No. 524 being turned on turntable at Washington St., Jamaica
View W 1904 Archive: Dave Keller

View of the turntable looking NW towards the Washington St. iron bridge.  The east turntable lead is still in place in the foreground, so the 2-story section house wasn't yet constructed. Emery's map of 1908 still shows the lead to the turntable as active, so construction of the section house would have happened sometime between 1908 and the 1911 image showing the section house. The elevated view of the structure would have been photographed from the Union Hall Street iron bridge, looking SW. Info: Dave Keller

The elevation is now complete and there is a train of mixed MP54s on the East Layup Track on 4/30/1931. Photo: William Rugen Archive: Jeff Erlitz
G5s (4-6-0) numbered in the 20’s-series pulls a string of 11 cars eastbound in the Summer’s early evening light in 1952 through Union Hall Street station, Jamaica.  Notice the old PRR keystone-style station sign still in place on the station’s covered platforms and in the far distance can be seen the overhead concourse at Jamaica station, accessing the various platforms.  W. J. Broschart photo, Dave Keller archive
