Sag Harbor Branch
 Data and images courtesy of Dave Keller unless as noted.




Sag Harbor dock c.1870 Archive: Art Huneke

SAG HARBOR BRANCH:  Built in 1869 from Manor (later Manorville) on the Main Line to the south shore and east to Sag Harbor to block the South Side Rail Road's planned route east from Patchogue.  In 1895, when the LIRR extended its route east from Bridgehampton to Montauk, the Sag Harbor branch was relegated to being a short line running between Bridgehampton and Sag Harbor.  Due to lack of ridership, the truncated branch was abandoned on May 3, 1939.     Research: Dave Keller
 Montauk Branch constructed from Manorville to Eastport then on to Bridgehampton and Sag Harbor in 1870.
There was no connection at Bridgehampton to Montauk until 1895.

The Sag Harbor Branch was built in 1870 and ran 35.25 miles from Manor on the main line to Sag Harbor . As shown on this 1879 map there was no railroad line running east of Patchogue. Bellport was served by a main line Bellport station which became Bartlett when Patchogue to Eastport Junction was built and Bellport received its own station. Map/ Info: Art Huneke		 Gas Car Shuttle Svc-Sag Harbor Br- ETT No. 4 - 09-15-35 (Keller).jpg (286271 bytes)
Gas Car Shuttle service  ETT No. 4 - Sag Harbor to Bridgehampton - 9/15/1935
SAG HARBOR BRANCH MAPS

Montauk Branch MP94-95.jpg (171267 bytes)

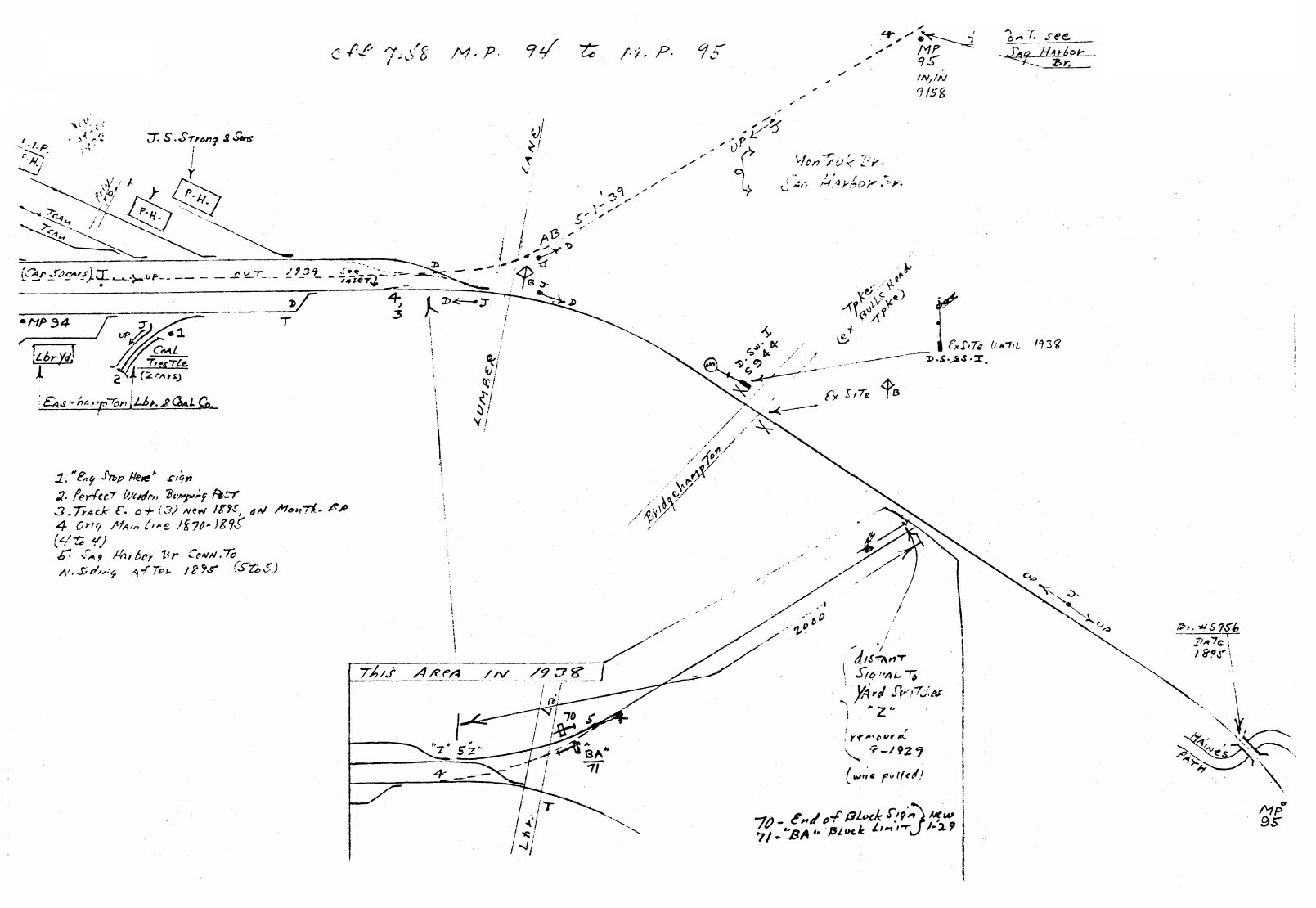

Emery map Montauk Branch MP94-95 Sag Harbor Branch cutoff

Emery Sag Harbor MP95-96

Emery Sag Harbor MP96-97 		Emery-Sag-Harbor_MP97-98.jpg (103197 bytes)

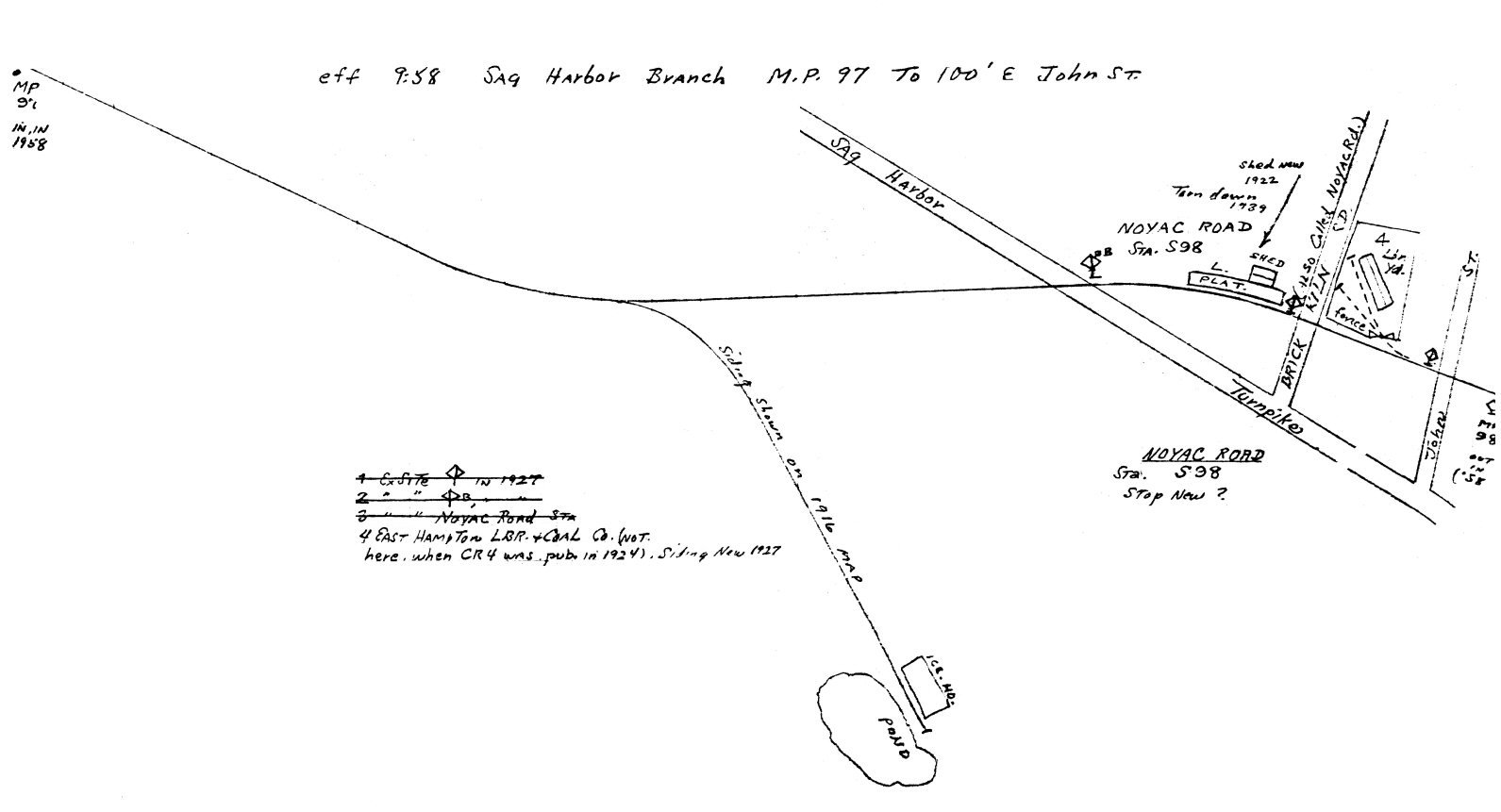

Emery Sag Harbor MP97-98 		Map-SagHarborBr-MP98-End-of-Track keller.jpg (218611 bytes)
Emery Sag Harbor MP98 to end of track
Emery Sag Harbor Branch composite map MP94-MP98 to end of branch -  Design: Steven Lynch
BRIDGEHAMPTON

OPENED: 6/1870, BURNED: 7/6/1884
2ND DEPOT BUILT: 1884, AGENCY CLOSED: 1958, DEPOT CLOSED: 1/59, RAZED: 5/64
3RD DEPOT WITH HI-LEVEL PLATFORMS BUILT: 2000-2001

Station-Bridgehampton-View S - c. 1910 (Keller).jpg (92047 bytes)
Bridgehampton Station view S c.1910 		Station-Bridgehampton-View SW -09-20-58 (Solomon for PSC-Keller).jpg (95357 bytes)
Bridgehampton Station view SW 9/20/58 (Solomon for PSC-Keller)
Station-Bridgehampton-Sag Harbor Covered Platform-View E - c. 1925 (Osborne-Keller).jpg (106906 bytes) Gas Car-PRR-Leased-4744-Sag Harbor platform-Bridgehampton-1936.JPG (45674 bytes)
PRR-leased gas car #4744 is laying up at the designated Sag Harbor platform across from the  Bridgehampton depot. View is looking east from the rear of a moving westbound train.  Bridgehampton depot is at the right – 1936.  These gas cars were used wherever the LIRR needed them in shuttle service.  One even ran on the Patchogue – Babylon “Scoot” for a period of time.  (Wm. Moneypenny - Dave Keller)
Bridgehampton station looks quite forlorn on this cold, winter's afternoon with snow on the ground. (above left) The view is east from the westbound high-level express platform.  The depot building is at the right with the double-bladed "BH" semaphore signal out front.  The eastbound express house is in the distance.  At the left is the designated Sag Harbor platform which sports a small shelter from the elements.  At the far left, an express car has been set out.  This image is from c. 1925, so the block office at "BH" was still in service, as evidenced by the semaphore blades still in place and steam locomotives were still making runs up the spur to Sag Harbor.  It's possible the express car was brought down from Sag earlier in the day by a local freight and spotted on the siding to be picked up by a westbound Montauk train. Note the twisted light fixture on the platform lamp closest to the camera at the right.  This was probably done intentionally to provide some directed light onto the express platform. (James V. Osborne photo, Dave Keller archive)

Bridgehampton Station view W from Rear of Train  6/20/55 (Faxon, Jr.-Keller)



Station-Bridgehampton-View E - 06-20-55 (Faxon, Jr.-Keller).jpg (81771 bytes)
Bridgehampton Station view E  6/20/1955 (Faxon Jr.-Keller)

Signal-BH Block Limit-Bridgehampton-View E - 04-1970 (Keller-Keller).jpg (87983 bytes)
Signal BH Block Limit - Bridgehampton view E 4/1970 (Keller-Keller)



Bridgehampton Station Shelter Sheds - Night Exposure view SW 7/30/76
 (Madden-Keller)

NOYACK ROAD

IN SERVICE: 1906 AS “LAMB’S CORNER” (per “East Hampton Star” via Richard Makse)
APPEARS IN SPECIAL INSTRUCTIONS OF ETT #49: 9/09/1908 AS “ NOYACK ROAD .” (Art Huneke data)
SHELTER SHED BUILT: 1922. OUT OF SVC: 5/03/39 AND RAZED WITH BRANCH ABANDONMENT.

Station-Noyack Rd.-Sag Harbor Branch - c. 1923 (Osborne-Keller).jpg (108335 bytes)
Noyack Rd. Station - Sag Harbor Branch c.1923 (Osborne-Keller)

SAG HARBOR

TEMPORARY TICKET OFFICE OPENED IN FREIGHT HOUSE: 5/1870.

1ST DEPOT UNDER CONSTRUCTION AT END OF AND PERPENDICULAR TO THE TRACK: 12/21/1870. OPENED: 1/1871. DEPOT WAS FOUND TO ENCROACH ON THE STREET AND THE BLDG WAS MOVED BACK A SHORT DISTANCE IN 2/1871. BURNED: 11/1873 AND REPLACED. (The burning is suspect data from V. Seyfried, based on photographic evidence to the contrary unless original depot was replaced after a fire by an identical bldg).   Research: Dave Keller

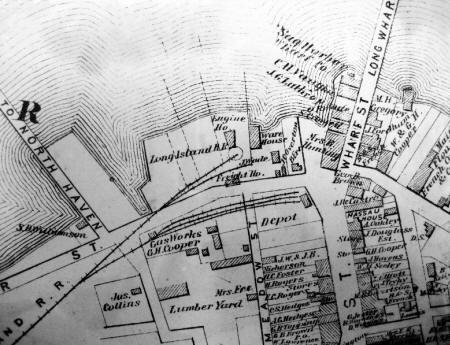

1873 Beers Sag Harbor map - Archive: SUNY Stony Brook

Long Wharf, Sag Harbor postcard - Yard and enginehouse (center right)
View S c.1910



DEPOT EITHER ENLARGED ON ORIGINAL SITE OR ENLARGED AFTER BEING MOVED TO S. SIDE OF TRACKS. DEPOT MOVED SOMETIME IN THE 1890s. (Photographic evidence from 1903 shows an enlarged depot building well-weathered. Enlargement of the structure may have been made PRIOR to the move.) DEPOT RENOVATED: 10/1908, WHEN MONEY FOR NEW DEPOT WAS DONATED. (This renovation is suspect data from V. Seyfried and makes no sense as construction for a new depot began the following year [1909]). OLD DEPOT USED AS TEMPORARY FREIGHT / STORAGE BLDG AFTER NEW STATION OPENED IN 1910 BUT BASED ON A VALUATION BLUEPRINT, WAS GONE BY c. 1920.

NEW BRICK DEPOT OPENED: 1910, AGENCY CLOSED: 1932. STATION AND STOP OUT OF SVC: 5/3/39 WITH BRANCH ABANDONMENT: 5/3/39. IN PRIVATE USE INTO THE LATE-1950S/EARLY 1960s WHEN IT WAS OFFERED FOR SALE. STRUCTURE RAZED: 1966

**EXPRESS HOUSE BUILT: 1900. RELOCATED OFF-SITE AFTER 1939 AND NOT USED FOR DECADES (BASED ON PHOTO EVIDENCE). IN PRIVATE USE IN RECENT YEARS (2003+) **FREIGHT HOUSE BUILT: ? RELOCATED OFF-SITE AFTER 1939 FOR PRIVATE USE  Research: Dave Keller    Photo: Sag Harbor Yards 1903 Hal Fullerton Archive: Suffolk County Historical Society-RMLI
Station-Sag Harbor-View SW-1878 (Brainerd-Huneke).jpg (45271 bytes)
Sag Harbor Station view SW 1878 (Brainerd-Huneke)

Station-Sag Harbor-View NW - 1903 (Fullerton-Keller).jpg (135380 bytes)
Sag Harbor Station view NW - 1903 (Fullerton-Keller)


The original Sag Harbor depot was constructed perpendicular to the end of track, similar to the second Montauk and today's Port Washington and Long Beach Stations.  Several years later, as the building was too close to the road, the depot was jacked up, rotated 90 degrees and relocated to the south side of the tracks a short distance west of end of track, and parallel to the main sometime in the 1890's (per Ziel's Steel Rails) and enlarged. It later burned and was replaced.  Research: Dave Keller


Sag Harbor Station  0-4-6T #327 view E -1905 Archive: Dave Keller

The locomotive was former NY & Manhattan Beach 0-4-6T built by Rogers in June, 1883 as #61 for the NY&MB.  It was renumbered #227 in the 1898 renumbering and was renumbered to #327 in 1905-06, being retired from service by 1912.  Research: Dave Keller
Sag Harbor Station bricklayers  - c. Summer 1909
Note: Natural gas tank at far right.

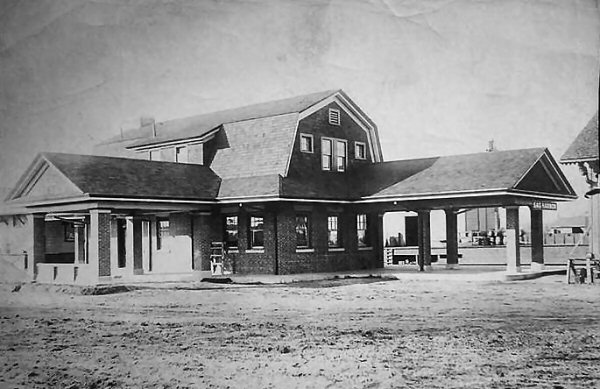

 Sag Harbor brick depot nearing completion just west of the relocated
older depot 1910. View NW
Sag Harbor Station colorized post card - View NW opened 1910

Station-Sag Harbor-View SE-c. 1925 (Osborne-Keller).jpg (80484 bytes)
Sag Harbor Station view SE c.1925  (Osborne-Keller)



Brill Gas Car 1134 at Sta - Sag Harbor-04-1939 (Keller Archive).jpg (70369 bytes)
Brill Gas Car #1134 at Sag Harbor station 4/1939 Archive: Dave Keller

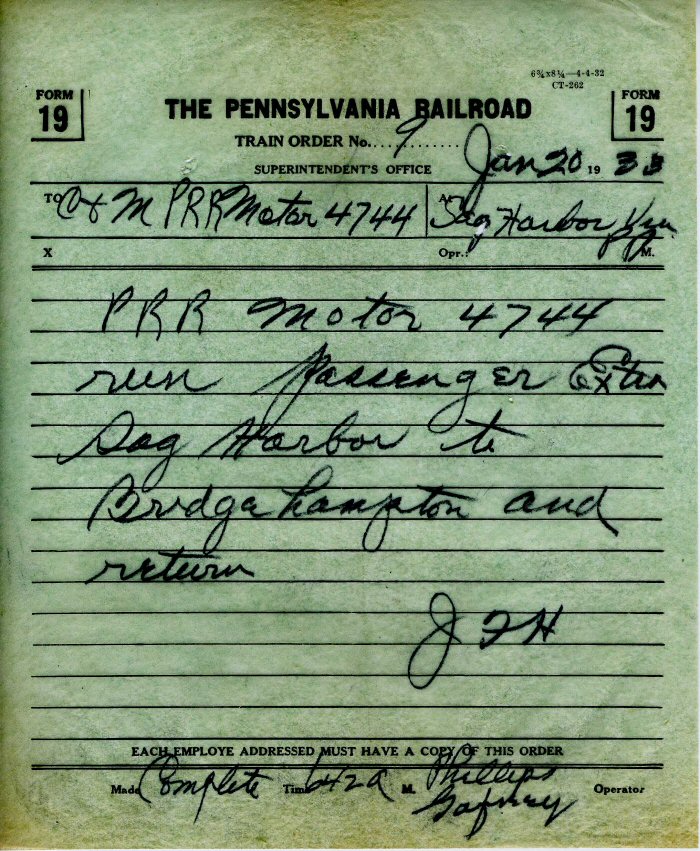

Form 19 PRR Gas Car #4744 - Sag Harbor  1/20/1933

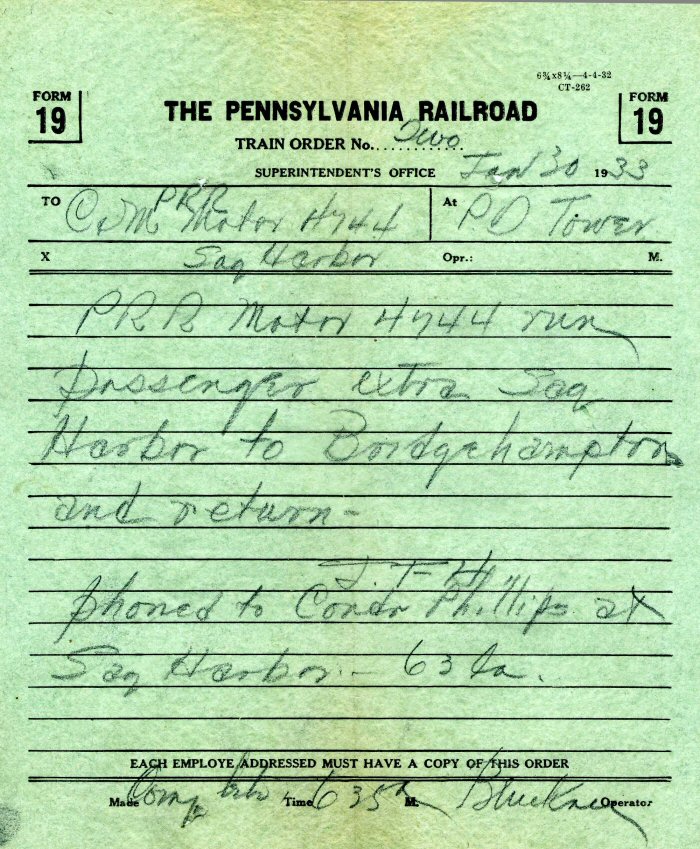

Form 19 PRR Gas Car #4744 - Sag Harbor
 1/30/1933 Archive: Dave Keller
Brill Gas Car #1134 Crew at Sag Harbor 4/1939 Archive: Dave Keller


Win Win Boerckel memo c.1968

Sag Harbor Form 19 -  last Train Order #71 -  5/02/1939 (Win Boerckel-Dave Morrison)
Note:  "Sag Harbor to Y" meant the train was cleared to run westbound from Sag Harbor to the start of double track at "Y" cabin east of Sayville.  It would have picked up additional orders via "PD" on the fly or at "Y" via T-box telephone if the cabin was unattended at the time. Research: Dave Keller

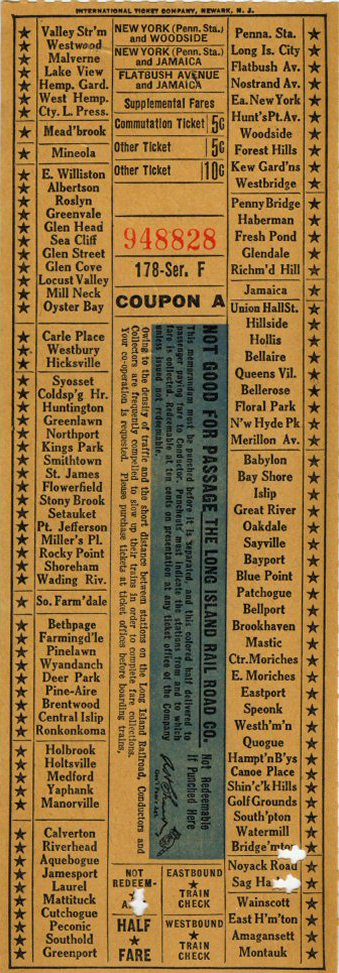

Sag Harbor Series F last cash paid receipt - Train #1922 last scheduled to run endorsed by Crampton-Conductor and Diedericks-Engineer 5/02/1939 (Win Boerckel-Dave Morrison)
Station-Sag Harbor-View S-1958 (Seyfried-Keller).jpg (61826 bytes)
Sag Harbor Station view S 1958 (Seyfried-Keller)
Sag Harbor station 8/05/1963 Photo: Brad Phillips

Station-Sag Harbor-View N-1964 (Schneider-Keller).jpg (64170 bytes)
Sag Harbor Station view N - 1964 (Schneider-Keller)

 Station-Sag Harbor-View S-1964 (Schneider-Keller).jpg (58964 bytes)
Sag Harbor Station view S -1964 (Schneider-Keller)
Sag Harbor Freight House c.1930 close-up Archive: Art Huneke  		Sag-Harbor-Station_Freight-House_c.1930_Huneke.jpg (52980 bytes)
Sag-Harbor Station and Freight House c.1930 Archive: Art Huneke
SAG HARBOR EXPRESS HOUSE

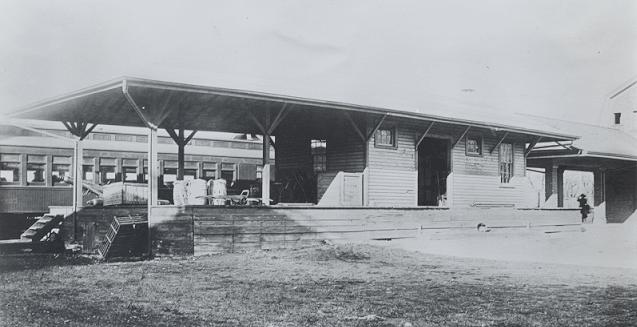

Sag Harbor Express House c.1918 Archive: Art Huneke  		Sag-Harbor-Station_valuation-blueprint_c.1916-1923_Huneke,jpg.jpg (88219 bytes)
Sag Harbor Station valuation blueprint c.1916-1923 Archive: Art Huneke
ex-Sag Harbor Express House at private location 1968 		ex-Sag-Harbor-Express-House_viewE_1984.jpg (66548 bytes)
ex-Sag Harbor Express House view E 1984
Sag Harbor Express House view E 7/15/2015 Photo: Dave Morrison 		Sag-Harbor-Express-House_7-15-15_Morrison2.jpg (86005 bytes)
Sag Harbor Express House view E 7/15/2015 view NE Photo: Dave Morrison

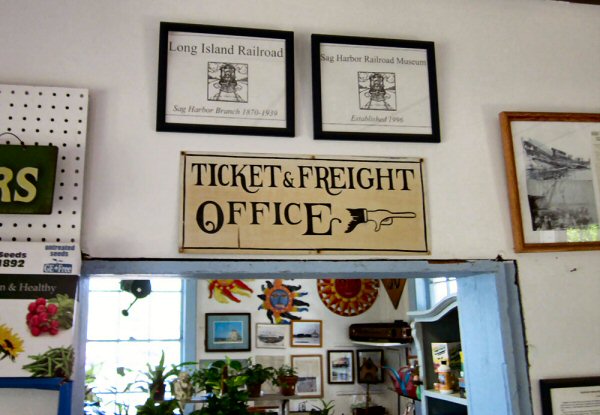

Sag-Harbor-Express-House_interior_7-15-15_Morrison.jpg (68833 bytes) Sag-Harbor-Express-House_interior2_7-15-15_Morrison.jpg (65982 bytes)
Sag Harbor Garden Center was established in 1996 - 11 Spring Street, Sag Harbor, NY 11963
