Bethpage


C-Liners #2402 #2003 Train #4012 at Bethpage - 9/22/1963 Archive: Mike Boland



Train 8057 westbound at quadrant-gated Stewart Ave, Bethpage  View S  4/19/15 Photo: Joe McMahon

CENTRAL PARK: ORIGINALLY OPENED AS “JERUSALEM” c. 1854. STATION STOP LOCATED ONE MILE WEST OF BETHPAGE JCT. DOES NOT APPEAR ON LIRR TIMETABLES BETWEEN 1842 AND 1855, HOWEVER IT DOES APPEAR IN AN APRIL, 1854 LIRR ADVERTISEMENT IN THE “New York Times.” POST OFFICE CHANGED NAME OF TOWN TO CENTRAL PARK IN 1867 AS IT WAS LOCATED MIDWAY BETWEEN HYDE PARK (LATER NEW HYDE PARK) AND DEER PARK. NAME OF STATION STOP VARIES AS FOLLOWS:

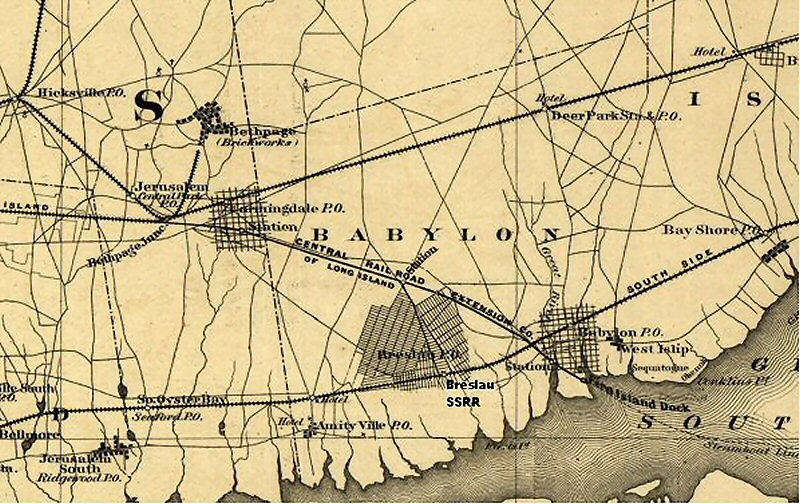

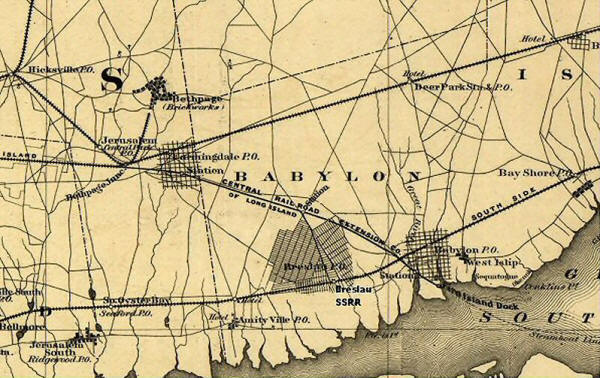

MAP OF 1873 = JERUSALEM
TT OF 1877 = CENTRAL PARK
TT OF 4/1878 = CENTRAL PARK
ETT AND TT OF 11/1878 = JERUSALEM
TT OF 3/1879 = JERUSALEM.
ETT OF 9/1879 = JERUSALEM

YET PHOTOGRAPH TAKEN OF DEPOT BY GEORGE BRAINERD IN SEPTEMBER, 1879 SHOWS “CENTRAL PARK” STATION SIGN ON DEPOT.
TT OF 7/1880 = CENTRAL PARK (TT info. courtesy of Art Huneke)

POSSIBLE FINAL CHANGE OF NAME ON LIRR TIMETABLES IN 9/1879.
2ND DEPOT BUILT: 1884, RENAMED “BETHPAGE”: 10/1/36.  Research: Dave Keller

Central Park Station 9/1879 (Brainerd-Morrison)

Bethpage  Broadway grade crossing MP28 View E 10/01/1944 (Weber-Morrison)

2nd Central Park Station 1905 Archive: Dave Keller
The team track is visible in the foreground, stubbing out at the station platform with no bumper! Notice in the right background, a woman is about to hang the mailbag on the mail crane!

Bethpage Station - Night 1952
Archive: Dave Morrison

Bethpage Junction 1911 Manual switches controlled by signal cabin "BG" Archive: Dave Morrison

Bethpage - Starlight Fuel Co. coal silo - View E- Vanderbilt Motor Parkway steel bridge in the distance. 10/01/1944 (Weber-Morrison)

Central Park Station post card 1913
 Archive: Dave Morrison

Central Park Station c.1920
Archive: Dave Morrison

BETHPAGE: BUILT: 1884 AS “CENTRAL PARK”, RENAMED BETHPAGE: 10/1/36. RAZED WITH OPENING OF THE NEW DEPOT.
2ND DEPOT OPENED: 10/12/57 (per NY Daily News article of 10/06/57) AGENCY CLOSED: 8/19/2009.
DEPOT BUILDING USED FOR STORAGE (Dave Morrison data). Research: Dave Keller

New Bethpage Station - 1957

Bethpage Station ground breaking - LIRRer 7/03/1957 Archive: Dave Morrison









LIRRer Bethpage Station  11/21/1956
Archive: Dave Morrison


Bethpage Station 10/06/1957
Archive: NY Daily News - Dave Morrison

Bethpage Station - LIRR Press release 10/1957
Archive: Dave Morrison

LIRRer 8/01/1957 Archive: Dave Morrison
Station-Bethpage -View NW - 1967 (Keller-Keller).jpg (92706 bytes)
Bethpage Station View N  1967
Photo/Archive: Dave Keller
Note the old-style, mid-track picket fence
still in use as late as this image.

Bethpage Station View N 4/08/2018
Photo: Dave Morrison

Bethpage Station View E 4/08/2018
Photo: Dave Morrison

Bethpage Station View SW 4/08/2018
Photo: Dave Morrison

Bethpage Station - pot belly stove 2/02/2018
Photo: Dave Morrison
Bethpage Station - ATM 10/03/2017

Bethpage Station  View W 7/01/2020
Photo/Archive: Al Castelli


Bethpage Station View S - 7/01/2020
Photo/Archive: Al Castelli

Bethpage, Broadway - View W 7/01/2020
Photo/Archive: Al Castelli

Bethpage-Station_Rotary-Park_1955_viewE_4-08-2018_Morrison.jpg (124650 bytes) Bethpage-Station_Rotary-Park_ViewNE_4-08-2018_Morrison.jpg (106858 bytes) Bethpage-Station_Rotary-Park_Moon-Landing_4-08-2018_Morrison.jpg (143987 bytes) Bethpage-Station_Rotary-Park_Plaque-Moon-Landing_4-08-2018_Morrison.jpg (135193 bytes)
Bethpage Rotary Park - July 31, 1997 Plaque commemorating the 28th Anniversary of the Apollo 11 Lunar Module Moon Landing built by Grumman Corp., Bethpage. 4/08/2018 Photos: Dave Morrison
 Bethpage Maps - Grumman Station
Emery-Bethpage-(Central Park)-1916.jpg (204010 bytes)
Emery Map Bethpage (Central Park)  1916 Archive: Dave Keller
Emery Map MP26-27  05/1958 Archive: Dave Keller
Grumman Aug1943_ViewW_Weber-Morrison2.jpg (74567 bytes)
Grumman Station - View W 8/1943 (Weber-Morrison)
Grumman Aug1943_ViewS_Weber-Morrison3.jpg (50207 bytes)
Grumman Station - View S 8/1943 (Weber-Morrison)
Grumman Nov 1944_ViewE_Weber-Morrison4.jpg (72217 bytes)
Grumman Station - View E 11/1944 (Weber-Morrison)
Grumman Nov 1944_ViewN_Weber-Morrison5.jpg (104930 bytes)
Grumman Station - View N  11/1944  (Weber-Morrison)
Grumman Station Crossing - Shelter Sheds View W 1951 Photo/Archive: Art Huneke
Emery Map MP27-28  05/1958 Archive: Dave Keller
Emery Map MP28-29  05/1958 Archive: Dave Keller
LIRR MP 27- M28 Sidings Map - 1966

Bethpage Map 1950 Drawing: Jim Boerckel
Archive: Dave Morrison

Old South Oyster Bay Rd crossing relocated 1951
view S 8/15/2015 Photo: Dave Morrison

Long-Island-Railroader_March-April-1951_s.OysterBayRd_Dave Morrison.jpg (222944 bytes)
Long Island Railroader March-April 1951
South Oyster Bay Rd, Archive: Dave Morrison

A siding was installed for the new General Motors Parts Distribution warehouse on June 1, 1965. The switch was interlocked, becoming B Tower Number 11, the eastbound home signal, Number 8l, was moved west 385 feet. Low home signal number 8r was installed governing movements from the siding.


Bethpage G.O. 12-2 - GM siding 5/27/1965 Archive: Art Huneke
Bethpage - GM interlocking 1966
Archive: Art Huneke


Bethpage GM Parts siding install 6/01/1965 1Photo/Archive: Art Huneke

LIRR #166 Train RF-65 at GM siding, Bethpage View E 4/1987
RF-65, with the LIRR #166, waits for the signal to depart GM siding to proceed west. Although "B" Tower, which can be seen in the distance, was still manned, most movements were already being controlled remotely by Divide Tower in Hicksville. Within a few months, the third rail seen in the photo will be live, regular electric service will begin, and B Tower will be permanently closed.
April, 1987.  Info/Photo/Archive: Jay Bendersky


“B” TOWER:1 BETHPAGE (JCT. OF CENTRAL BRANCH EXT. TO MAIN LINE) WOODEN TOWER OPENED 8/21/25, SOUTH SIDE OF TRACKS. SAXBY & FARMER 24 LEVER
MECHANICAL MACHINE. PERMISSIVE BLOCK ASPECT ADDED TO BLOCK SIGNALS: 6/25/28. ADDITIONAL US&S 5 LEVER STYLE TC TABLE MACHINE TO
CONTROL “PW” IN SVC: 7/29/30. BOTH MACHINES OUT OF SVC: 5/28/36 AND TOWER RAZED ON ACCOUNT OF CONSTRUCTION BETHPAGE STATE PARKWAY.

BE CABIN: BETHPAGE JCT. TEMPORARY BLOCK STATION BUILT 1925, SOUTH SIDE OF TRACKS, JUST WEST OF CONSTRUCTION SITE, FOR USE DURING CONSTRUCTION OF “B” TOWER. CLOSED 8/21/1925 WITH OPENING OF “B” TOWER.


"B" Tower:1 Bethpage and "BE" Cabin - View NW  7/1925 (Osborne-Keller)

Tower-B-Bethpage_c.1928_Osborne.-Keller.jpg (67254 bytes)"B" Tower:1 Bethpage View W  c.1928 (Osborne-Keller)

This is the first "B" tower constructed in 1925. Looking west in James V. Osborne's c. 1928 image we see the Long Island Motor Parkway trestle just visible in the distance beyond the semaphore block signals. The switch to access the Central branch is in the immediate foreground and appears to be set for a westbound train. This tower's site was smack-dab in the way of the planned parkway to access the new Bethpage state park in 1936. As a result, the 1925 wooden tower was razed and the replacement brick tower constructed slightly east to allow building of this parkway and railroad girder trestle overhead. Compare the 1925 blueprint with the 1936 blueprint for location of tower versus location of parkway. In this image you can see the tower and tracks were built on an embankment with the surrounding ground at quite a lower level from the tracks. It was probably considered an ideal spot for the girder trestle for the parkway, as special grading of the ROW probably didn't have to take place and the tracks could stay pretty much undisturbed during the bridge installation. (Dave Keller data)

The photo was taken by block operator James V. Osborne from the back of a moving train eastbound on the Central branch.  Note the smoke from the locomotive that has just passed.! Main line tracks are to the right.  Long Island Motor Parkway trestle is visible in the distance.

To the right of the tower is "BE" temporary block office cabin that handled the switches and signals while the tower was under construction.  It's probably the only view ever taken of that temporary cabin.

I'd say the image was shot July of 1925, as it looks nearly completed. Info: Dave Keller

BLUEPRINT-BETHPAGE-JCT. - 1925_Keller.jpg (35627 bytes)
Bethpage Junction Blueprint 1925 Archive: Dave Keller
BLUEPRINT-BETHPAGE-JCT. - 1936_Keller.jpg (59849 bytes)
Bethpage Junction Blueprint 1936 Archive: Dave Keller

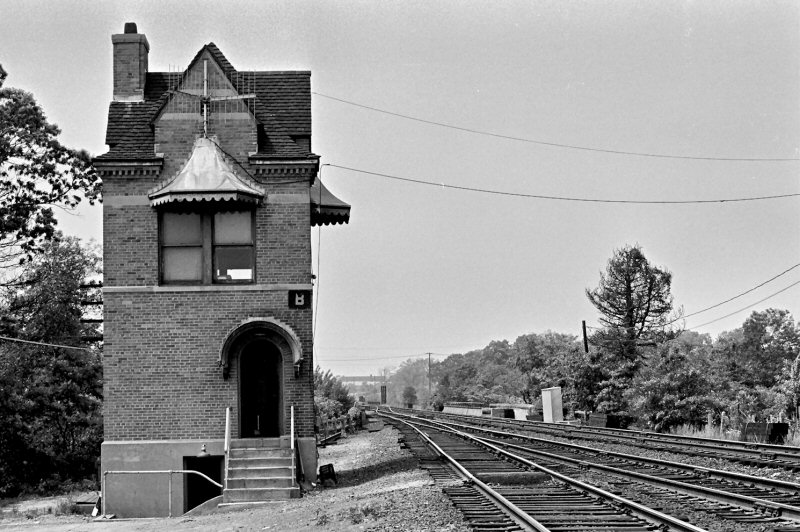

"B" TOWER:2  BETHPAGE REPLACEMENT BRICK TOWER 230’ EAST OF FORMER LOCATION AND SOUTH SIDE OF TRACKS. INTERLOCKING RELOCATED 85’ SOUTH OF FORMER LOCATION ON ACCOUNT COMPLETION OF BRIDGE OVER BETHPAGE STATE PARKWAY. 19-LEVER US&S MODEL 14, STYLE F, ALL ELECTRIC MACHINE IN SVC: 5/28/36.
UNATTENDED BLOCK SIGNAL IN SVC: 11/1/37. OUT OF SVC: 4/27/87.

Tower-B-Model Board-Bethpage Jct-3-18-79.jpg (44552 bytes)
Tower B Model Board
Bethpage Junction 3/18/79
Jeff Erlitz photo, Dave Keller archive
Tower-B-Interlocking Machine-Bethpage Jct-3-18-79.jpg (64526 bytes)
Tower B Interlocking Machine Bethpage Junction 3/18/79Jeff Erlitz photo, Dave Keller archive
Tower-B-MP15 155,164,Frt-Entering Central Br-Bethpage Jct-3-18-79.jpg (80598 bytes)
Tower B LIRR MP15 155, 164, Freight entering Central Branch - Bethpage Junction 3/18/79 View NW See Emery Map MP28-29 for location Wm. Madden photo, Dave Keller archive

PRR E3sd  4-4-2 #2999 eastbound passing "B" Tower, Bethpage 1930's Archive: Dave Keller
K4s #5406 and Sunday-only train #4229 westbound past "B" Tower  Bethpage Jct. 5/11/47  (G. E. Votava photo)  (Note the white-painted smokebox!) Archive: Dave Keller (1)
LIRR #25 & Train #4227 Central Islip State Hospital Train 6/49 elevated view from LI. Motor Parkway overpass view E toward Tower B Archive: Dave Keller
Warren L. Kessler, Inc  LIRR #1558 RS3 Westbound in 1957 Photo: Joe Hagan (4)
LIRR C420 #221 Westbound commuter accelerates away from "B" Tower after brief stop for a signal at Bethpage, NY 05/06/1967

LIRR  #608 08/01/1972 westbound
 Photo: Brian Woodruff

LIRR #1520 RS2 Westbound freight switching Sturtevant Coal at Broadway Ave.

LIRR #455  08/01/1972
Photo: Brian Woodruff

LIRR #1551 Eastbound work train running against the current of traffic on mainline #1
The low home (dwarf as others call it) is visible in the foreground.  The bridge abutment in the close distance is Central Avenue.  The spur went to General Motors when there was a warehouse there.  Currently, it ends at the back parking lot for the Sleepy's warehouse. I would assume that this siding was taken out when the mainline was electrified and control of the branch was taken over by Divide.  Note the train order signal attached to the top head of the position light home signal Archive: Joe Tischner (2)





LIRR #1552 Westbound
Archive: Joe Tischner (3)

 NYA #271 Westbound past "B" Tower  Bethpage Jct. 09/19/2008  Photo: Joe Tischner

B Tower  #4250 eastbound 01/1979
Photo: Jim Gillin


B Tower MP15AC #165 - View SE c.1987 Photo/Archive: Bill Mangahas

B Tower hooping orders to the Engineer c.1987 Photo/Archive: Bill Mangahas

B Tower hooping orders to the Conductor c.1987  Photo/Archive: Bill Mangahas

ALCO RS3 #1557 is pulling a train eastbound under the signal bridge on the Main Line past "B" tower, Bethpage, NY in 1957. The track in the foreground is the start of the Central branch. At the left is a section house and beyond it, "B" tower. (Jules P. Krzenski photo, Dave Keller archive)
Standing on the site of the older "B" tower. Bethpage Parkway Bridge view W 4/08/2018
Photo: Dave Morrison
Bethpage Parkway Bridge view S 4/08/2018 Photo: Dave Morrison
Bethpage Parkway Bridge view N
4/08/2018 Photo: Dave Morrison
Bethpage Parkway Bridge 1936-Builder-Plate
view N 4/08/2018 Photo: Dave Morrison
"B" Tower View NW 4/08/2018
Photo: Dave Morrison
B-Tower _manual- switch_4-08-2018_Morrison.jpg (158923 bytes)
Manual Switch at "B" Tower 4/08/2018
Photo: Dave Morrison
"B" Tower - Manual Switch - View SE 4/08/2018
Photo: Dave Morrison
Notes:

(1) Compare this early shot taken by George Votava looking east toward “B” tower with Joe Tischner’s photo, marked (3).

Bear in mind Votava’s view was shot from the remains of the old, unused, Long Island Motor Parkway overpass over the LIRR AND over Central Ave. (Formerly Central Park Ave.)

(2) Joe Tischner’s shot marked (2) is looking the other way.  Joe mentions that the bridge abutments (shown in line with the 2nd hopper) are those for the overpass over Central Avenue . Votava’s photo (1) shows Central Ave (formerly Central Park Ave. ) AT GRADE. See how close to Central Ave. the siding began? Compared to the old photo above, it would have passed right in front of the door to the crossing watchman’s outhouse had it been laid prior to elevating the ROW and tracks and/or depressing the crossing of Central Ave. or a combination of both to make the grade less steep for trains to climb!  Dave Keller

(3) This shot is looking in the same direction as the old shot marked (1).  Look at the tower in the right background and siding branching off in the foreground and compare to Votava’s photo, using the tower in the right background for reference . . . . . . no siding back then, of course and Central Ave. was at grade.   Input: Dave Keller

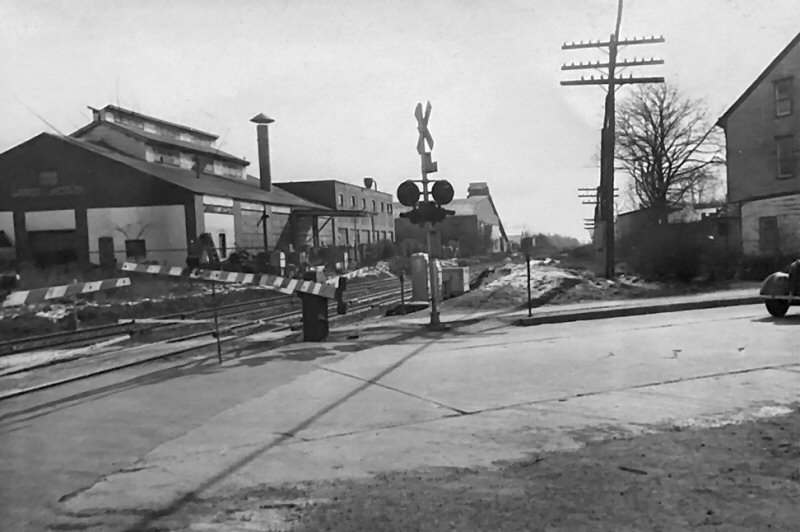

(4) Passing Warren L. Kessler, Inc., 300 Broadway Ave., Bethpage, NY  Manufacturer of  lamps, candle holders, etc.

In l939 (the company operated from 1938-1978 )Warren Kessler built a factory on the site of the Feuchsel Pickle Works, located north of the railroad tracks, east* of Broadway.  This company manufactured lamps and lighting units for all the American embassies around the world.  Exquisite Kessler lamps were included in the remodeling of the Truman White House. Motto in l946 "What Bethpage Makes - Makes Bethpage."  Warren L. Kessler, Inc.  Manufacturers of lamps and decorative accessories.  Known throughout the nation for exquisite glass products. Source: Encyclopedia of the Unincorporated Village of Bethpage

Kessler Empire Style Candelabra Lampe













Bethpage-CVS-Broadway-formerKesslerWorks-01132010-AlCastelli.jpg (51756 bytes)In the year 2000, a CVS drug/convenience store was built on the site of the Kessler factory east of the tracks on 300 Broadway Ave.

Photo: Al Castelli

Site of Warren Kessler Inc. manufacturer of hand-blown lamps & vases 1938-78 that have graced the White House and U.S. Embassies worldwide
Donated by the Kessler Family

Photo: Al Castelli



(5) The General Motors siding was the interlocked siding by B Tower east of Bethpage. The crews used to have to tie up the interlocking to switch it, by using the block operator to throw the switches for them. Quite interesting! The switch was removed probably when the line was electrified. As mentioned, the building still stands, but it is not GM anymore. The building is now a Sleepy's mattress.  Info: Pat Scopelliti
