Note 1: 320 & 322.2, built by Baldwin. Retired 320 (11/23/1959), 322.2
(8/27/1958) Note 2: 322.1 was built by the carshops of the LIRR. The
carbody was sheathed with steel in March of 1927.

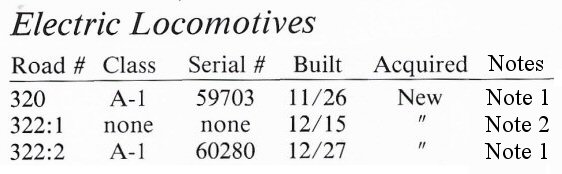

Information: Electric Locos page 68-69 Diesels of the Sunrise Trail
Author: John Scala |
|
#320, the
small electric switcher, entered service at Morris Park Shops in 1927. In
addition, there were TWO units numbered #322, the first one was built in
1912 and was also retired in 1927. The 2nd one was built in 1927 and was
retired in December, 1958. Info: Dave Keller

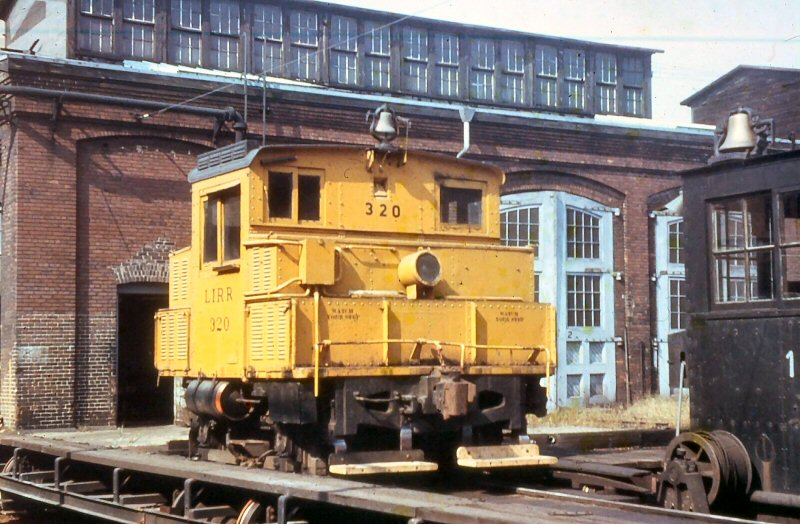

On the
transfer table at the Morris Park Shops in the 1950's.
|

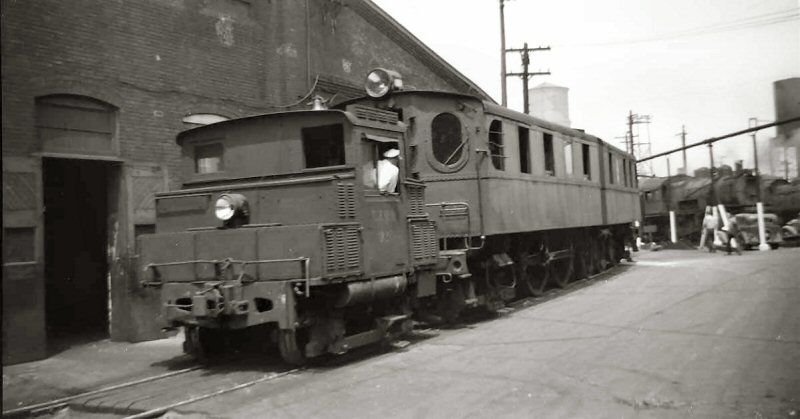

LIRR #320 with DD1 c.
1946
Archive: Dave Keller
|

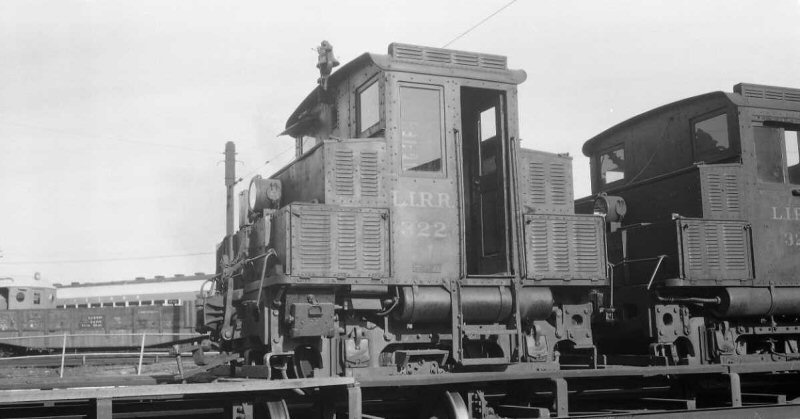

LIRR #322, #320 Morris
Park shops transfer
table 12/31/1949
Archive: Dave Keller
|
LIRR H6sb #304 A-1 #320 Morris Park shops c.1932
Archive: Jeff Erlitz
|
LIRR H6sb #304 (and #300)
were removed from the roster in 1932. The cover plate is missing above
the builder's plate, so #304 was no longer under her own power and may have
been in the process of being removed, making this image c. 1932. Dave Keller
|
LIRR #320 Morris Park roundhouse 1939
|

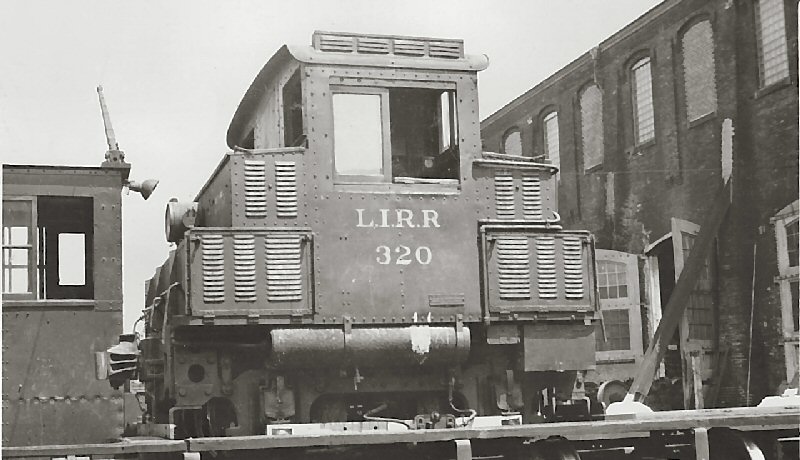

LIRR #320 A-1 6/29/1949
Archive: Jim Gillin
|
LIRR #320 Morris Park shops transfer table
|

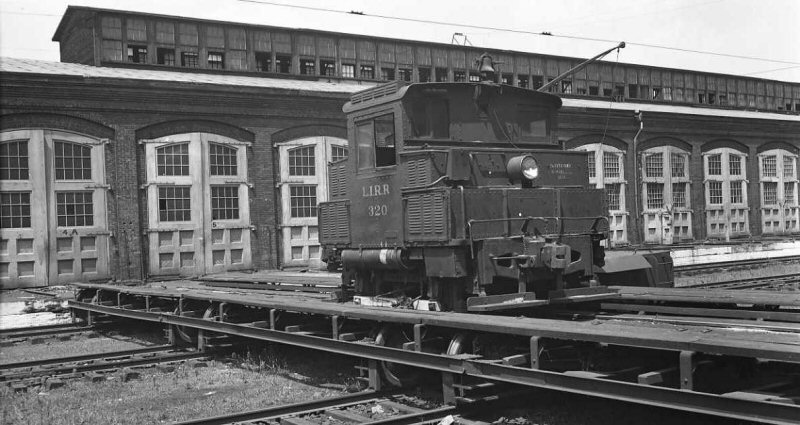

LIRR #320 Morris Park shops transfer
table 6/26/1949 Archive: Dave Keller
|

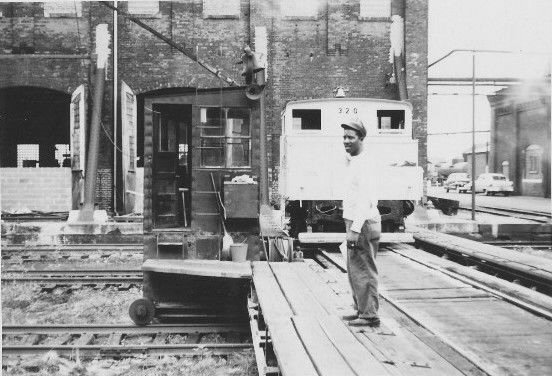

LIRR #320 A-1 Morris
Park Shops c.1955
|

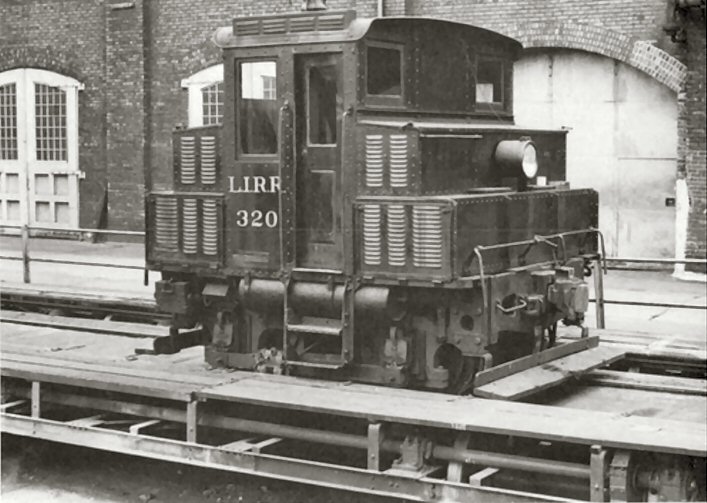

LIRR #320 Morris Park c.1949
|
Electric shop switcher, Morris Park, ca. 1949
(photo left) Shop switchers, be they steam, diesel or electric, have always been
diminutive affairs. Rarely do they have to drag around more than one dead
engine or car at at time, so the need not be powerful or fast. They must,
however, be as short as possible, in order to fit onto a turntable or
transfer table with whatever they may be moving around. The LIRR has operated
several electric shop engines, one being a homemade job that was created by
the simple expedient of mounting a cab, controls and couplers on
a MU truck. No. 320, shown here, was more sophisticated; it was built by
Baldwin and equipped by Westinghouse in 1927 and worked the Morris Park
Shops until 1958. All engines are now small diesels.
Photo: James V. Osborne Archive: Brooklyn Public Library
More A-1 Electrics at Morris Park Shops |

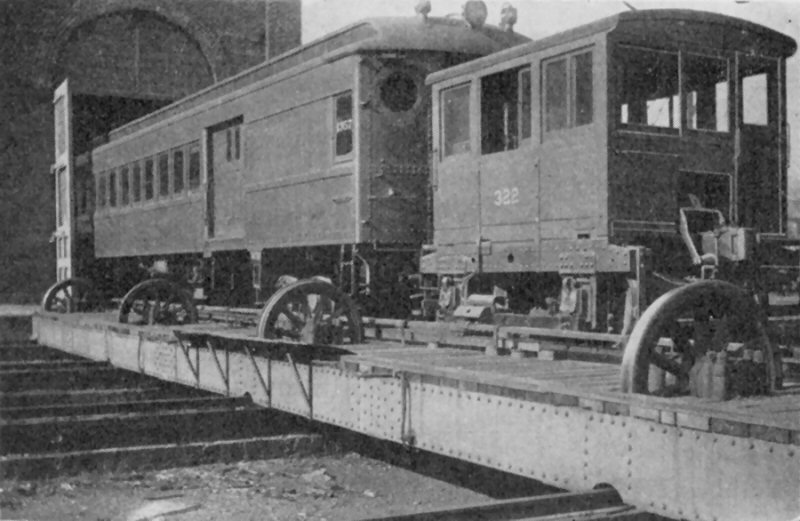

LIRR #322 Morris Park Park transfer table 12/1916 Archive:
Art Huneke
|

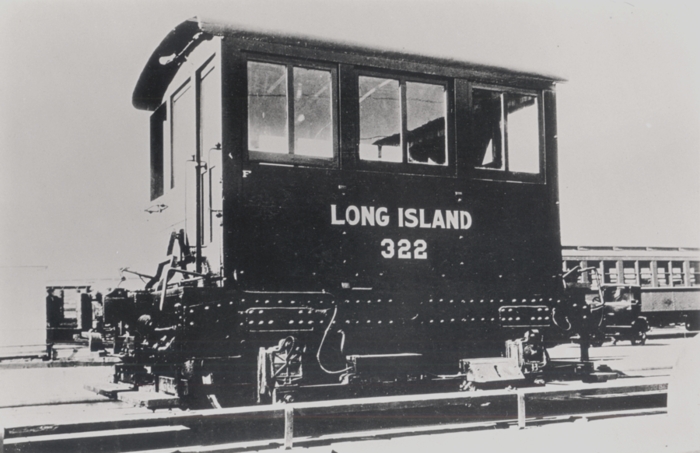

LIRR #322 The first A-1 in service in 1912, gone in 1927 Archive: Art Huneke
|

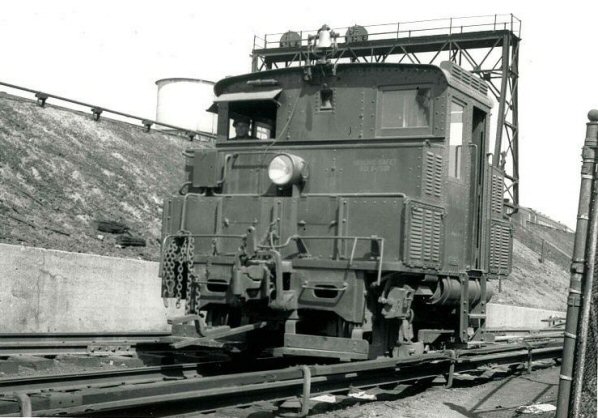

LIRR The second A-1 #322 Morris Park yard entrance,
in service
1927-1958
|

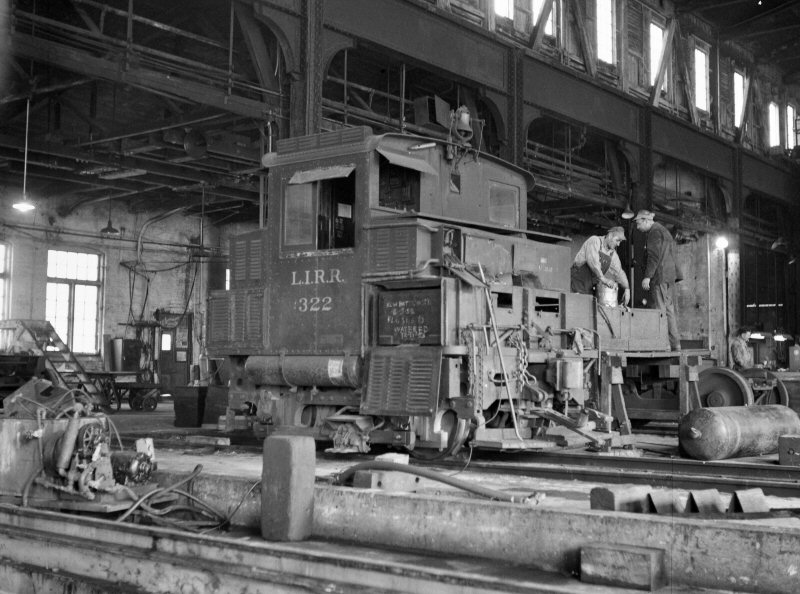

A1 Shop Switcher #322 Morris Park Locomotive shop 4/23/1955
(Faxon,
Jr.-Keller)
|
LIRR AA-1 ELECTRICS
|
"From Ron Ziel's: Electric Heritage of the Long Island Rail Road 1905-1975"
The first ever PRR class AA-1 B-B built 1905
as an electric experimental boxcab engine #10001. Later renumbered PRR #3950 and then LIRR #323.
It was used to
explore the concept of third-rail
electrification for Penn Station and later worked the LIRR car floats May, 1916 until scrap in July, 1937. Info: Dave Keller
|
|

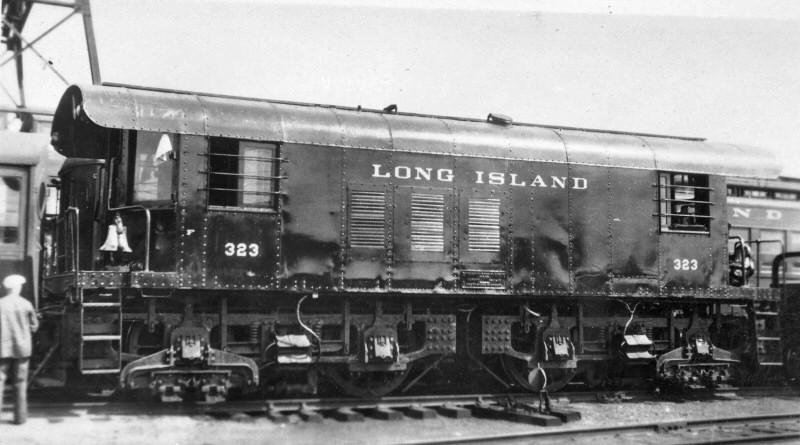

AA-1 electric #323 "PHOEBE" at Morris Park shops 7/09/1927
(Votava-Keller)
|

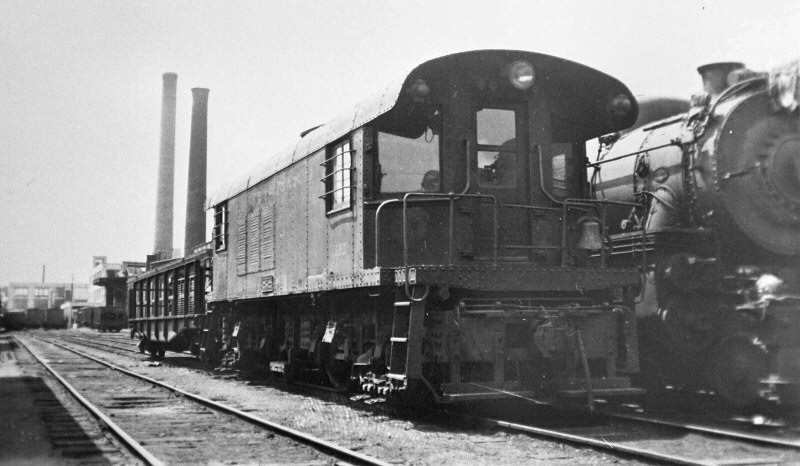

AA-1 electric #323
"PHOEBE" at Morris Park
shops c.1935 Archive: Dave Keller
|

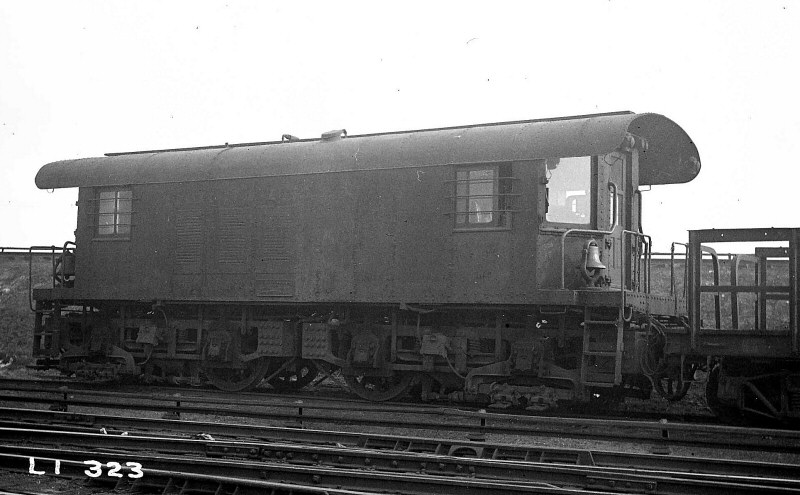

AA-1 electric #323 "PHOEBE" at Morris Park
shops 8/10/1936 Archive: Dave Keller
|

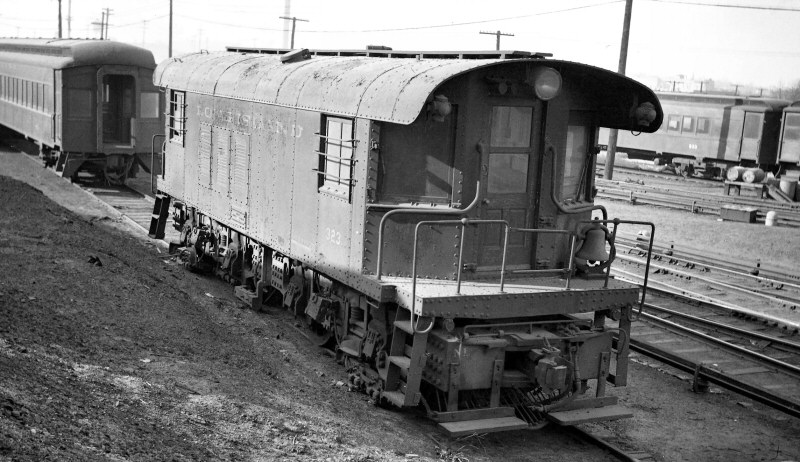

AA-1 electric #323
"PHOEBE" at Richmond Hill storage yard 3/06/1937 to be scrapped
in July, 1937 (Winslow-Keller)
|
The LIRR AA-1
depicted above was LIRR's #323 "Phoebe"; the only one built by PRR's
Juniata Shops. It was always accompanied by her compressor (ex-test
gear) car which also served as a reacher in spanning long gaps in the all-essential third rail.
Info: Dave Keller

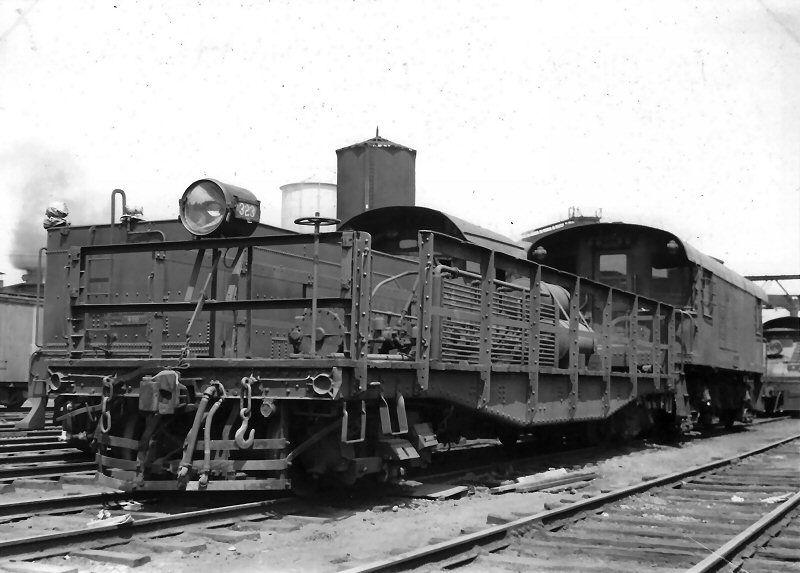

AA-1 #323 at Morris-Park
5/10/1936 (Rugen-Boland)
|
LIRR B-3
ELECTRICS
|
Originally classed as
BB3, but were changed to just B3. They operated under overhead wire
and were used exclusively on the Bay Ridge branch which had catenary
overhead wire. When the electrification was removed, the B3
units were towed to Morris Park Shops and remained there lined up along the
embankment until they were sold to the scrapper. (See color photo below) Note: Electric current
turned off for last time over entire line: 12/31/58
These are the same type
units you would see operating in Sunnyside Yard for many years later, with
"Pennsylvania" stenciled along the sides. This class were
nicknamed "rats." Info: Dave Keller
Class B3 Electric
Roster #324-337 built 8/26 (except #331 7/1926) Originally delivered as
married pairs and numbered 324A&B, and classed BB-3. Later re-classed to
B-3. 325, renumbered to 328, (10/1953), 324, 325 & 332 sold as-is to PRR
2/24/1954. Info: "Diesels of the
Sunrise Trail" by John Scala
|

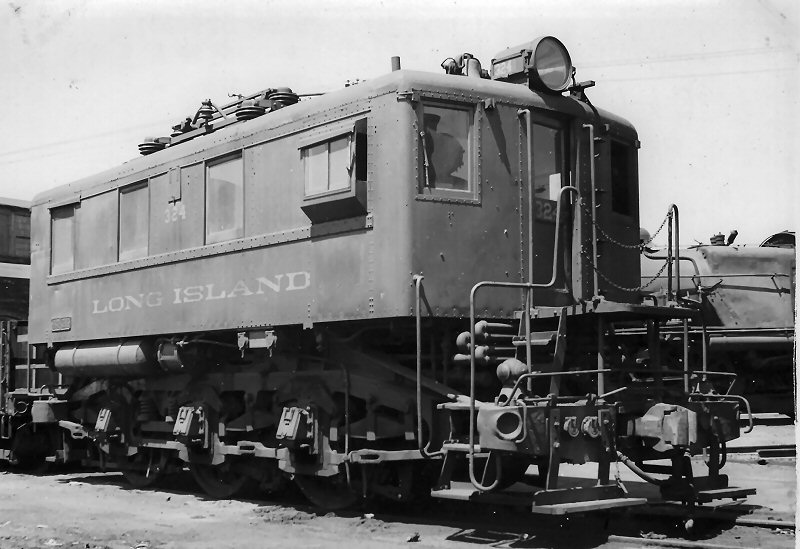

B3 #324 5/12/1940 (Votava-Boland)
|
The B3 electrics #327, #329 have been taken
out of service and are on one of the back layup tracks in Morris Park yard,
against the Montauk branch embankment. The
Richmond Hill Storage Yard is on the other side of the embankment.
View NE 11-11-1955 (Rugen-Huneke)
|

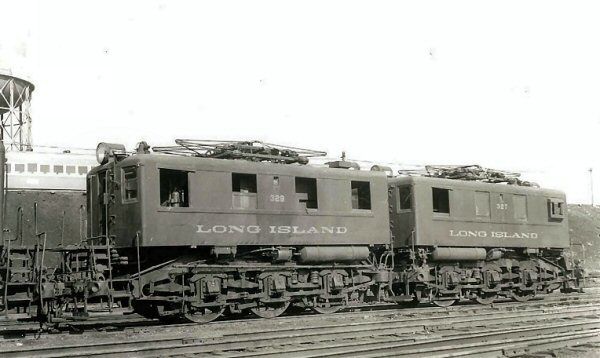

B3 Electrics #327, 329 at Morris Park shops 1955 view NE
|
B3 #328, 329 3/26/1950
(Votava-Boland)
|

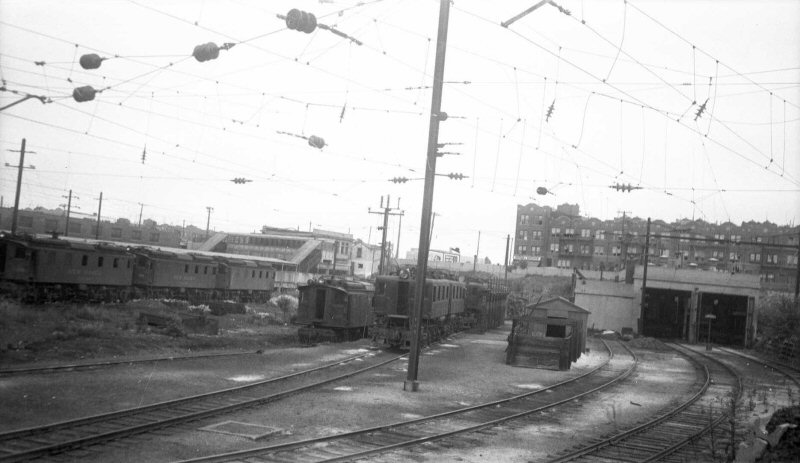

B3 #329 NH Loco #0109 et. al. Loco Shop Bay Ridge 7/1939
|

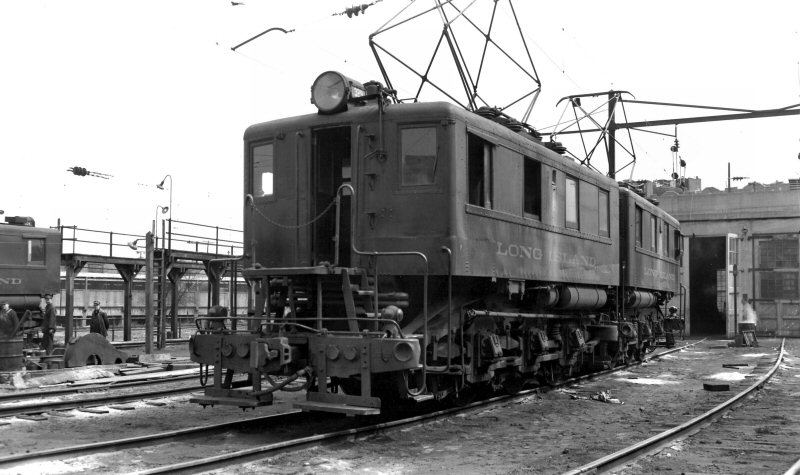

B3 #329, 328 coupled in front of Bay
Ridge
engine house 3/26/1950
|

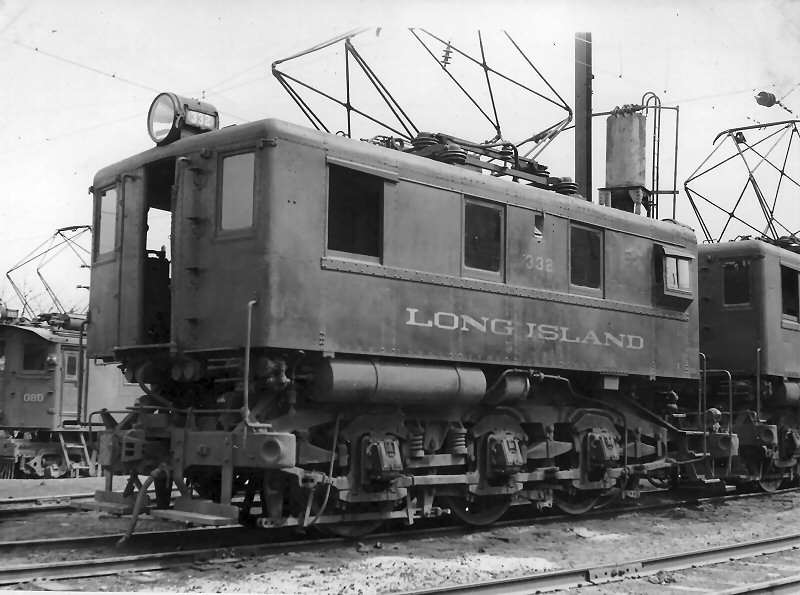

B3 #332 3/26/1950 (Votava-Boland)
|

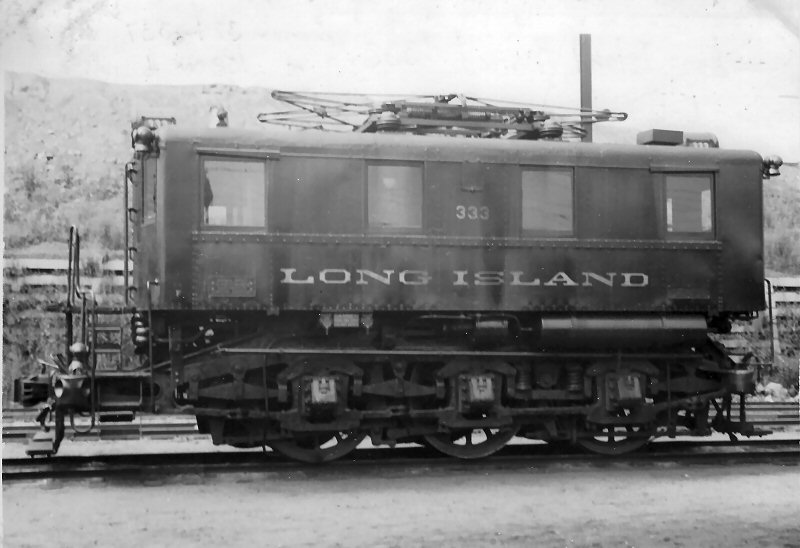

B3 #333 7/25/1938 (Votava-Boland)
|
B3 #336 Freshly painted upper body in Bay
Ridge yard 11/18/1934
|
B3 #337, 334 freight train Bay Ridge 1936
|
B3 #337, 325 coupled in yard switching
freight
with idler car Bay Ridge 4/08/1946
|
Photos in this section:
Archive: Dave Keller unless otherwise noted.
|
|
The "Odd
D" was the original forerunner of the DD1. "D" being the
designation used by the PRR for their 4-4-0 wheel arrangement.
While an electric loco, the "Odd D" was still a 4-4-0 wheel
arrangement and was classed accordingly. As the DD1s were two units in a pair (A and B) units and both having
the 4-4-0 wheel arrangement, they were classed "DD".
The "Odd D" was a one-of-a-kind unit hence the name
"Odd." It was used on the LIRR for test runs along the Central Branch
extension east of Garden City. A mile or so of overhead wire was
installed and the loco, using a pantograph, ran test runs pulling passenger
cars. Research: Dave Keller
|
LIRR DD-1
ELECTRICS
Diesels of the Sunrise Trail
John Scala's roster states the DD1s arrived 1927 to 1944, with the majority
arriving 1927 to 1929. |
Pre-1939 (1938)
scheme before repainting, with hood intact. (road number on
front door and
Penn Roman lettering with serifs on the body)
|

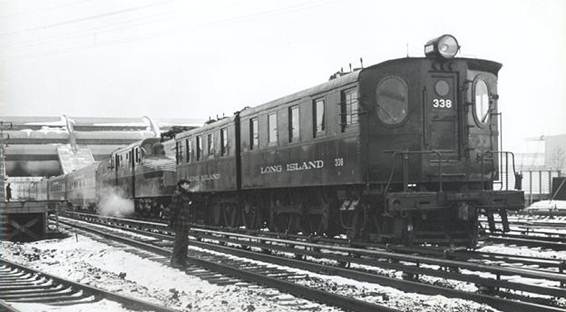

DD1s pulling a display train of PRR equipment
for set-up at the railroads on Parade exhibit
|
DD1 #338
|

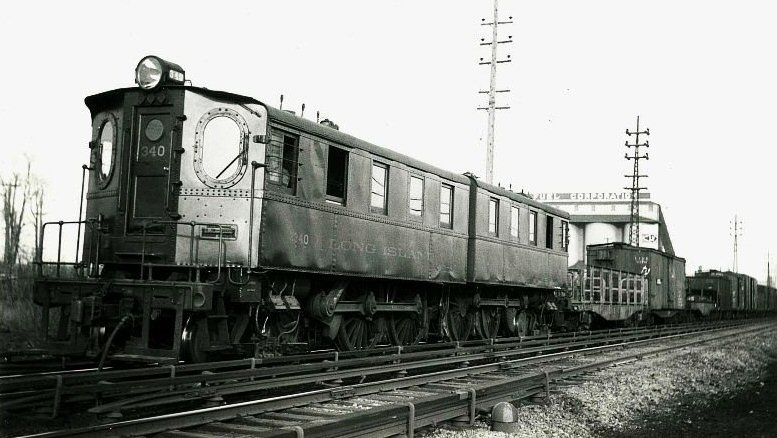

DD1 #340
Hillside pre-Tichy prior 11/1949
|

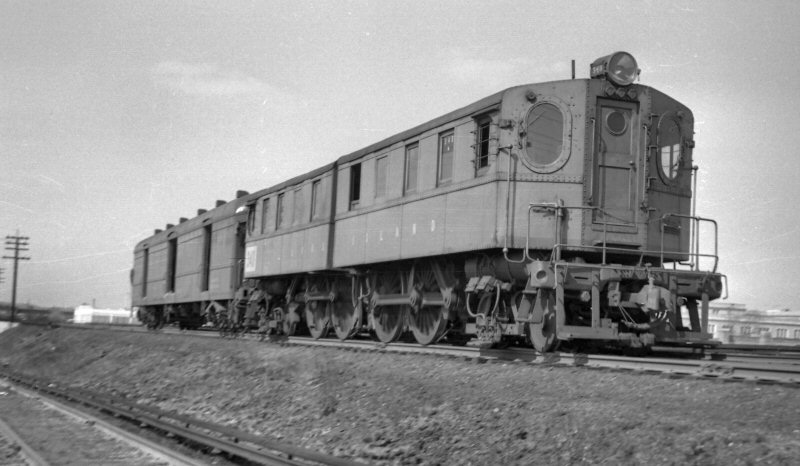

DD1 #340 Tichy scheme - pulling
horse car from Brandywine
Stables near Jamaica 1950 Archive: Dave
Keller
|

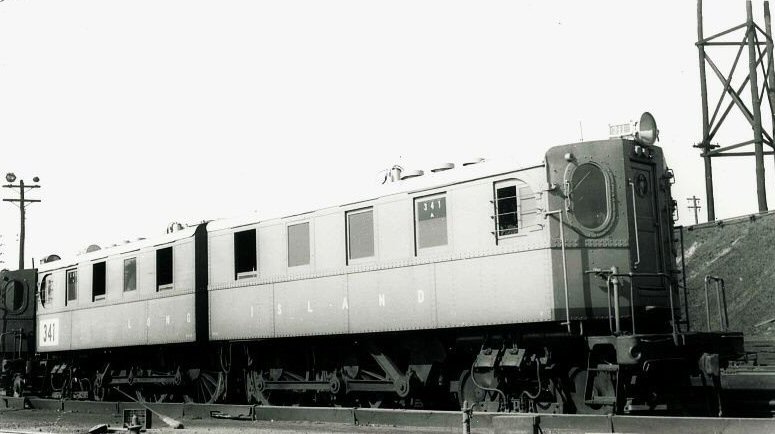

DD1
#341 Morris Park Tichy scheme
|

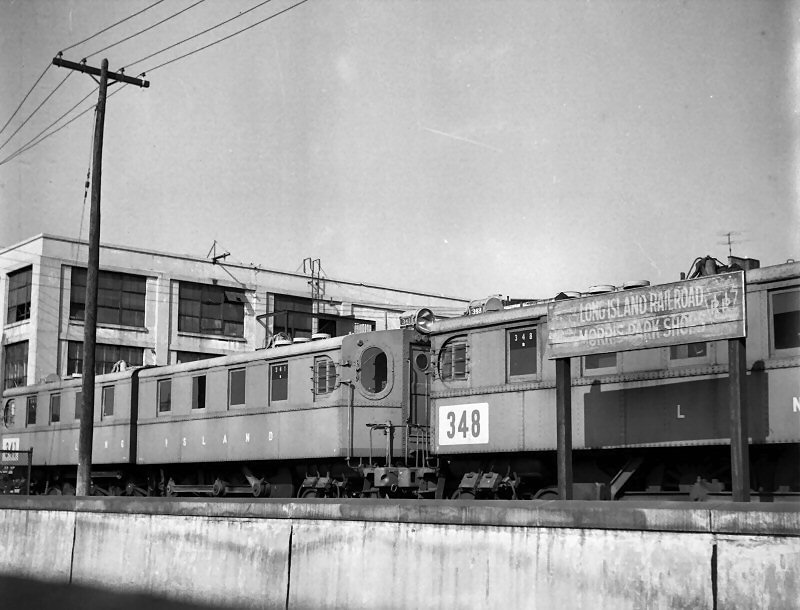

DD1 #341 - #348 Morris Park Shops
Old Sign Tichy s cheme view NW -Jamaica 10/06/1951 (Faxon-Keller)
|

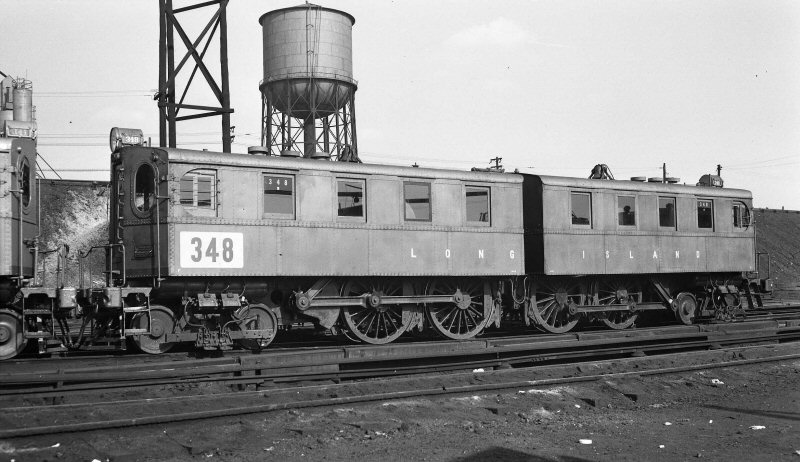

DD1 #348 Tichy scheme Morris Park
Shops
11/12/1950
Archive: Dave Keller
|

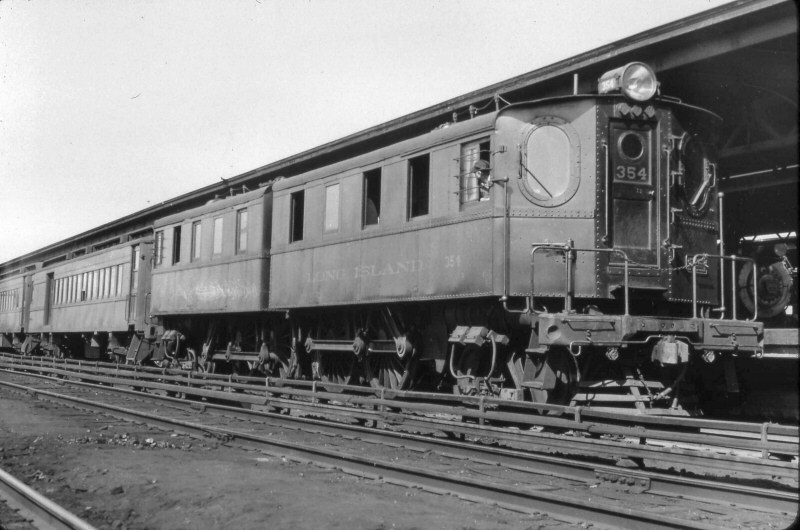

DD1 #354 eastbound Track 8 Jamaica 4/14/1938
DD1 #352 LI City -1950 Archive: Dave Keller |
DD1 #354 - Morris Park at
Dunton Tower
pre-Tichy prior 11/1949
|
As the LIRR was removing
these locomotives from service beginning in 1948 (Tichy painting began in
Nov 1949 and ended in Nov 1952) and with them all gone by 1952, only the few
remaining units in that 3 year window were painted. LIRR #340 (seen
with the horse car above), # 341, #348 , #352, and perhaps a few more.
Research: Dave Keller
|
Post 1939
(1949) scheme after repainting, with hood removed. (road number removed from
front door and keystone logo added) Research: Dave Keller
|
Class DD1, Pennsylvania RR built at Juniata Shops 7/1910 ex-PRR 3954, 3955
Acquired 2/1928, Scrapped 9/1952
Morris Park shops 1939 fresh repaint for April 30th, 1939 NY World's Fair.
ERA Collection
|
PRR conductor and trainman are
conferring with the motorman of DD1 #27 at the open-air platform for track
17 at Penn Station in 1910. The gates for tracks 16 and 15 are visible
at the level above.
Archive: Dave Keller
|

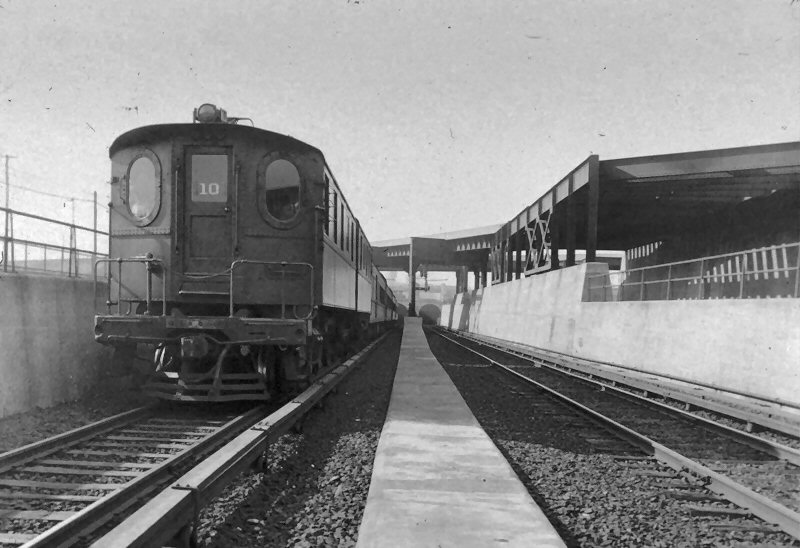

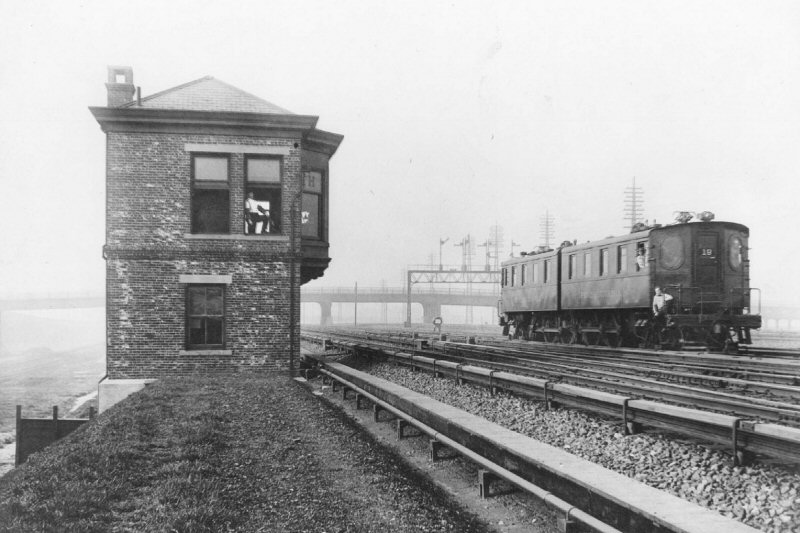

PRR DD1 #10 is pulling a LIRR
train from within the East River tunnels
towards "H" tower where the electric head-end power will
be
transferred to a LIRR locomotive. - 1910 Archive: Dave Keller
|
DD1 westbound consist of a wooden
parlor, followed by a steel combine car and two steel passenger cars at
the new Sunnyside Yard LI
City 1910 View NE
|

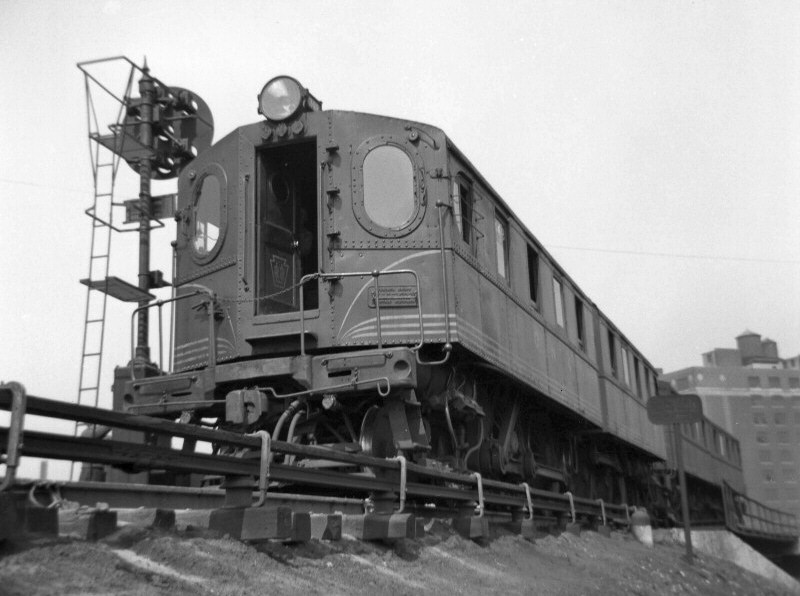

DD1 #348 at Montauk Cutoff view N LI City 3/26/1949 (Faxon-Keller) This
was used as a herald only on the DD-1 electric locos after the pin-striping
of 1939. Prior to the pin-striping the logo was not utilized. Research: Dave
Keller
|
DD1 #347, #343 World's
Fair Train eastbound approaching
Woodside Station 10/11/1940 (Harold Fagerberg
- Art Huneke)
|
DD1-350-Morris Park Shops - c. 1948
|

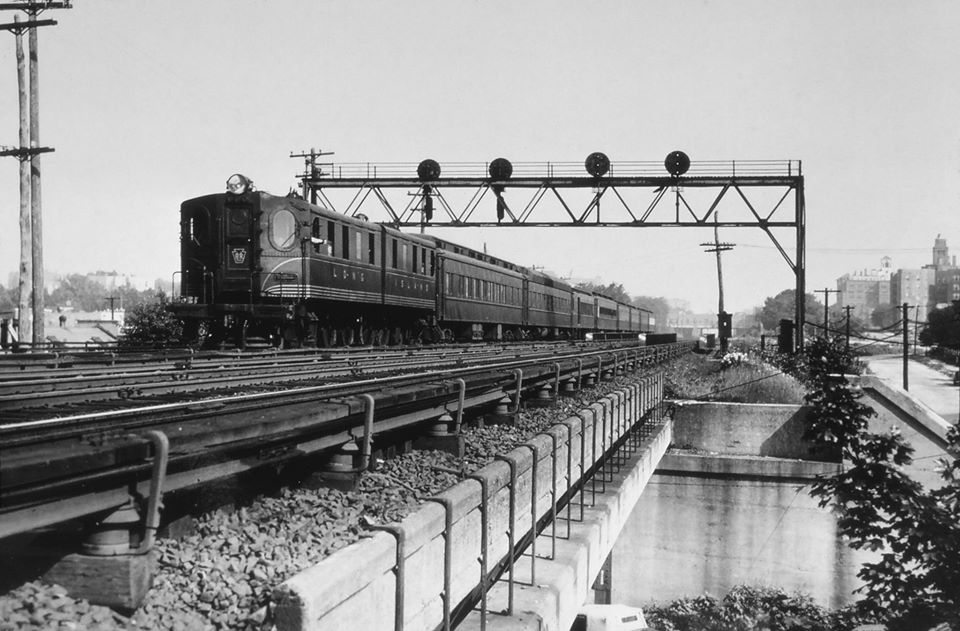

DD1 342A/B eastbound Hampton Express
running between Penn Station and Jamaica on the main line at Hillside Avenue signal bridge
View W 7/21/1940 Photo: Harold Fagerberg Archive: Jeff Erlitz |
An unusual sight that was
temporarily popular during the 1939-40 NY World's Fair service was a train
pulled by a double A-B set of DD1 electric locomotives. Here a special
"double-doubleheader" is pulling a special race train into the
Belmont Park station c.1937. The lead locomotive is flying white flags,
as an EXTRA not on the timetable. The bluff in the left background is the
location of the photographers of the 1905, 1919 and 1949 images of the
station facilities posted on this page.
(Dave Keller data and archive)
|
DD1 westbound train to Long Island
City west of
Hunterspoint Ave. Station c.1942 - View E Archive: Jeff Erlitz
Horace Harding Expressway (LIE) overhead.
|
DD1 Rockville Centre westbound freight - ex-gondola #2954 third rail bridge
car fitted with an air compressor 4/1949
Photo/Archive: F. Rod Dirkes |

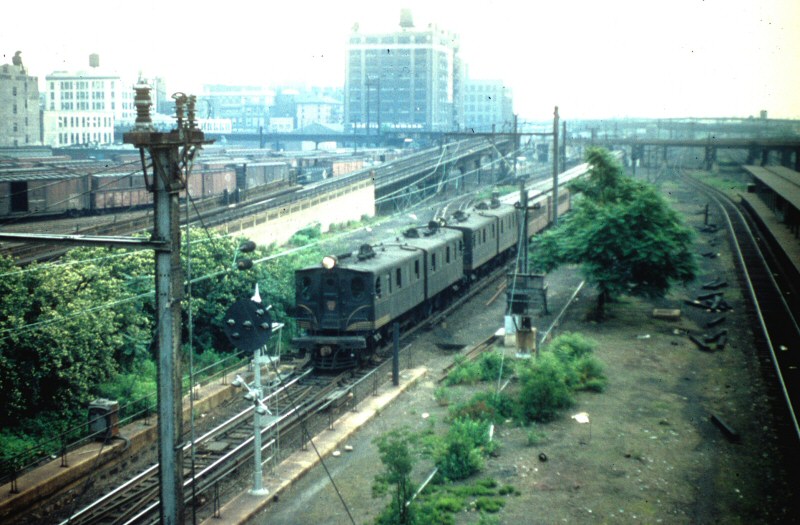

DD1s double-heading pulling Tichy
coaches,
Hunterspoint Ave., LI City c. early 1950's Archive: Art Huneke
|

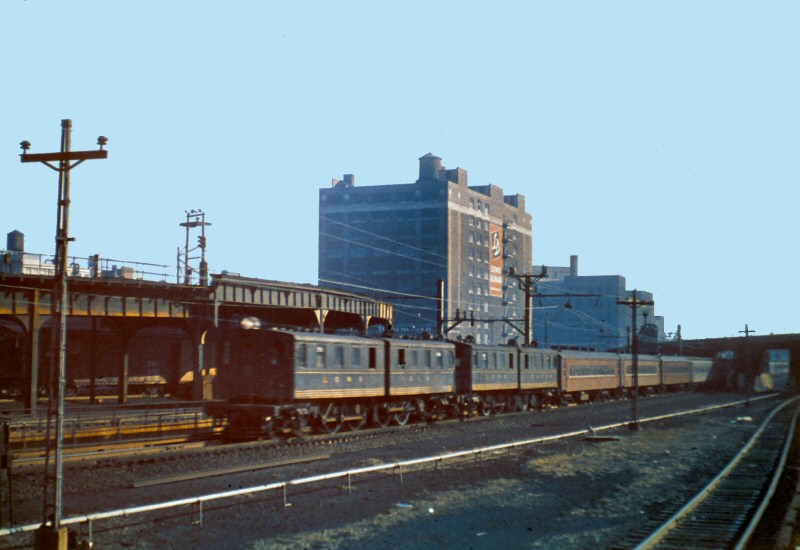

DD1s double heading Hunterspoint Ave., LI City
c. early 1950's Archive: Art Huneke
Note: Tichy coach 4th car Info: Dave Keller |
