Eastport



EASTPORT: Montauk Branch:  Built: 3/1870 as “MORICHES” Station on original Sag Harbor Branch., moved to Eastport site: 10/18/1881
New stop in service: 10/19/1881.  Remodeled: 19_?
Agency still listed in "LIRR Ticket Offices open for sale of tickets" of 9/12/1955
Agency closed: 19_?  Discontinued as station stop: 10/6/58. Moved to private location after 1963
   Research: Dave Keller


Ticket Eastport-Riverhead 8/10/1896
Archive: Brad Phillips

Eastport Station view NE
1906 cancellation postcard eBay

Eastport Station view W  1908


This ticket (above left) issued at Eastport in 1896, would be for travel on a train westbound from Eastport on the Montauk branch, heading up the Manorville/Eastport branch which connection was a short distance west of Eastport station, accessing the east leg of the wye at Manorville on the Main Line, making the station stop there, then continuing along the Main Line eastbound to Riverhead, the county seat.  This procedure would be reversed for trains leaving Riverhead, headed toward Eastport. (Dave Keller data)  LIRR Colton-Geographicus map of 1882 zoom of  Manorville Branch  Info: Dave Keller



Eastport Station c.1925
James V. Osborne photo, Dave Keller archive


Eastport Station view N c.1925
Archive: Dave Keller


Eastport Station 1962
Photo/Archive: John Scala


Ex-Eastport Station garage bay - Archive: Wiki
The Eastport Station was moved to a private location behind a gas station on Montauk Highway where it has been converted into a garage bay after 1963.

Research: Dave Keller





Farmers' Commission House ad 1921+



A 1920's agriculture ad in a trade paper advertising the Farmers' Commission House in New York City. This was the clearing house for many Long Island Duck farmers who formed the association in 1921 to help stabilize and promote the sale of Long Island Ducklings. At this time the Long Island Duckling was a menu item at the finest restaurants, on Cross-Atlantic steamships and in the dining cars of the major railroads such as the “Broadway Limited” and “20th Century Limited” passenger trains.
____________________________________________________________________________________________________________________________

In the early 1870’s the first Chinese Peking Ducks in America were imported to New York City. From that initial stock, a drake and three ducks were bred in Connecticut and found to be a hearty breed for the New World.

The streams and creeks of Eastern Long Island were ideal for providing clean, fresh water for ducklings to grow and thrive. Thus, in the 1880’s a tremendous enterprise of duck “ranching” began on Long Island. The succulent Long Island Duckling became the height of fine dining on steamships, railroad dining cars and restaurants in New York City. Our Duckling’s fame and tender meat spread across the country and World-wide - as far away as China!

Railroads built specialized stock cars for the transport of poultry. The cars were similar in design to pig and cow cars but held shelving along the inner perimeter for the placement of cages holding the feathered stock. A small room or shanty was built inside the car and a caretaker would ride with the fowl, caring for them, providing fresh drinking water and feed as they traveled to market.

At its earliest, the Long Island Duckling traveled live to market in New York City. Eventually, a growing demand and improved technology lead to the harvesting of the ducks right at the ranch, their feathers were saved for down and they were dressed and placed in barrels for shipment to market. Today’s Long Island Duckling is harvested, dressed and flash frozen, packaged and shipped to western markets in modern refrigerator trucks.  Info: RMLI


Eastport - Prototype History
"The Cannonball" Spring 2009

The Feed Mill names: Suffolk Feed & Supply Co, 1924, Beacon Milling Co. 1958, Beacon Feeds 1986, Eastport Feeds 1987 Info: Steven Lynch

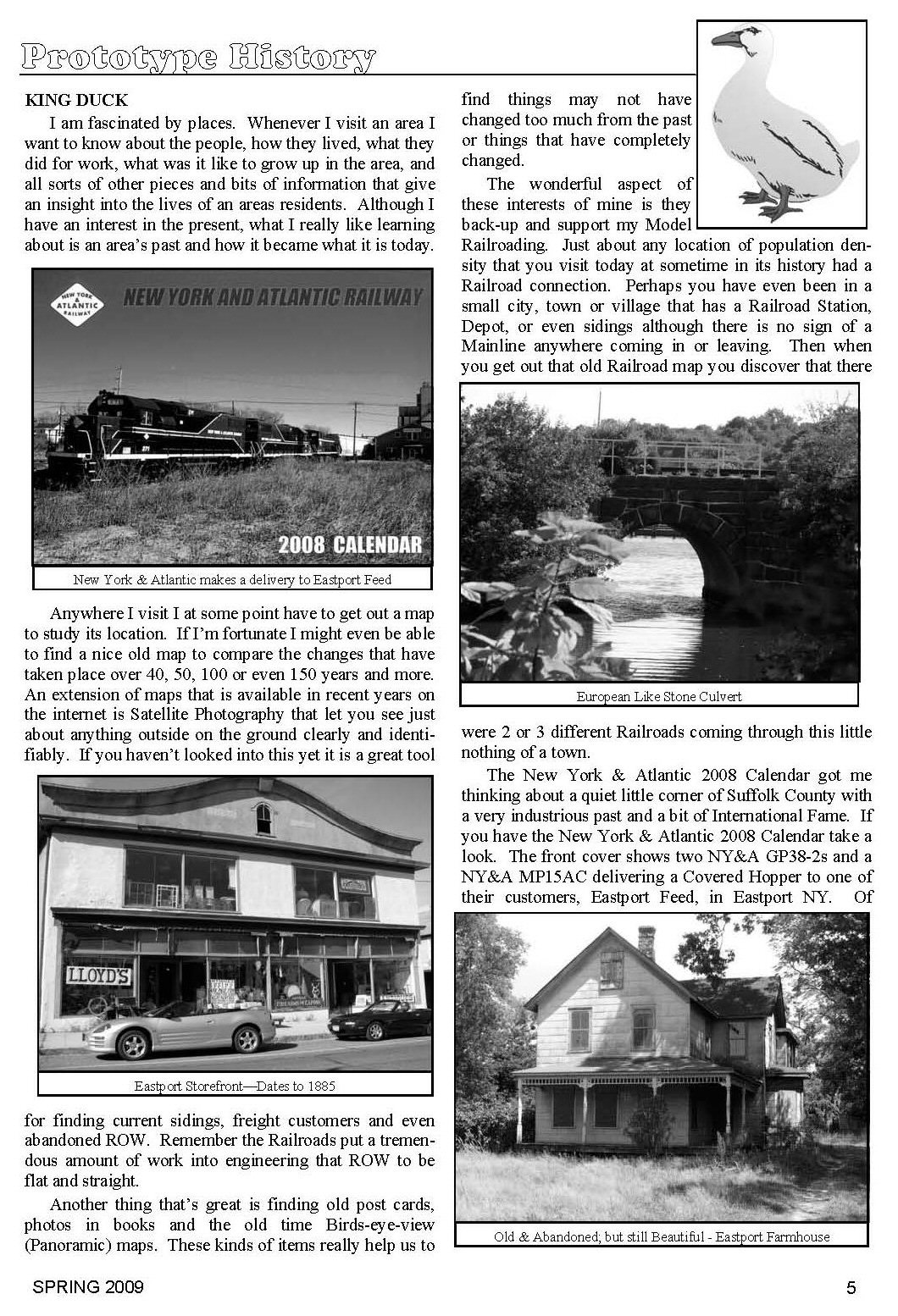

Page 1

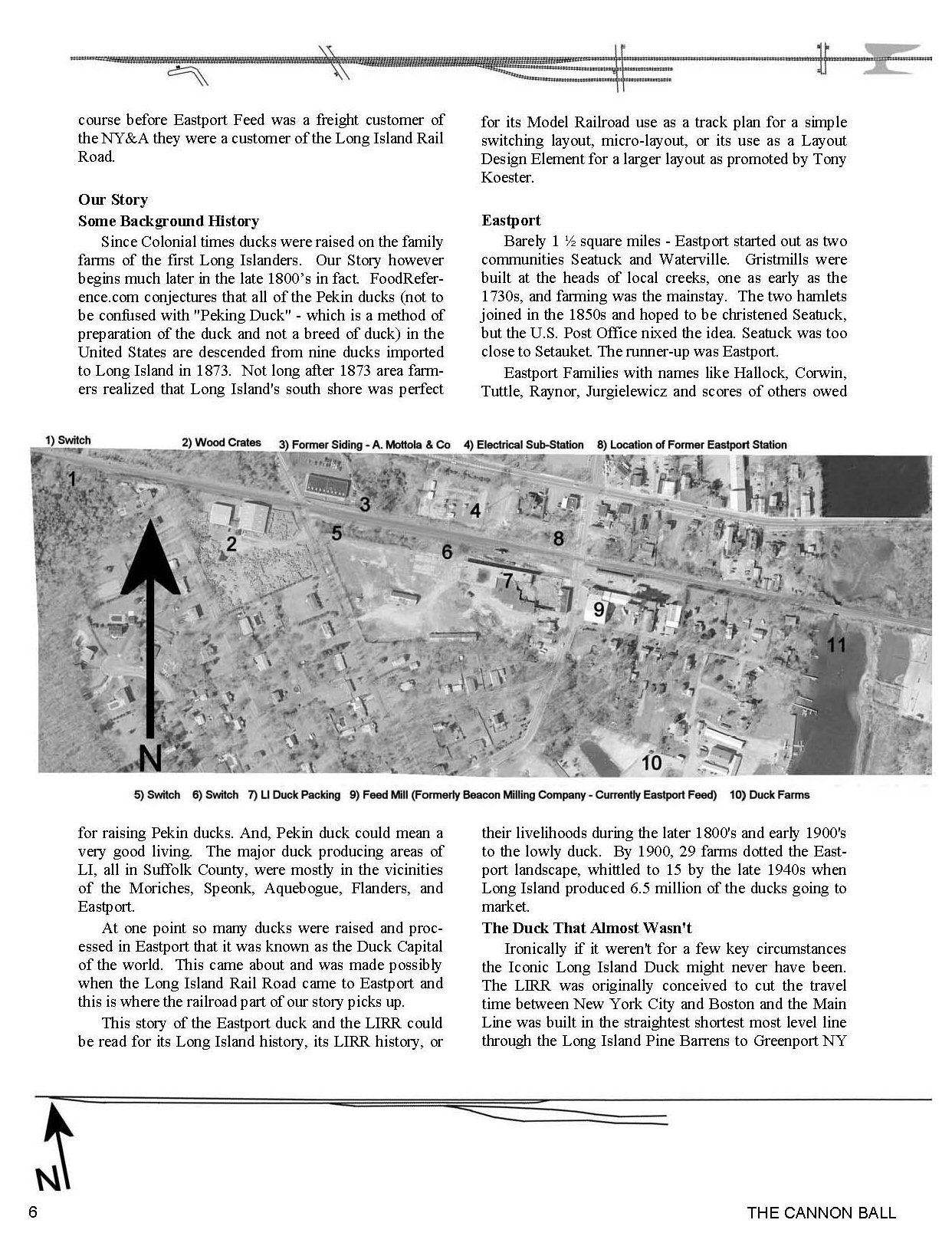

Page 2

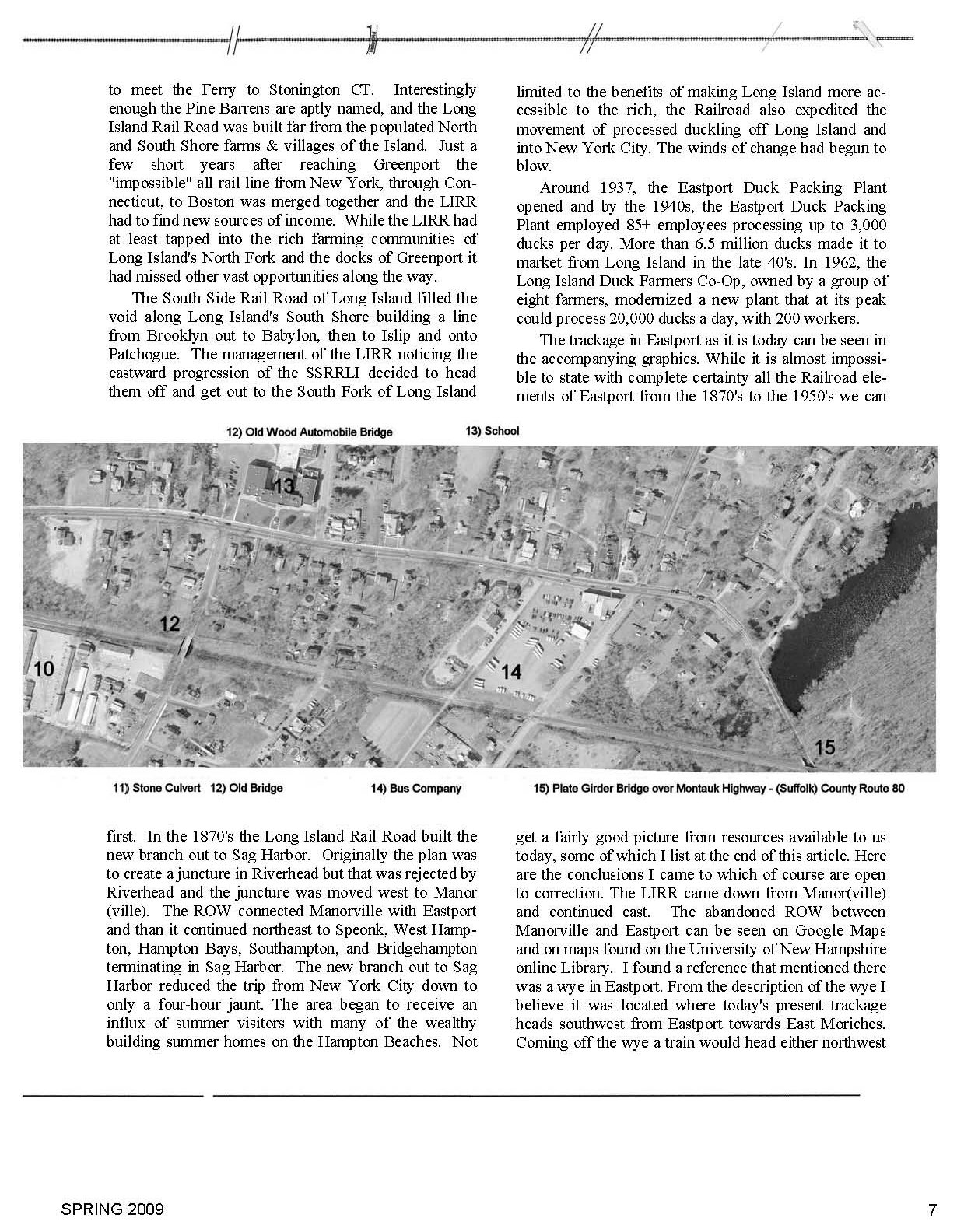

Page 3

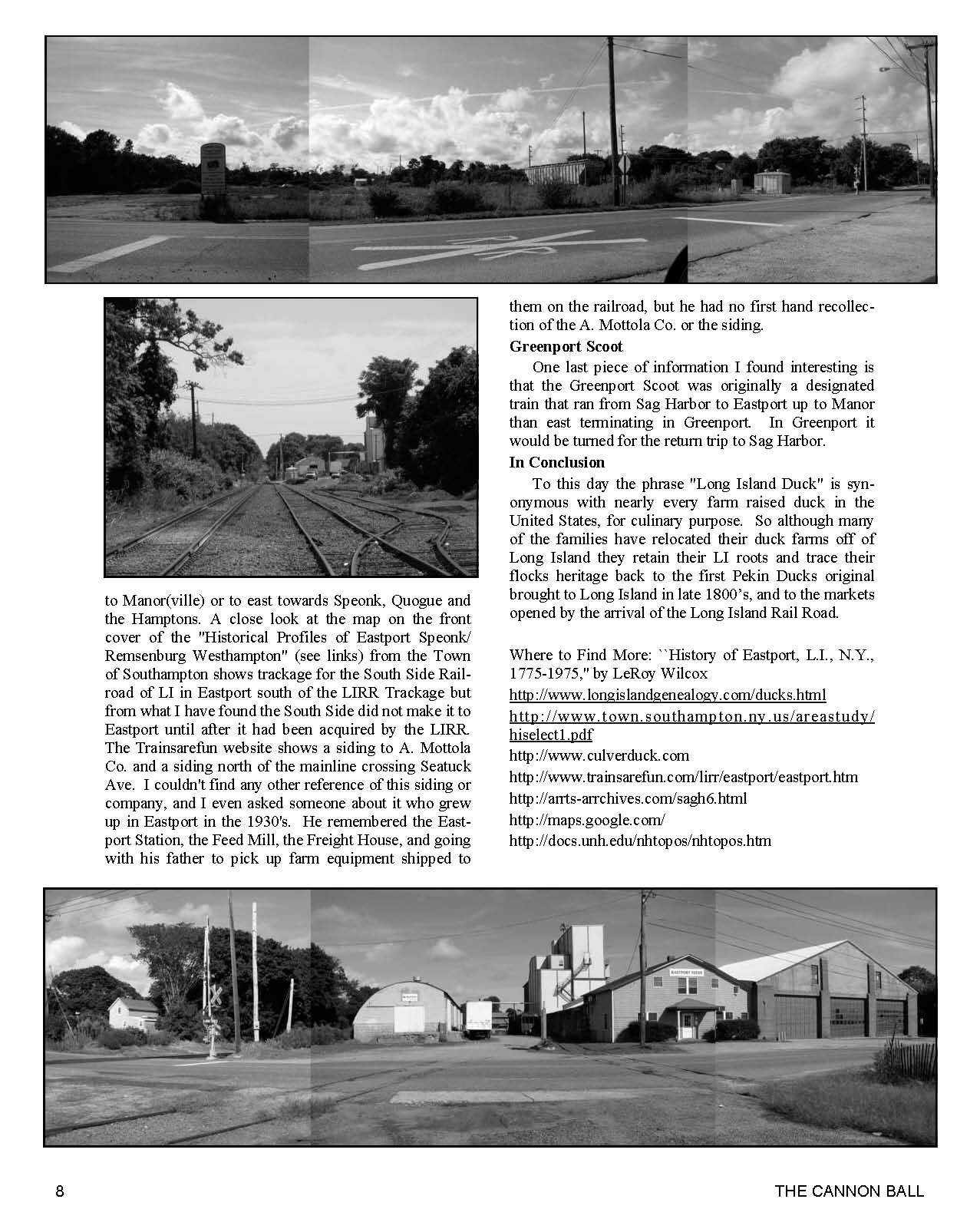

Page 4

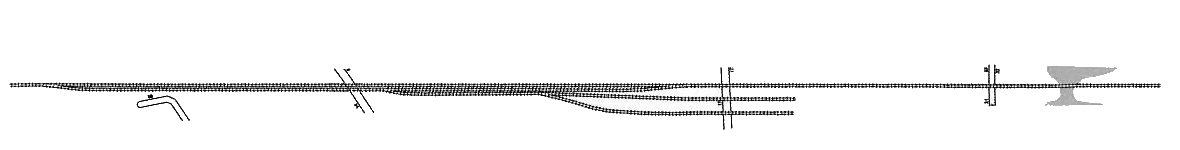

Legend to the above numbered locations on page 2-3:

1) Switch
2) Wood Crates
3) Former Siding - A. Mottola & Co.
4) Electrical Sub-Station
5) Switch
6) Switch
7) Long Island Duck Packing
8) Location of Former Eastport Station
9) Feed Mill (Formerly Beacon Milling Company - Currently Eastport Feed)
10) Duck Farms
11) Stone Culvert (over Seatuck Creek)
12) Old Wood Automobile Bridge (1907 over River Avenue)
13) Eastport High School
14) Bus Company (Adelwerth Bus Corporation)
15) Plate Girder Bridge over Montauk Highway - (Suffolk) County Route 80

Article, graphics, and photos:  George Loy Jr.  Cannonball Editor


Typical Long Island Duck Farm post card 1979
Photo: Milt Price Archive: Jeff Fisher
LIRR-Check-Duck-Farm-Eastport-1928-Front.jpg (44124 bytes) LIRR-Check-Duck-Farm-Eastport-1928-Back.jpg (39611 bytes)
Front and rear scans of a check issued in 1928 to the LIRR at Eastport by one of the Duck Farms located there, and endorsed by the LIRR agent at Eastport. Archive: Dave Keller

Sanborn map - Eastport 11/1909

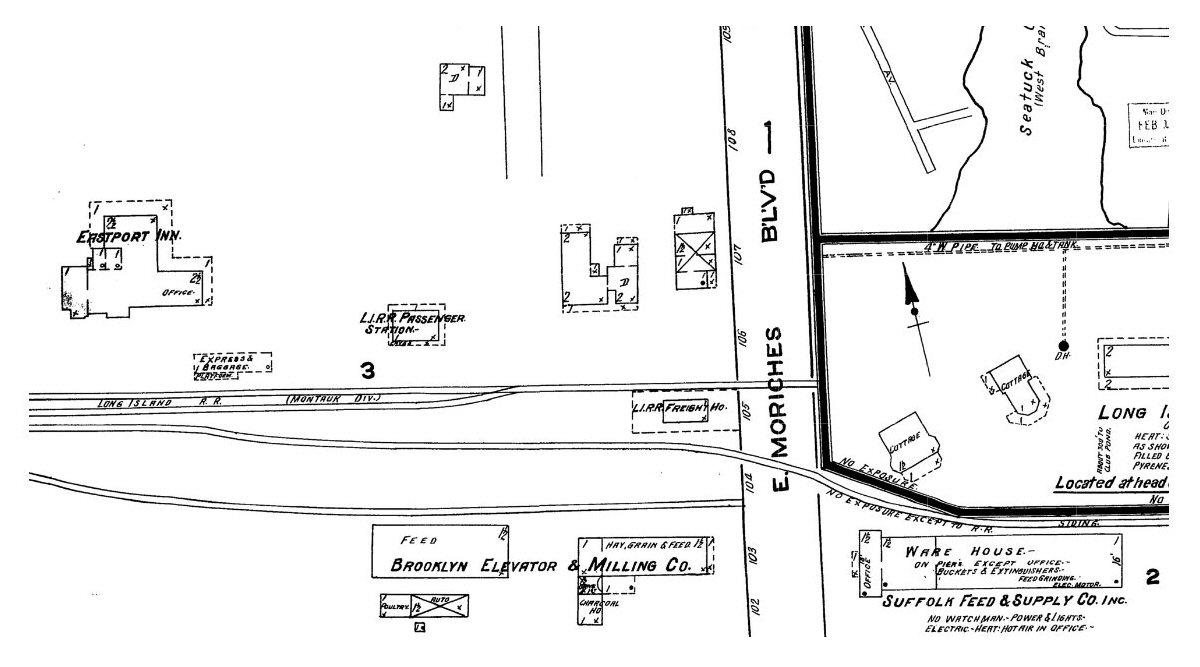

Sanborn map - Eastport 10/1920

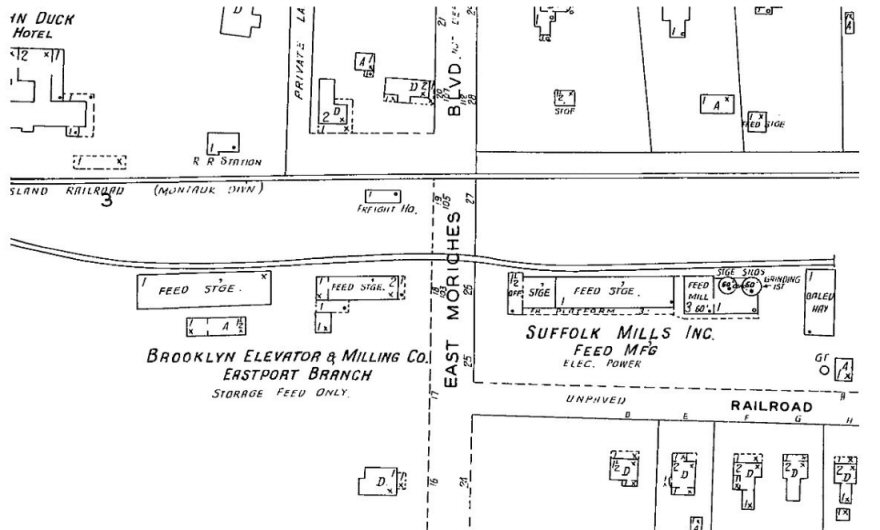

Sanborn map - Eastport 8/1932


Eastport Station 1962 Archive: John Scala

Montauk Branch - Eastport to West Hampton
Track profile map 1994


MP 69-70 Eastport 1958

Eastport Station remodeled 1958 - Photo: Irving Solomon
for the PSC  Archive: Dave Keller


A.
Eastport siding view West

05-06-06 Westbound
Photo: Paul Strubeck

08-2007  Westbound Photo: Joe Gregory

B. Beacon Feeds 1986  view East
Photo: Steve Lynch


B. Eastport Feeds view East

B. Eastport Feeds view East

Photo: Joe Gregory  08/2007

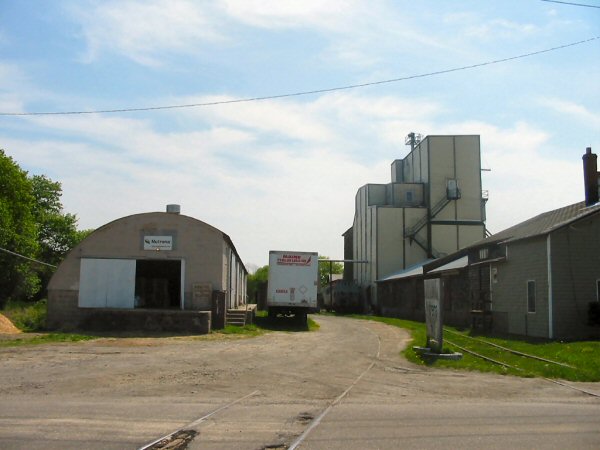

eastview northtrack.jpg (51547 bytes)
B. Another track just a few feet north of the one still in use. It went all the way back and through a shed. View East. Photo: Paul Strubeck 2006


C. North siding receiving




MP15ac #160 Eastport Feeds c.1987 Direction looking East.  Thomas Collins photo, Dave Keller archive




Ticket Eastport to NY via 34th Street Ferry 9/05/1905
Archive: Brad Phillips


Eastport view E 9/28/1987 Photo: Edward Hand

Eastport view SE 9/28/1987
Photo: Edward Hand

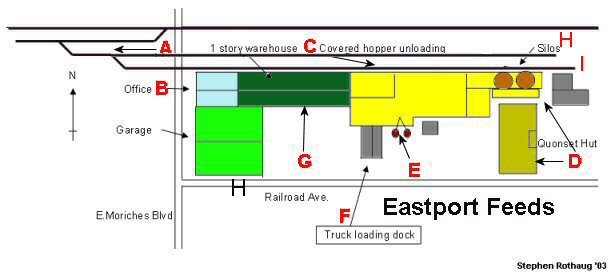

A special thanks to Stephen Rothaug for his photos and map diagram.

E. Truck loading shed


  D.  Quonset Hut view W


 Silos  View NW

F. South side of plant view NE

G. South side of plant

H. Southwest View 05-06-06
Photo: Paul Strubeck (see map above silos arrow indicate direction)

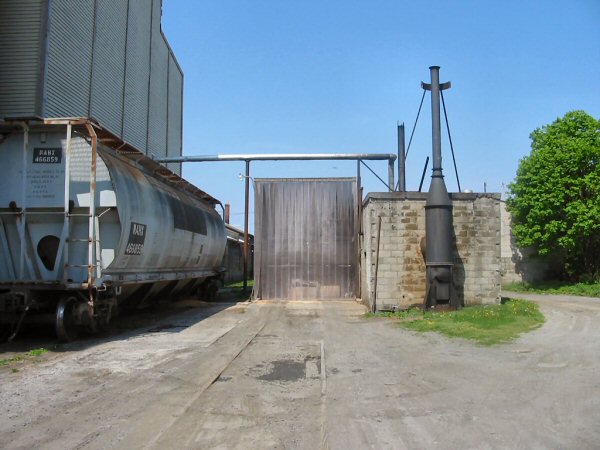

westviewnorth track.jpg (63573 bytes)
H.2 Close-up It went all the way back and through a shed. View West.
Photo: Paul Strubeck 2006

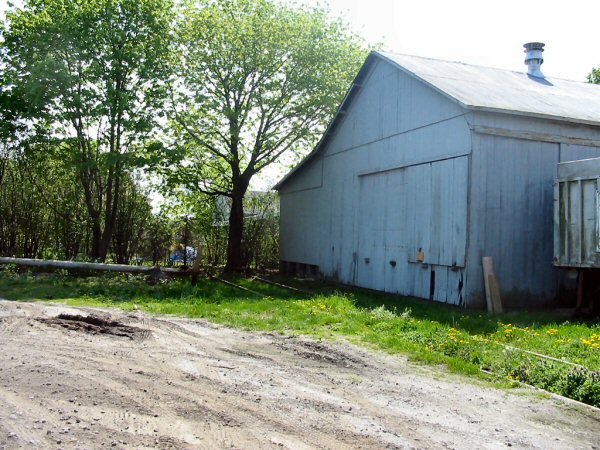

I. Old boxcar unloading site
Photo: Paul Strubeck 2006

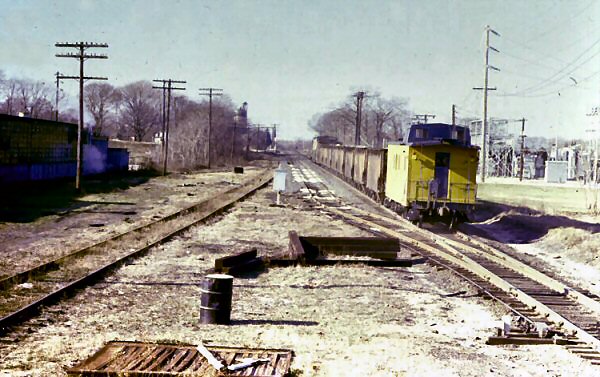

Freight 1975 Westbound
Photo: Tim Darnell

MP15ac #172 freight approaching westbound c.1989 Photo: Tom Collins Archive: Dave Keller

MP15ac #152 freight on main #258 on siding c.1989 Photo: Tom Collins
Archive: Dave Keller

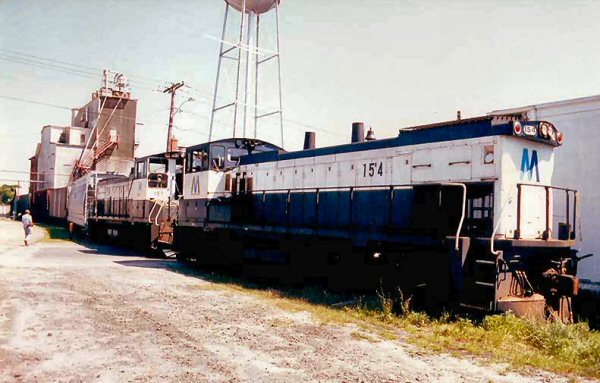

LIRR #154 -#157 switching Eastport Feeds in the very late 80's.  View east.
Photo: Tom Collins
Archive: Dave Keller
Tank car at new NYA customer 8/2007 Photo: Joe Gregory

Davis Fuel, they had that one tank car in captive service for a few months between PT and wherever it was loaded. I believe they were unloading some non-hazmat part of the bio-fuel process. They haven't had a car spotted in months and may be inactive.

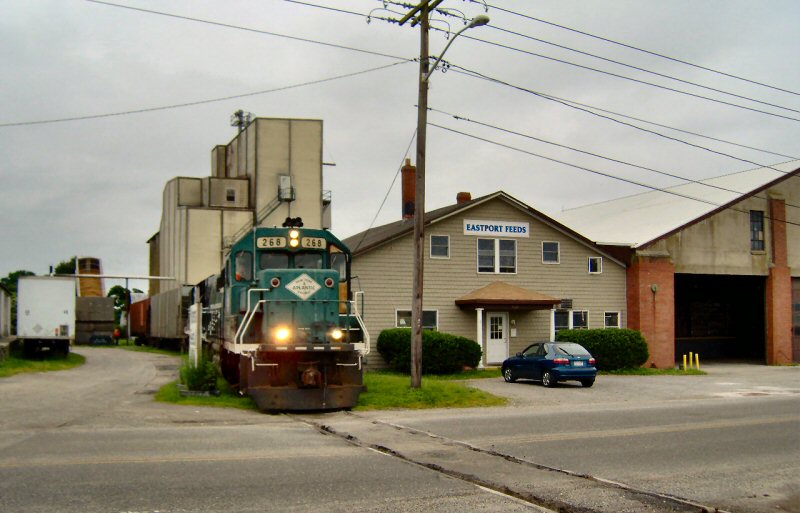

Eastport Feeds NYA #268 7/2017
Photo: Tom Collins Archive: Dave Keller




Eastport Feeds - Nutrena Feeds sign
7/2017 Photo: Tom Collins
Archive: Dave Keller
Track Replacement at Moriches Blvd., Eastport, NY - 2017
Photos: Tom Collins

Bulldozer ripping out the old Moriches Blvd. road crossing

Old road crossing ready for replacement

Placing new concrete ties and rails in place

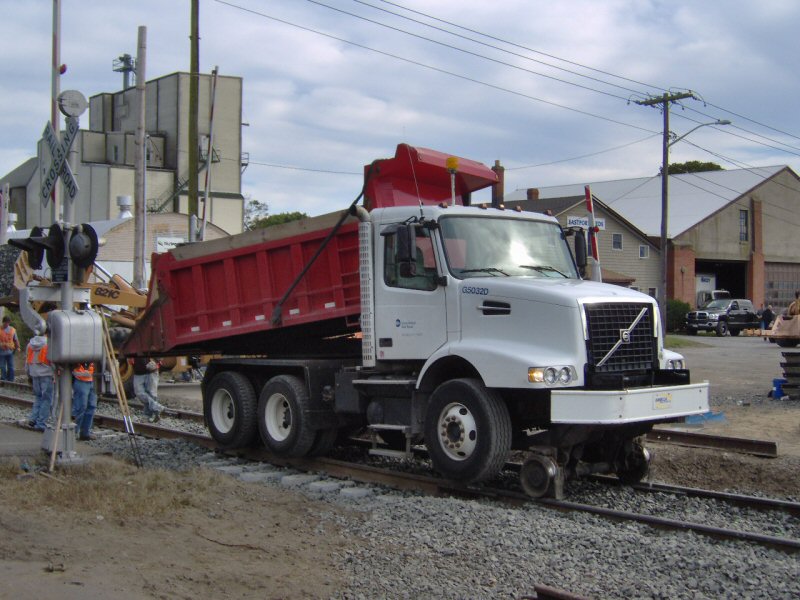

Dumping new ballast at the crossing

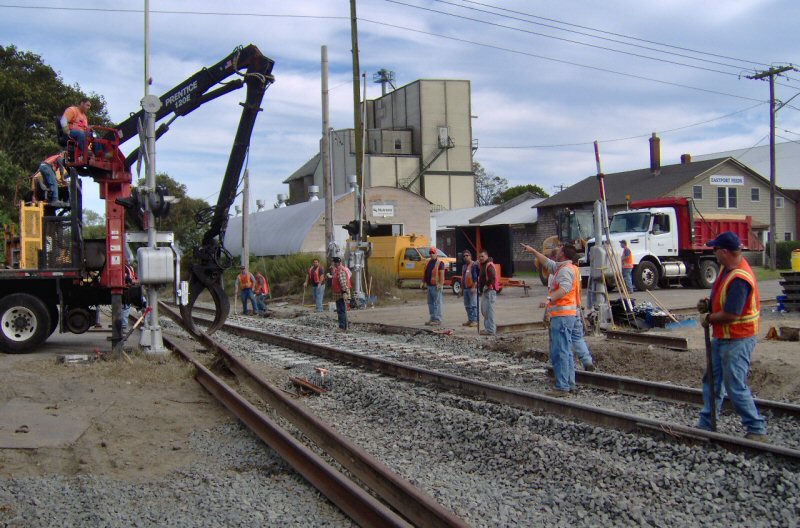

More rails to replace

Cutting rail for replacement

MOW rail welding

New rail and ties receive ballast

Plasser Unimat 09-16 4S LIRR #TC-033
Photo: Plasser American

LIRR #TC-033 Plasser Unimat 09-16 4S comes in to finish the job!

Plasser American Unimat 09-16 4S switch and production tamping machine. The LIRR purchased two of these machines which were delivered in 2005; #TC-033- 034.  They are used to tamp the track while correcting the track geometry; surfacing and alignment to improve the ride quality for passenger confront and safety of keeping the trains on the track. They have 16 tamping tools to “pack” the ballast under the ties and are capable of production tamping on plain track as well as tamp switches.  Tamping switches requires being able to work around the rails as the transition and all of the hardware in a switch to allow it to operate.  This is a 09 series tamper which means it has a satellite which contains all the working components. During operation the satellite moves from tie to tie while tamping while the mainframe moves in a continuous motion which allows the machine to work at a higher production rate while reducing wear and tear on the machine.  Courtesy: Ronald Olds, Vice President Sales & Marketing Plasser American


South Haven

Emery map MP60-61 - South Haven 5/1958 Archive: Dave Keller



MORE Long Island Duck History


LIRR #265 eastbound passing Robinson's Duck Farm in South Haven
11/1982  Photo/Archive: Jay Bendersky
