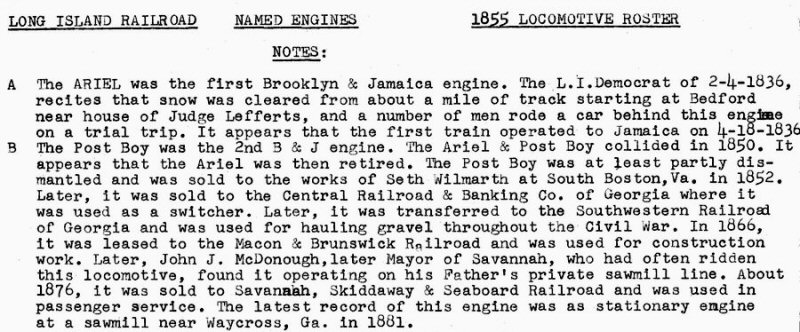

ARIEL:
This was constructed in :November 1835 by Matthias W. Baldwin at Philadelphia, Pa. It was the 19th made
by him and was ordered by the Brooklyn and Jamaica R. R. Co. at a cost of $7000. The exact date of its receipt
by that railroad is not known, hut was probably about the date above stated. The road was formally opened April 18th, 1836, and although the Long Island Farmer described
the event, the names of the locomotives drawing the excursion trains are not given. Shortly after this, May 1st, 1836,
the Brooklyn and Jamaica R. R. was leased to the Long Island and thence forward the ''Ariel'' became a Long Island R. R.
locomotive. Ariel remained in service till 1855. |
Baldwin 4-4-0 Passenger Engine-c.1890 |
|||
|
Hunt's Merchant's Magazine & Commercial Review 1846 page 414
Hunt's Magazine 1845 LIRR Boston Route Described Pg 489 |
|||
The LIRR went to sea from August, 1844 though February, 1847. As part of its route between Brooklyn and Boston, the LIRR owned and operated a small fleet of steamboats, the Cleopatra, the Worcester and the New Haven. These steamboats made the waterborne connection between the eastern terminus of the LIRR at Greenport, Long Island, and the Connecticut rail terminals of the Norwich &Worcester RR at Allyn's Point, and the New York, Providence & Boston at Stonington. "Earliest
View of the LIRR's Greenport Terminus and Intermodal Transfer, circa 1844-
1847". Cleopatra- The Connecticut Magazine, 1906, Vol 10, pg 307 |
||||
The Peconic House
hotel, which was end of track in Greenport. Note the Ariel or the Post Boy
is pulling a one car local train right onto the pier- and seemingly right
onto the waiting LIRR ferry boat "Cleopatra". Note it's a British
style "compartment car" Now, getting back to the train schedule
(above right),
note that mile post "0" is Manhattan- it would seem the passenger
cars were possibly carried on the ferry boat from Manhattan to Brooklyn,
where the locomotive was attached. |
||||
The material/research above
compliments of: Archive: Bob Diamond /BHRA, except as noted. |
||||
|
||||
Early South Side Rail Road Engines | ||||

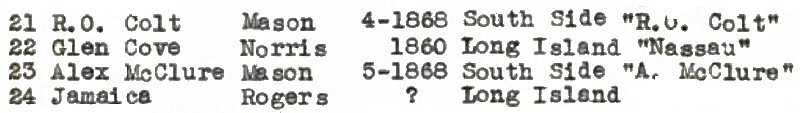

Locomotives numbered 21 thru 24, are NOT the ones that became D-series Americans. These locomotives numbered 21 thru 24 were originally South Side Rail Road locomotives and were named as indicated below. After acquisition by the LIRR, they were numbered as such by the LIRR for use on their system.
These locomotives were withdrawn from service, as they do not appear on the October 1, 1898 renumbering list, so obviously were gone by that date. 30 to 38 years of service was about the life of a locomotive back then. The LIRR had been purchasing the D-series locomotives (D52, D53, etc., etc.) in the 1890's and these antique SSRR locomotives were probably under-powered and were already at or beyond retirement age. For all we know, they may have no longer worked and were retired, sold, or scrapped . . . who knows? The October 1,
1898 renumbering listing shows former locomotives numbered 21 thru 24 as
follows. These were NOT the early SSRR locomotives, so the older engines
were probably gone from the system by the 1891 Schenectady build-date
otherwise the LIRR would have numbered these newer units differently: |
||||
|
||||
The LIRR locomotive
renumbering took place effective October 1, 1898 |
||||
Eastbound Brooklyn Central &
Jamaica locomotive #1 ("W. B. Hunter," later LIRR #40
"Huntington") with one clerestory roof passenger |
||||
D52a #95 4-4-0 view SW at Bridgehampton Station. A two coach shuttle train between Sag Harbor and Greenport, once a day in 1880's. The builder was Rogers in May, 1883. 1896 The image is the old (original) number #95. . . 2 years PRIOR to the overall renumbering of LIRR locomotives. In 1898, the locomotive was renumbered #42, and was withdrawn from service by January, 1912. Research: Dave Keller Photo/Archive: MTA/LIRR archives c.1970+.
|
||||
The builder was Brooks
in March, 1898. The loco retained its original #34 for a short period of
time before being renumbered to #80 on October 1, 1898. |
||||
Inspection Train 4-4-0 D52b
#92, renumbered #39 effective October
1st, 1898, with Business Car #200 just east of Ronkonkoma Station - View W
1897 |
||||
The shot of the train was taken by Harold Fullerton in 1897 along the Main Line at Medford. It was called Patchogue Path and was a bicycle path through the pine barrens, running from Patchogue, through Medford and on to Port Jefferson. The view is north.
Info: Dave Keller Archive: Patchogue Public Library |
||||
4-4-0 #45,
built by Now . . . the only #8 that the LIRR rosters show in later years (c. 1920) is G54sd (4-6-0) camelback built new in 1902 and retired in the late 1920s. Therefore, we can conclude that, to avoid duplicate road numbers, (probably the MAIN reason for the renumbering of October, 1, 1898) renumbered 4-4-0 #8 was withdrawn from service either in 1902 or prior to that date, which sounds about right, because: 1. It
was a VERY old locomotive style and not strong enough to pull longer trains. |
||||
|
Fireman and Engineer standing beside LIRR 4-4-0 engine No. 45 near the Long Island City Terminal at Vernon Avenue and Borden Avenue in Long Island City, Queens, in May of 1890. Digital restoration: Chris Klug |
New York & Sea Beach RR 2-4-0 #2 Bay Ridge c.1887 |
LIRR 4-4-0- Train at Port Jefferson Station view E 1878 (Brainard-Keller) |
|
LIRR 4-4-0 #47 Morris Park 1897 Photo: Harold B. Fullerton Archive: Queens Public Library |
Long Island Railroad Company 4-4-0
engine no. 47 at the Morris Park Facility on Atlantic Avenue and 125th
Street in Richmond Hill in 1897. |
|||
LIRR Loco Blizzard 1888 First RJ Tower, Rockaway Junction in background |
|

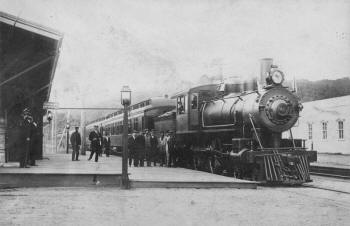

D52a #41 - Parlor Car train and crew at Roslyn Station - View SE 1906 Archive: Dave Morrison |
LIRR #6 c.1900 prior #44 before 1898 |
|
LIRR 4-4-0 #11 1888
|
LIRR #71 Meteor 1879 Baldwin Loco Works
|
LIRR #93 Builder's Photo: Rogers Locomotive & Machine Works c.1883
|
LIRR #125 c.1895 |
|
LIRR 0-6-0 #198 Builder's Photo Archive: Sam Shumaker |

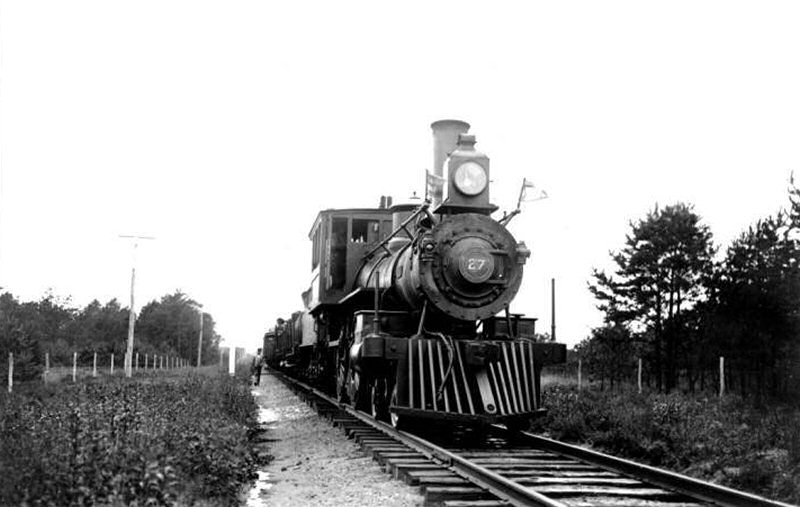

LIRR #27 MOW oil train used to control trackside vegetation at Garden City 1899 Photo: Hal Fullerton |
|
|
|
Miscellaneous Locomotives - Tanks and Forneys | ||||
Schenectady, 1/1868, built two 2-4-0T for the LIRR. No. 42 "WOODBURY" and No. 43 "NORTHPORT". No. 43 was photographed on a work train at Howard House Station. Archive: Art Huneke |
4-4-0T No. 4 taking on water - East New York engine house c. 1895 Archive: Dave Keller Note: Rogers is the builder (see above). |
2-4-6T Mason Bogie at Engine House 1890 Archive: Art Huneke |
||
Forney 0-4-4T #159-158 at Baldwin Loco Works 5/1892
On 10/01/1898 this locomotive was
renumbered to #216. These 0-4-4T tank engines were used in rapid transit
service on, for example, Sands Street/Brooklyn Bridge to Rockaway Park runs.
|
LIRR 4-4-0 engine no. 17 and the Prospect Park &
Coney Island 0-4-0T engine
no. 6, "West Brighton", at the Morris Park Facility at Atlantic Avenue and 125th Street in Richmond Hill, Queens on April, 24, 1899.
Engine No. 17 was originally engine No. 51,
Lakeland, built by Schenectady Locomotive Works No. 994 in September of
1875. Engine No. 6 was built by Baldwin in May of 1879. Photo:
Hal B. Fullerton Archive: Queens Public Library
|
0-4-0T #299 "Oriental" Morris Park Yard - Atlantic Ave. and 125th St., Richmond Hill 1897 - Baldwin 7/1877 Renumbered 1905-06 to #330 Photo: Hal Fullerton Archive: Queens Public Library |
||
0-4-4T Forney #109 Morris Park shops c.1890 Archive: Dave Keller |
0-4-4 #109 Rockaway Jct. summer 1896 Archive: Dave Keller |
0-4-4T #220 Rockaway Jct. Frank Hawkins on Engine c.1896 Archive: Dave Keller |

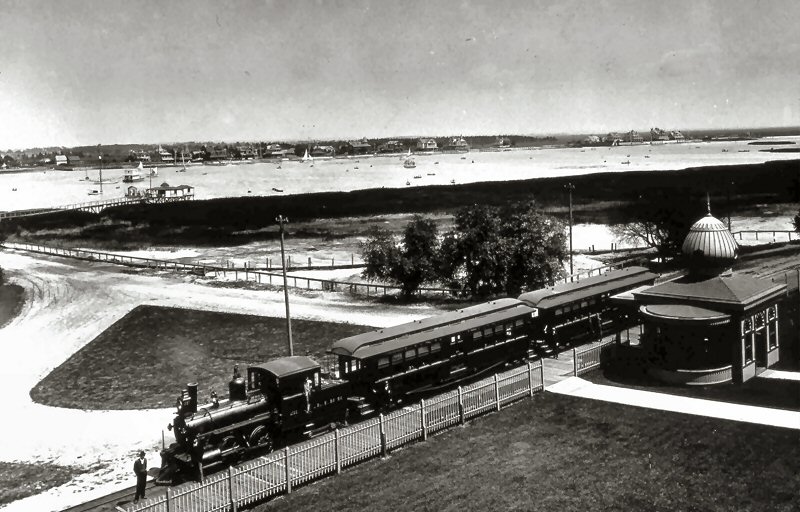

2-4-4T #211 with train at Station Oriental Hotel - Manhattan Beach 1898 Archive: Dave Keller |
|
LIRR 4-4-0 #38 Tank Engine c.1888 at Woodhaven Junction |
Built June 1867 as a 4-4-0 by Schenectady Construction No. 450 - named the "Thurlow Weed" rebuilt 1885 for rapid transit service on the Atlantic Division - photo circa 1888 Note: Check out that outside bearing pilot truck with fenders and equalizer |
Forney 0-4-6T #327 Station Sag Harbor View E 1903 Archive: Dave Keller |
0-4-0T #321 Morris Park shop switcher c.1920 |
