LIRR TURNTABLES - The185th Anniversary of the Long Island Rail Road
Long Island Sunrise Trial Chapter (LIST) - NRHS Dave Morrison's, LIRR Historian, article discusses the numerous LIRR turntables, function, and locations with photos.



LIRR TURNTABLES

Just how unique is the Oyster Bay turntable?  How many turntables were in operation on Long Island and how many turntables exist on Long Island today? A 1924 LIRR document from the collection of retired LIRR Maintenance of Equipment Supervisor Carl Dimino indicates that the railroad categorized turntables by number.  The numbers ranged from 1 to 17 with six blanks, to wit:


Turntable # Location
1 Bay Ridge
2 ________
3 Greenport
4 Jamaica Yard
5 ________
6 Long Island City
7 Dutchkills
8 ________
9 Morris Park Shops
10 Oyster Bay
11 Patchogue
12 ________
13 Port Washington
14 Riverhead
15 ________
16 ________
17 Whitestone Landing



The five locations on the list that are blank are a mystery, however both Art Huneke and Dave Keller advise that at one time there were turntables at these locations: Flatbush Avenue Terminal, Islip, Port Jefferson, Rockaway Beach, Brighton Beach, Sag Harbor and Hempstead. One turntable was located by the remains of the brick turntable pit wall in Old Bethpage State Park as follows:

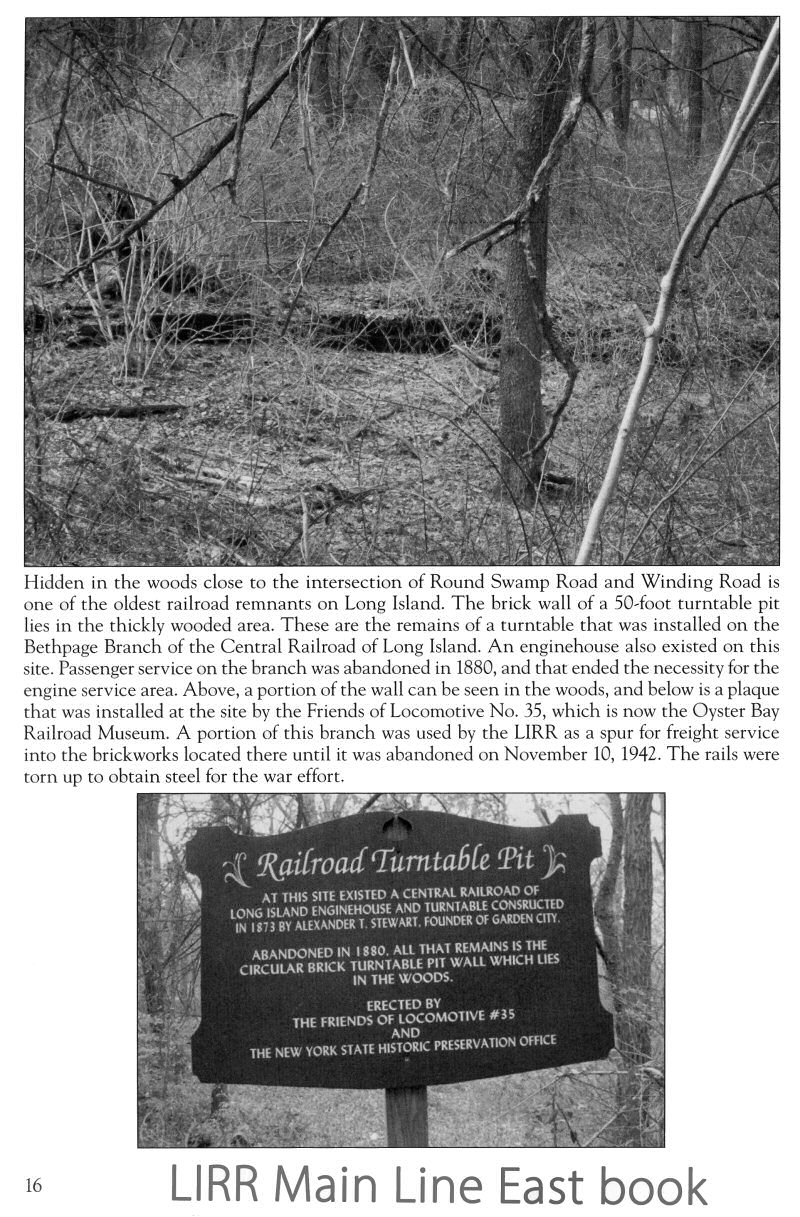

The oldest remains of a turntable on Long Island

bethpagettsign.jpg (127697 bytes)An article on Long Island turntables would not be complete if the old brick-wall turntable pit at Bethpage State Park were not mentioned.  This is one of the oldest surviving railroad structures on Long Island. This turntable pit wall was found in 1988 by the team of Arthur Lubitz, Arthur Huneke and the author, who were walking the right-of-way of the old Bethpage Spur.  The pit measurements indicate that the turntable would have been a 50 footer, short by modern standards but common at that time.  It was built circa 1873 when A. T. Stewart built the Bethpage Spur of his Central Railroad to haul bricks from the Bethpage brickyards to Garden City for construction of homes in that community.  The turntable was only in use until 1879 when passenger service was abandoned on the spur.  This turntable pit is truly a relic from the past.  A plaque was installed by NY State prior to the 2002 US Open Golf Tournament in Bethpage State Park.

Photo: Unknown




Bethpage-Turntable-pit_4-08-2018_Morrison.jpg (126765 bytes) Bethpage-Turntable-pit2_4-08-2018_Morrison.jpg (133524 bytes) Bethpage-Turntable-pit-location_Mapquest-2013.jpg (38740 bytes)
                                       Bethpage Turntable Pit and plaque 4/08/2018 Photos: Dave Morrison                                                    Location map: Mapquest 2013


The turntable at Morris Park is still operational and is used on a regular basis by the LIRR. The turntable at Greenport is under the auspices of the Railroad Museum of Long Island (RMLI) and is pretty much intact and pending full restoration.  At their Riverhead facility, RMLI has a turntable that they purchased in 2002 from the upstate Arcade and Attica Railroad. This 85' turntable was built in 1915 and weighs 60 tons.  RMLI will have to dig a pit, build a round wall and install a circular ring rail in order to get the turntable operational.  The goal is to have steam locomotive trips between Riverhead and Greenport using Locomotive #39 with the ability to turn the locomotive at each of the terminals.  That will truly be an exciting Long Island tourist attraction.

Taking into consideration the foregoing, it is evident that there are presently no operational turntables viewable to the public on Long Island. The Morris Park turntable lies within a secure LIRR shop facility, out of reach of the public eye.  The two RMLI turntables are not yet operational.  That means if the Oyster Bay turntable is put into operation in the near future, it will be the only railroad turntable viewable to the Long Island public.  2008

Railroad historians role in preserving turntable history

A noted railroad historian and author, Vincent F. Seyfried, has often said, "If it weren't for the larceny of its own employees, the Long Island Rail Road would have no history."  Sadly, he is probably correct, although the "larceny" word should be considered as being used in a hyperbolic sense.  It is widely known in railroad history circles that the LIRR does not have a historic archives and most of the railroad's history lies in a few libraries and museums as well as being scattered in the hands of private collectors and railroad historians.  To that end, a wealth of thanks should go to persons who helped in the creation of this turntable history, to name a few:

Carl Dimino, retired LIRR Maintenance of Equip. Supervisor who also provided the Oyster Bay Historical Society with the only known railroad station pre-1964 interior floor plan.
Robert M. Emery, the late LIRR Conductor
Arthur Huneke,  retired LIRR Train Director who has an outstanding LIRR history website at: http://arrts-arrchives.com/
Dave Keller, LIRR Historian and author of two LIRR pictorial history books. His fine website may be seen at: http://www.trainsarefun.com/lirrphotos/lirrphotos.htm

Turning an Engine at Oyster Bay
CPA24-5-2402 on Turntable-Oyster Bay - 03-14-53 (Faxon-Keller) Seq 1.jpg (115394 bytes)
It's a cool March 14th, 1953 and FM CPA24-05 #2402 has just been cut off from its eastbound train at Oyster Bay and is now headed, with trainman riding the rear ladder, towards the turntable to be spun and headed in a westerly direction.  (Will Faxon photo, Dave Keller archive and data)
CPA24-5-2402 on Turntable-Oyster Bay - 03-14-53 (Faxon-Keller) Seq 1A.jpg (64802 bytes)
H
ere's a close-up showing the trainman in uniform and overcoat riding the rear ladder of the C-liner.
CPA24-5-2402 on Turntable-Oyster Bay - 03-14-53 (Faxon-Keller) Seq 2.jpg (104959 bytes)
The C-liner has just passed the photographer in its jaunt to the turntable. (Will Faxon photo, Dave Keller archive and data)
CPA24-5-2402 on Turntable-Oyster Bay - 03-14-53 (Faxon-Keller) Seq 3.jpg (102099 bytes)

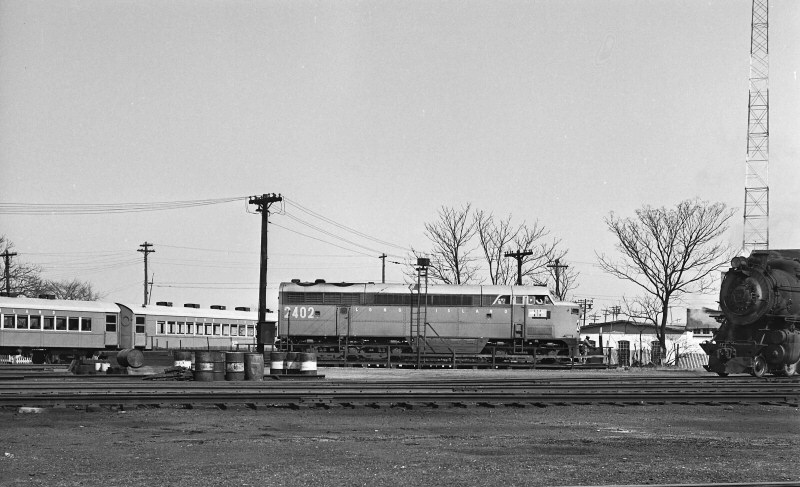

Already on the turntable, #2402 has b
egun to spin.  The hostler is operating the electric controls at the front end of the locomotive.  At the right, looking on, is G5s #38. (Will Faxon photo, Dave Keller archive and data)
CPA24-5-2402 on Turntable-Oyster Bay - 03-14-53 (Faxon-Keller) Seq 4.jpg (1212752 bytes)
#2402 has now spun about 90 degrees.  (Will Faxon photo, Dave Keller archive and data)
CPA24-5-2402 on Turntable-Oyster Bay - 03-14-53 (Faxon-Keller) Seq 5.jpg (125048 bytes)
And now we're almost back to the turntable access track. Once lined up, the hostler will give the engineer the go-ahead and he will take #2402 off the turntable, head back west and couple onto his train.  (Will Faxon photo, Dave Keller archive and da
ta)

Turntables
Babylon
1888 Hyde Map Turntable: Collection: Stony Brook, NY
Bay Ridge
62nd St. and 8th Ave location left: 1924 razed 1928, right: current 2009 view

Creedmoor: Apparently, when the line was cut back to Creedmoor, a turntable had been installed.  In May, 1882 an accident occurred at the turntable. Research/Photo: Art Huneke














The "heavyweight" locomotive #32 mentioned in the above article was, in actuality, not so much a "heavyweight" but a 4-4-0 American-type built by Schenectady (ALCO) in April, 1873.  After the LIRR's renumbering of locomotives in 1898, #32 became #15 and another 4-4-0 American-type, this time a class D52 built the same year as the renumbering, was assigned #32.  I gather the pre-1898 #32 appeared to be a "heavyweight" to the reporter, in 1882, when he compared it to his memory of the "Aerial" or "Post Boy!" Research: Dave Keller


Dutch Kills
Wheelspur Yard blueprint c1910 Archive: Art Huneke











 Dutch Kills turntable 10/1915 Archive: Art Huneke












Greenport
LI City:  Had several turntables

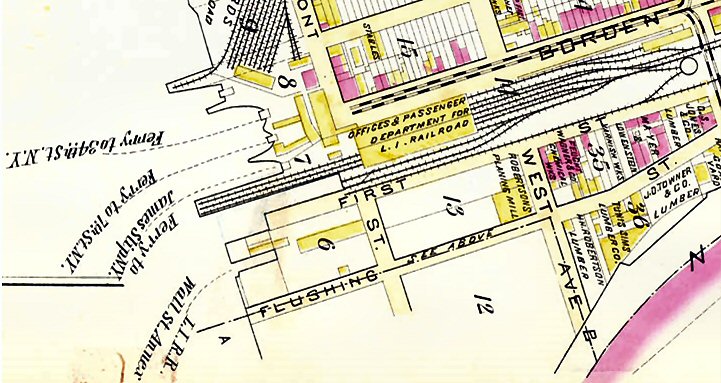

 LI City Passenger Yard turntable 1891










LI City Passenger Yard turntables 1903






Locust Valley:  When it was the end of the line
Manhattan Beach
Morris Park Shops:
All LIRR observation cars were turned on the table east of the Richmond Hill Storage Yard, and  west of the trainmen's building, on the north side of the Montauk branch embankment. Info: Dave Keller
Old Bethpage: For the Central RR of Long Island trains
Old Far Rockaway
Far Rockaway Turntable and Engine House blueprint 1907 Archive: Art Huneke












Old Flatbush Avenue
Old Hempstead
HempsteadBlueprint1892.JPG (62714 bytes)Hempstead Turntable blueprint 1892 Archive: Art Huneke









The Long Island's Hempstead branch terminated at Main St., Hempstead. (Main St. ran parallel with the LIRR's ROW)

The CRR of LI's Hempstead branch terminated at Fulton St., (Later Fulton Ave.) Hempstead, with terminal adjacent to the old Presbyterian Church. This line ran parallel one block over from the LIRR's ROW. When the LIRR acquired the CRR of LI, (1876) the Central's terminal facilities were much newer (1872) and of better construction (Stewart's
brick!) than the LIRR's (1839) so the LIRR abandoned and tore out THEIR terminal and took over the Central's terminal and used it instead. The Central's depot was replaced in 1913. The tracks were cut back to Columbia Street beginning in 1941 and the 1913 depot was moved back and relocated there in 1943.

Competition: The LIRR's branch from Mineola to Hempstead was constructed in 1839. The CRR of LI's branch to Hempstead was constructed in 1872. If anybody was looking for competition, it was A. T. Stewart, not the LIRR. They were there first . . . and for many years.  Research: Dave Keller

Old Jamaica:  Before the elimination (see bottom of page)
Oyster Bay
Patchogue:
South Side RR extension to Patchogue 1869, with turntable west of town ( west of River Ave), relocated by 1903 into main yard area by West Ave.
Port Jefferson:
  The turntable came out in 1922, the same year the wye was installed
Port Washington
Richmond Hill Storage Yard: After the elimination
Riverhead
Rockaway Park:

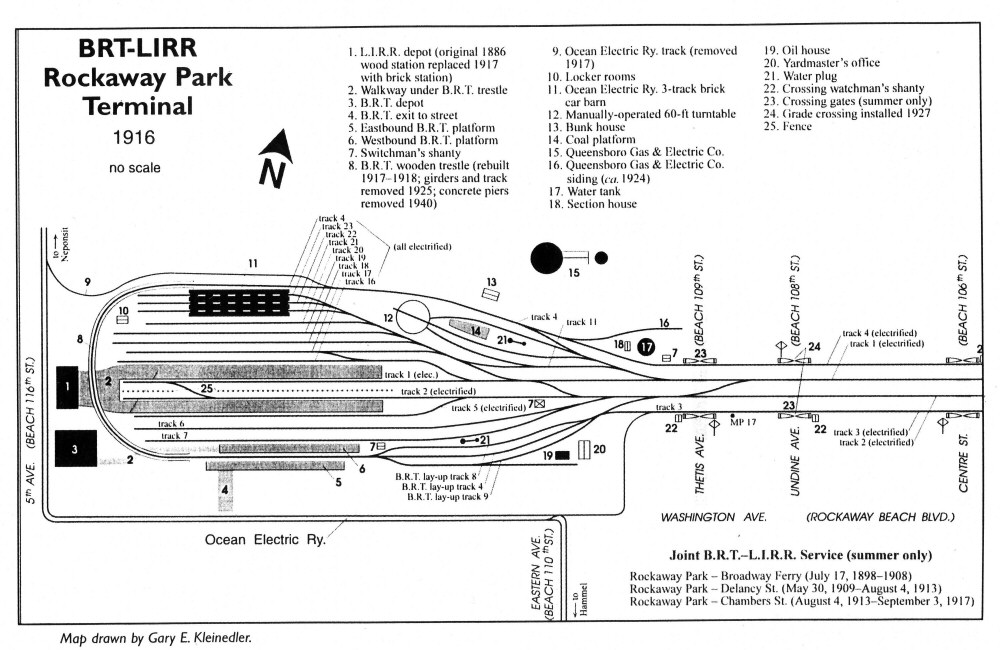

Rockaway Park map - LIRR-BRT joint service 1916 Archive: The Keystone











Sag Harbor
Whitestone Landing:
Steam ran on the Whitestone Branch  in the early years before the days of  MU's and there was a turntable and enginehouse.

Also, Turntables at:
Farmingdale: Opened c. 1842. That means it could have been a year earlier, perhaps. Conjecture only.  Would make sense if the end of track.

Fire Place (Carmen's River): There were various points along the way that were temporary ends of the line as construction was underway along the next section of ROW. Conjecture only.  Would make sense if the end of track.

Hicksville: Temporary end of the line in 1837. Conjecture only.  Would make sense if the end of track.

Note from Dave Keller: "... P.S. Better write this down. After I turn off my marker lights and leave for the big engine house, nobody will remember this stuff and urban legend will develop such as "all trains were backed up into Jamaica in steam days" or some such trash . . . "   Research: Dave Keller

Greenport



Aerial View 2011

Greenport yard and turntable view East
c. 1900+
Collection: Dave Morrison

LIRR FM#2002  02/22/1964
Photo: Robert B. Dunnet
Archive: Dave Keller

lirr210-C420_Greenport-turntable_4-27-66_ JimGillin.jpg (95796 bytes)
LIRR C420 #210 Greenport turntable 4/27/66 Photo/Archive: Jim Gillin



06-05-55 Fantrip
Collection: Art Huneke

06-05-55 Fantrip
Collection: Art Huneke

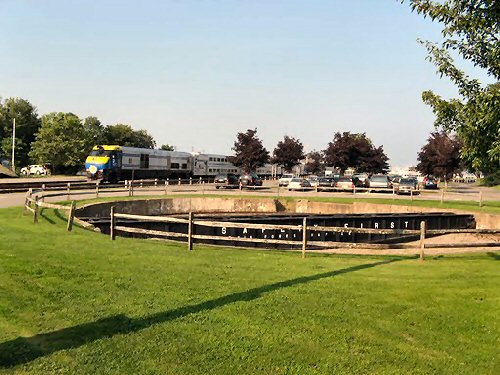

175th Anniversary Fantrip 07/25/09
Photo: Al Castelli



12-15-2004

Boy Scout Tony Breese, working on his Eagle Scout project, along with his entire troop, have cleaned and restored the Greenport turntable pit. After days of cleaning and landscaping the pit, yards and yards of GeoTex were spread and several inches of bluestone have been put down across the entire crater!  2006

175th Anniversary Fantrip 07/25/09
Photo: Neil Feldman
1.  Turntable 2. Freight House 3. Current Platform 4. Museum - ex. Pass Station
2006
LIRR #1556 c. early 1970's
Info/Collection: Tim Darnell


2/02/2008 Photo: Joe Sam

Railfan Extra on "Setauket" turntable  4/68
Archive: Dave Keller

Greenport Fan Trip  5/17/1970 The six "previously owned" lightweight passenger cars in the photo were recent acquisitions from B&O, FEC, NH, PRR and UP, for parlor car service. Locomotive 224 would have been turned on the turntable for the westward trip back to Jamaica or Long Island City. Info: Rich Glueck

  Patchogue
E7s Atlantic (4-4-2) 1940
on the turntable
LIRR #110 Built 1916
 ex-PRR 8610 Photo: c. 1928+
Oyster Bay
additional articles/photos
G5s-50-Turntable-Oyster Bay-10-1954 (Huneke).JPG (97408 bytes)
LIRR G5s #50 Oyster Bay turntable 10/1954 Photo: Art Huneke
Aerial View 2011
LIRR RS-1 #464 Oyster Bay turntable c. Dec. 1964+



RS1 #462 -1950
J. P. Sommer photo, Dave Keller archive
Photo: Friends of Loco #35, Inc.
Oyster Bay Turntable - view south
Turntable-Oyster Bay-1952-1.jpg (72249 bytes)
1952 Photo: J. P. Sommer  Archive: Dave Keller
Turntable-Oyster Bay-1952-2.jpg (78210 bytes)
1952 Photo: J. P. Sommer  Archive: Dave Keller
Turntable-Oyster Bay-1952-3.jpg (73482 bytes)
1952 Photo: J. P. Sommer  Archive: Dave Keller
Alco #211 04/02/1965
Photo 04/02/1965
Photo 04/02/1965

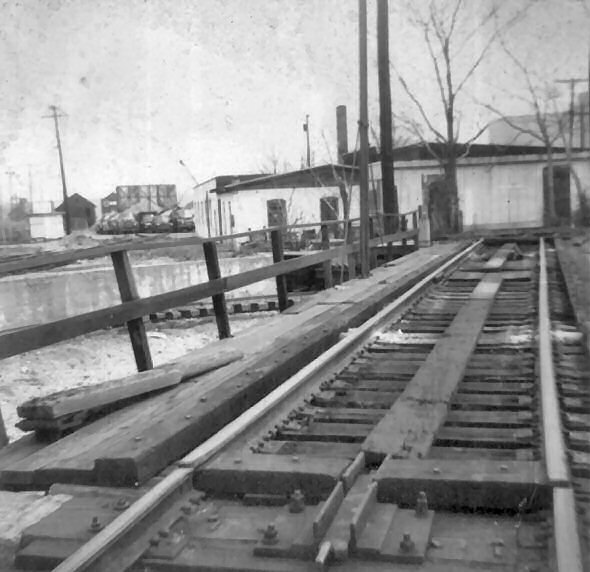

Oyster Bay Turntable Alco C420 #211  04-02-1965  Photos: Pat Scopelliti

Oyster Bay Turntable Alco C420 #208 04/68 Photo: Unknown
LIRR # 207 c. early 1970's
Info/Collection: Tim Darnell

Oyster Bay Turntable  07/11/09
Photo: Steve Rothaug

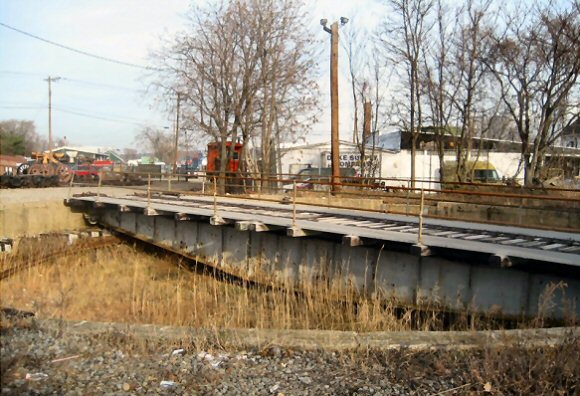

Oyster Bay Turntable  01/08/2008
Photo: Dave Morrison

Oyster Bay Turntable  08/08/09
Photo: Steve Rothaug

  Morris Park
Morris Park Yard c. 1906 postcard
Collection: Dave Morrison
lirr141-G53sd_4-6-0_built-1917-Brooks_Morris-Park-Turntable_01-16-1949_Rugen-Huneke.jpg (105358 bytes)
LIRR #141 G53sd 4-6-0 built 1917 by Brooks Morris Park turntable 01/16/1949
Photo: Bill Rugen Archive: Art Huneke

G5s on Morris Park Shops turntable entering roundhouse - Summer 1932
Archive: Dave Keller
LIRR FM CPA20-5 #2006 c.1955
Collection:  Dave Keller
LIRR #398, 105, 611, 601, 617, 618 view NE 1979 Photo: Art Huneke

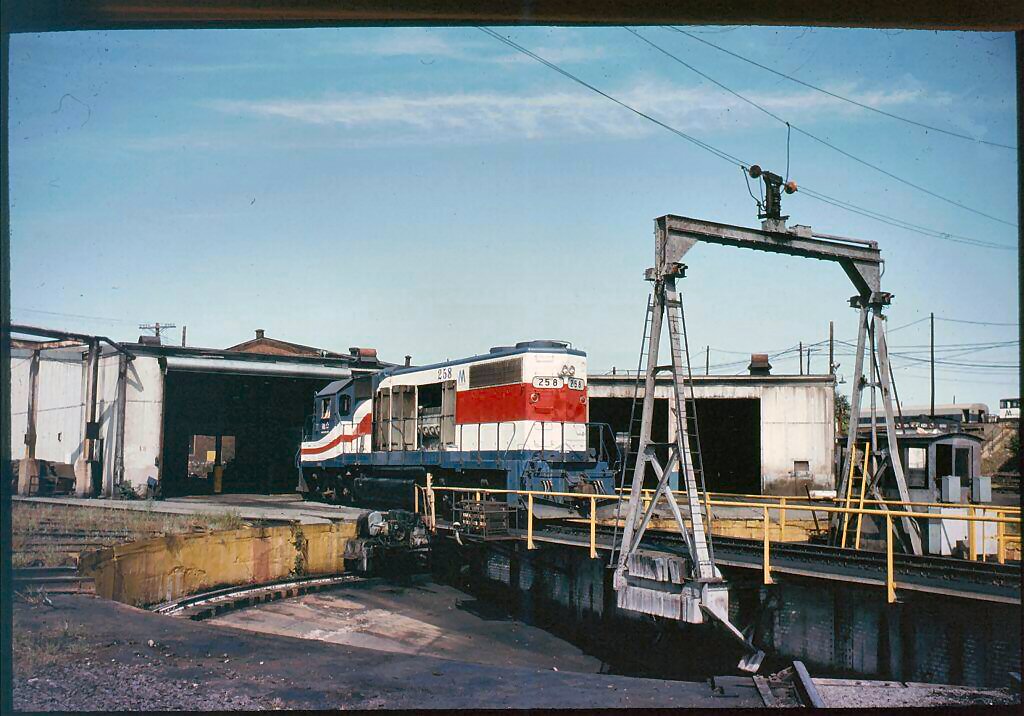

L258-Morris Park.jpg (158140 bytes)
LIRR #258 c. 1970's
Photo: Steve Hoskins
LIRR #619 10-28-89
Photo: Albert Castelli
LIRR #154 Morris Park 10/31/1985 Photo: Art Huneke
LIRR C420 #222
Tour 06-06-87
Photo: Albert Castelli
Morris Park Roundhouse
Photo: Steve Hoskins
Turntable Lead Track
Photo: Steve Hoskins
Fan Trip c. 1970's
LIRR #398 c. 1970's
Photo: Steve Hoskins
Riding transfer table.jpg (76256 bytes)
LIRR #399 on Transfer Table c. 1970's
Photo: Steve Hoskins
LIRR #208 1966
Collection:  Dave Keller

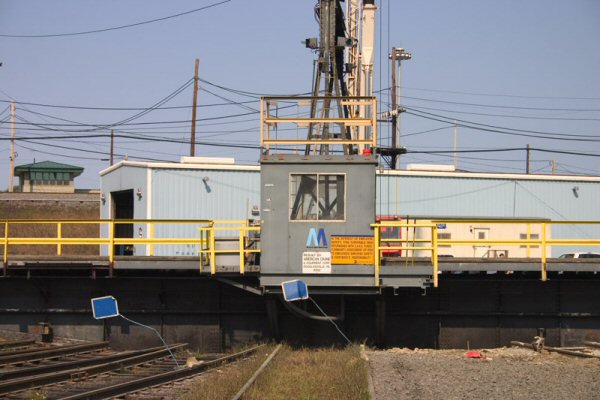

Morris Park received a new
center casting today  09-17-06
Photo: Joe Tischner
Center casting upclose  09-17-06
Photo: Joe Tischner
Bethpage  - CRR of LI
Historic Site Maker  09-01-06
Photo: Pat Masterson
Central Railroad of LI
Turntable remains
Collection: Dave Morrision
Central Railroad of LI
Turntable wall remains
Collection: Dave Morrision
LI City - Wheelspur Yard
 Wheelspur Yard, LI City - Turntable, Coaling Tower
early 1900s view W
LIC Turntable - 1921.jpg (77702 bytes)

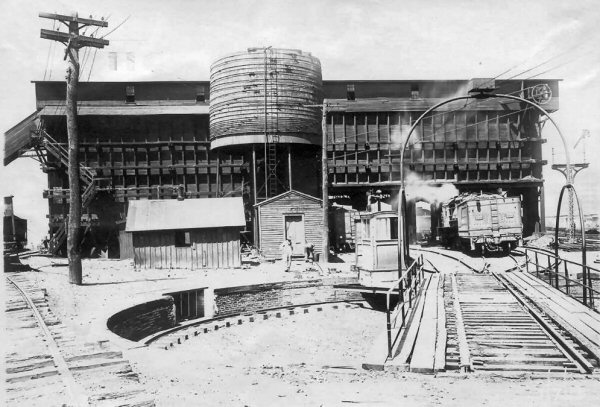

Wheelspur Yard, LI City - Turntable, Coaling Tower
1921 view W L
IRR Valuation Collection: Dave Morrison
Jamaica, NY
LIRR 4-4-0 Atlantic #46 on  turntable perhaps
Washington St., Jamaica, NY c.1880

4-4-0 No. 524 being turned on turntable - Washington St. Jamaica- View W 1904 Archive: Dave Keller


Jamaica turntable - Section House 1911 Archive: Art Huneke



What's unique about this structure is that the access track to the shanty  was the turntable lead at one time.  The turntable track and girder support has been removed and the section house built ATOP the truncated end of the stubbed-out turntable lead, to allow the handcar to be set on tracks inside the building in the direction of travel instead of being alongside the tracks at a 90 degree angle and having to be manhandled out front onto the tracks whenever the car needed to be used.  Info: Dave Keller
